Kurt VersatileLock 8″ Hydraulic Reverse Vise – 3810H
Part No. 3810H
$3,631.00
Hydraulic VersatileLock Reverse 8″ Vise. The VersatileLock® vise is the industry’s ultimate single station CNC vise. It offers ultra-precise functionality through these important design features: The original, time proven Kurt® AngLock® design prevents parts from lifting upward under heavy clamping loads.
Description
Description
The VersatileLock® vise is the industry’s ultimate single station CNC vise. It offers ultra-precise functionality through these important design features: The original, time proven Kurt® AngLock® design prevents parts from lifting upward under heavy clamping loads. The “pull-type” jaw clamping reduces stationary jaw deflection by at least 80%. The one-piece vise body and stationary jaw provide greater strength while reducing weight. The hydraulic functionality allows the vise to open and close quickly and easily.
The use of the VersatileLock in this configuration provides the added benefit of easier part programming in the positive direction “Y axis.” It also reduces the “reach-over” distance making part loading safer and easier for the operator.
3810H VersatileLock® Vise Features
- Full 10″ opening
- Can be mounted on either side
- Matched stationary jaw to keyway including body height ±0.001″
- 0.0005″ clamping repeatability
- All hydraulic units feature a 1/4″ vise stroke
- Est. Shipping Wt. 155lbs.
- Sine key or fixture key compatible

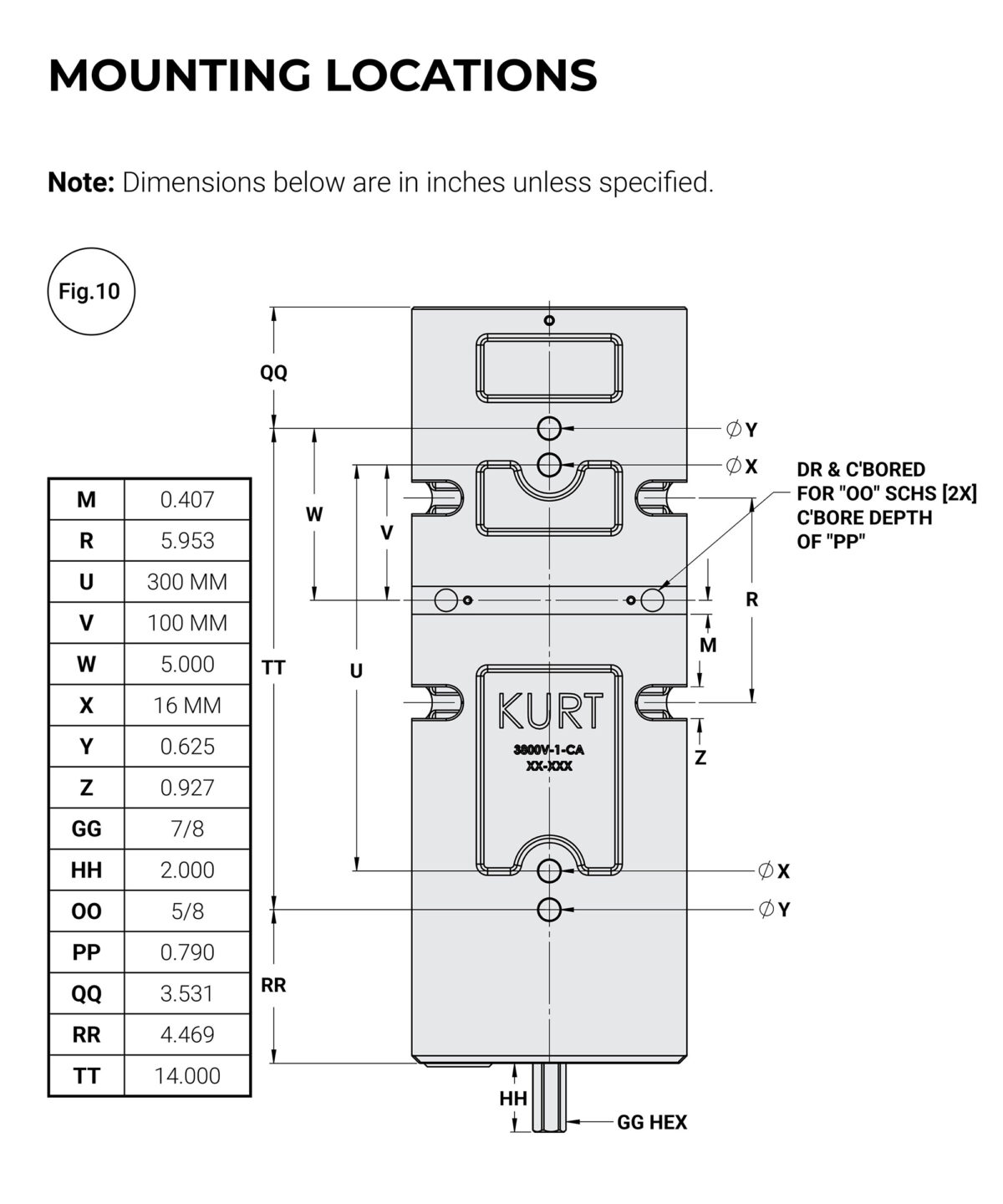

Mounting Instructions
Resources
Resources

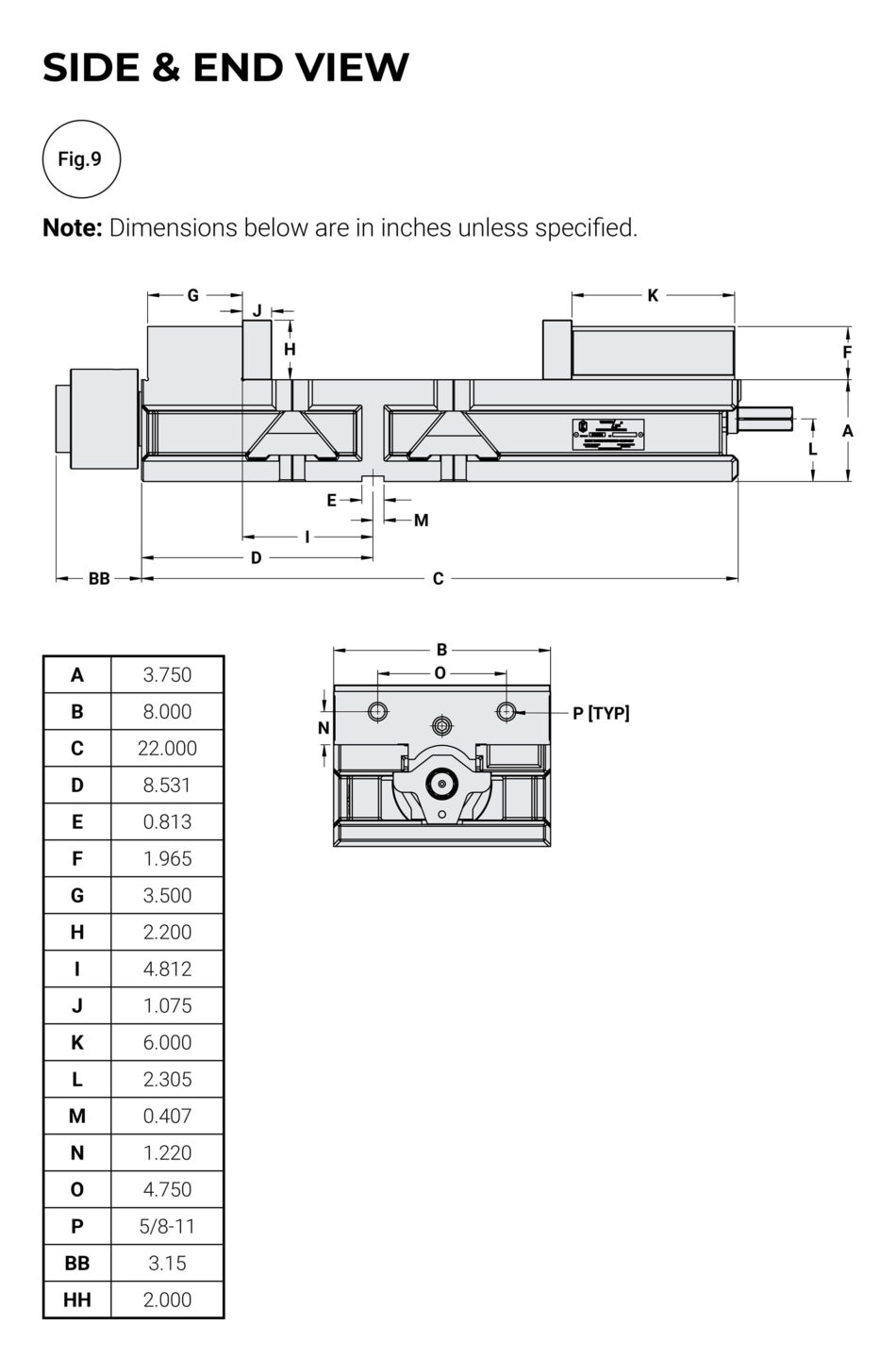

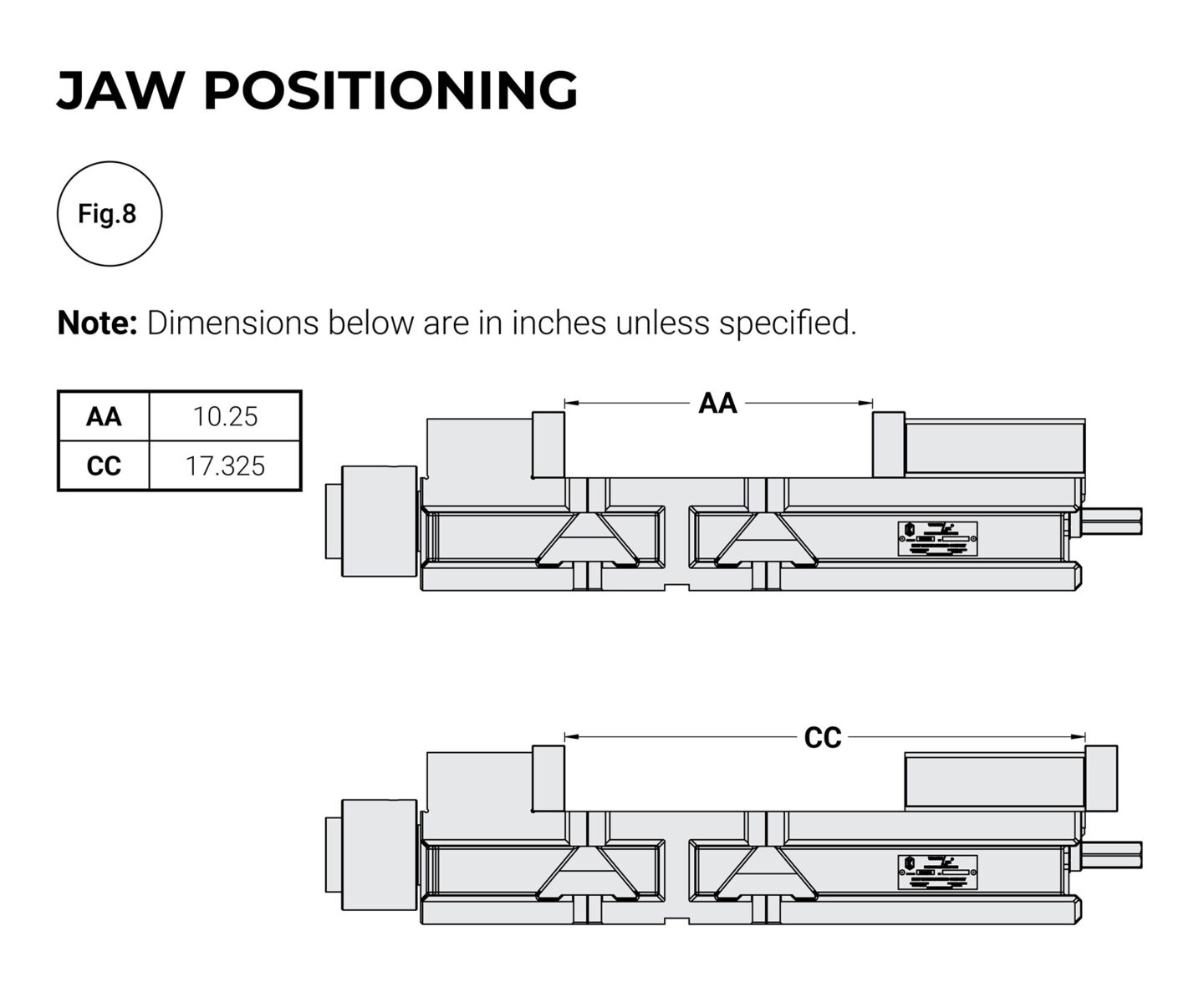

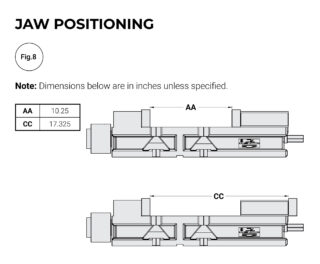

Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
Torque Ft-Lbs | Force in lbs. |
10 | 600 |
20 | 1,000 |
30 | 1,600 |
40 | 2,000 |
50 | 2,600 |
60 | 3,450 |
70 | 4,050 |
80 | 5,100 |
90 | 6,150 |
100 | 6,550 |
Hydraulic PSI | Force in lbs. |
500 | 1,500 |
1,000 | 3,000 |
1,500 | 4,500 |
2,000 | 6,000 |
2,500 | 7,500 |
3,000 | 9,000 |
3,200 | 11,000 |
