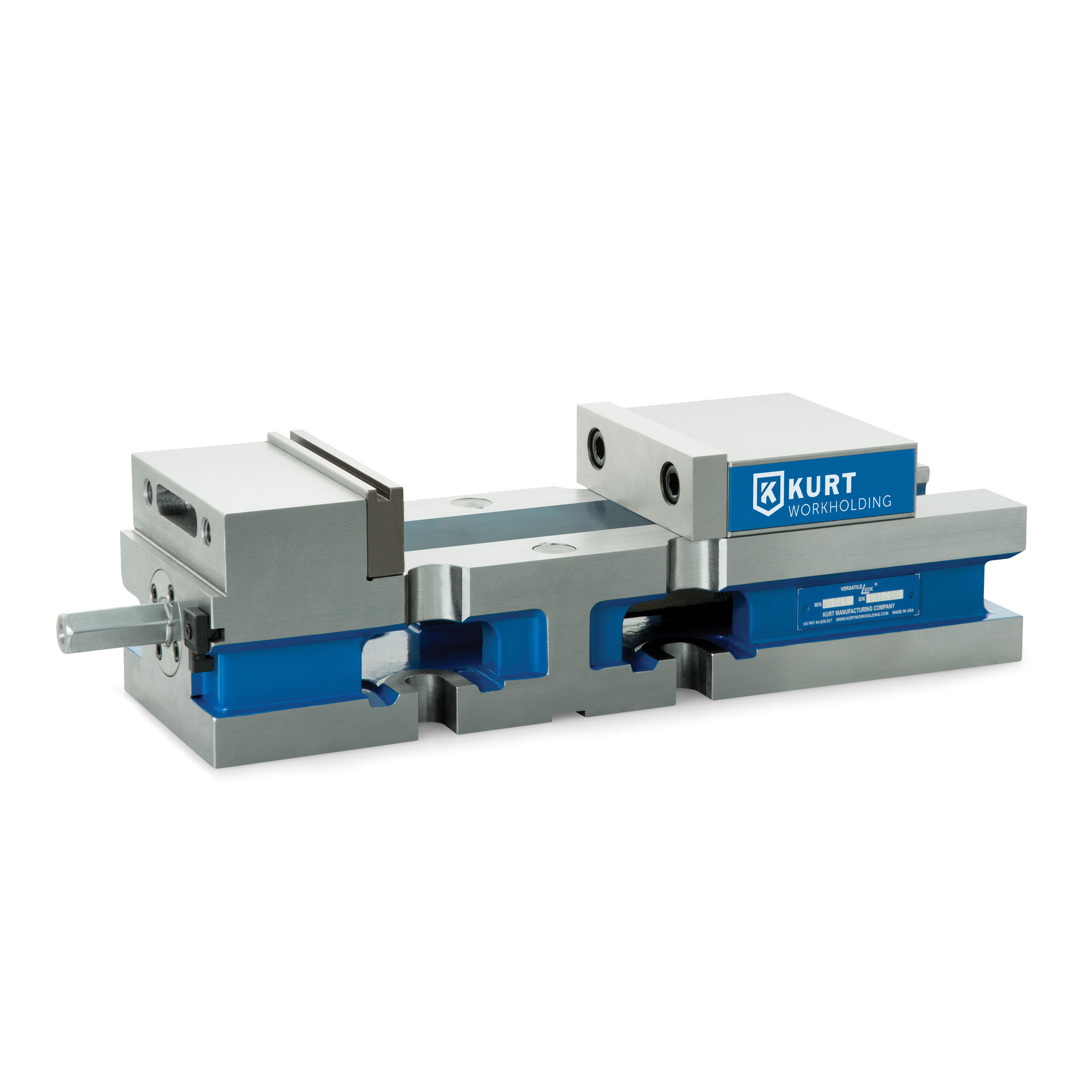

Kurt VersatileLock Reverse Vise – 3410V
Part No. 3410V
$1,309.00
The Kurt 3410V VersatileLock® 4-inch reverse manual vise is the industry’s ultimate single station CNC vise featuring ultra-precise functionality with AngLock® design to prevents parts from lifting upward under heavy clamping loads.
Description
Description
The VersatileLock® vise is the industry’s ultimate single station CNC vise. It offers ultra-precise functionality through these important design features: The original, time proven Kurt® AngLock® design prevents parts from lifting upward under heavy clamping loads. The “pull-type” jaw clamping reduces stationary jaw deflection by at least 80%. The one-piece vise body and stationary jaw provide greater strength while reducing weight.
The use of the VersatileLock in this configuration provides the added benefit of easier part programming in the positive direction “Y axis.” It also reduces the “reach-over” distance making part loading safer and easier for the operator.
Features of 3410V VersatileLock Vises
- Full 6″ opening
- Can be mounted on either side
- Matched stationary jaw to keyway including body height ±0.001″
- 0.0005″ clamping repeatability
- Footprint is less than 13″, ideal for smaller machines
- All hydraulic units feature a 1/4″ vise stroke
- GrooveLock® workstop included
- Sine key or fixture key compatible

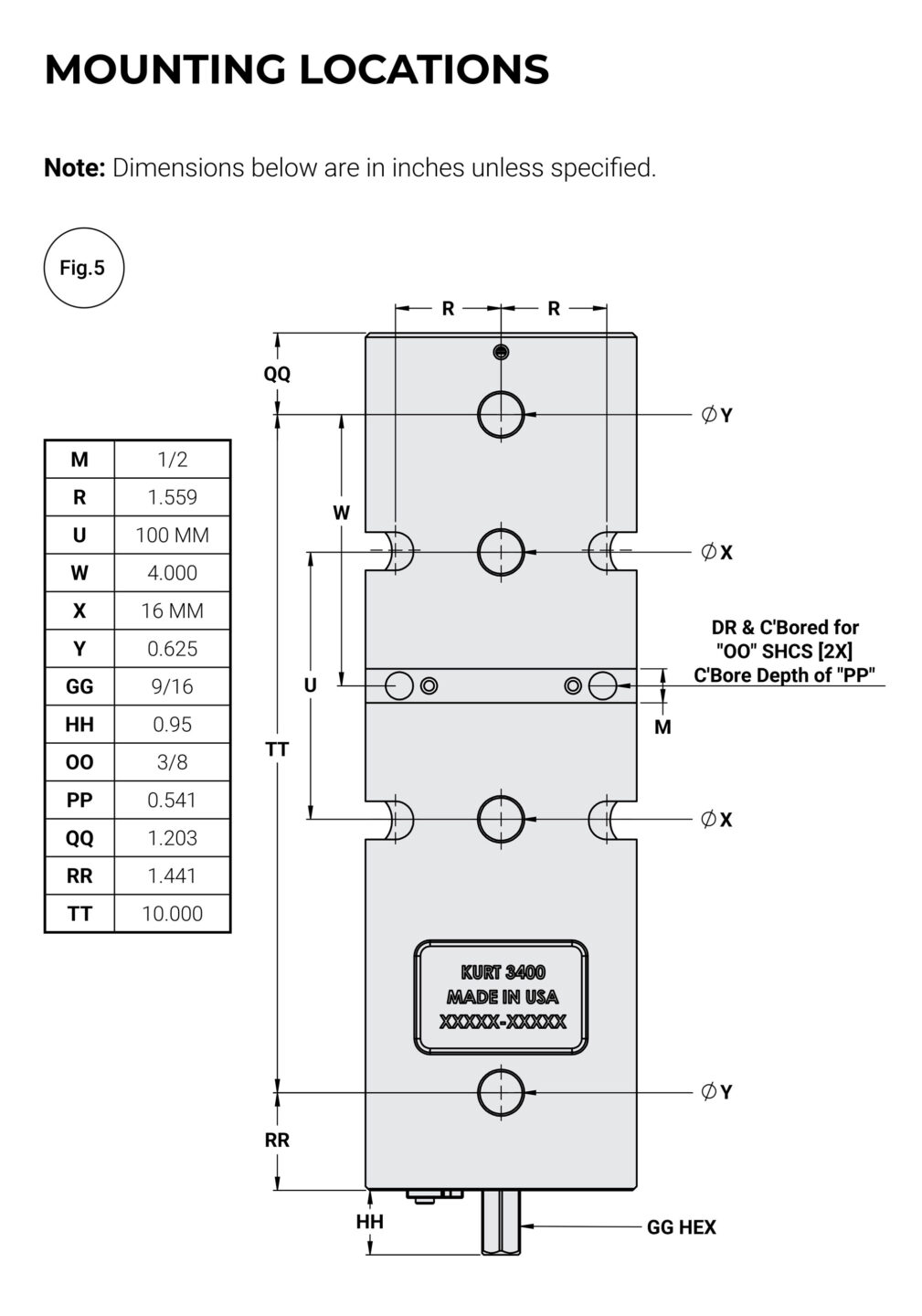

Mounting instructions
Resources
Resources

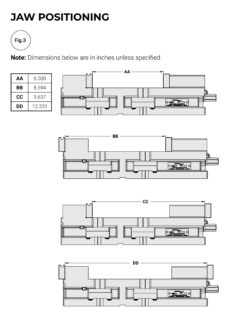

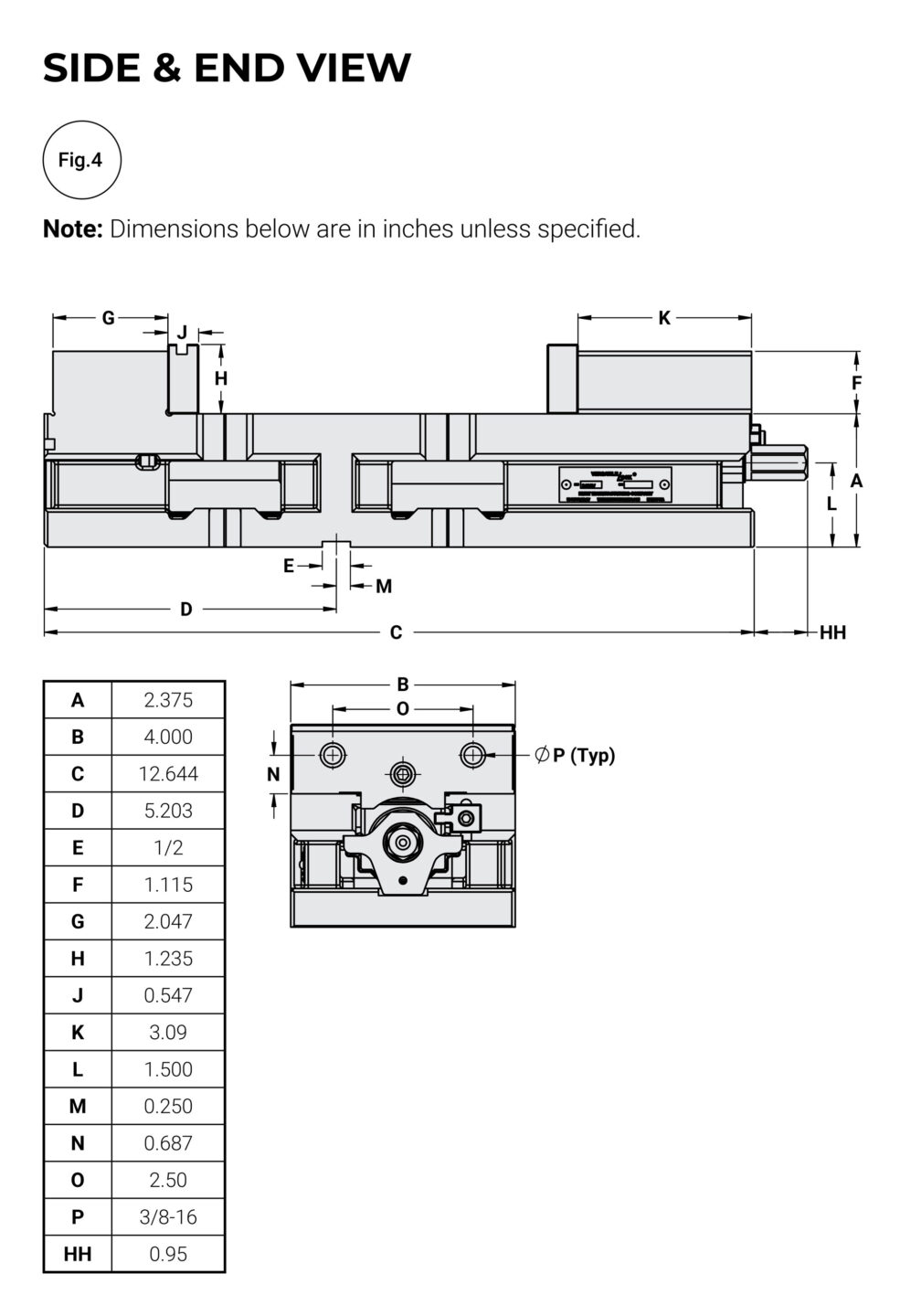

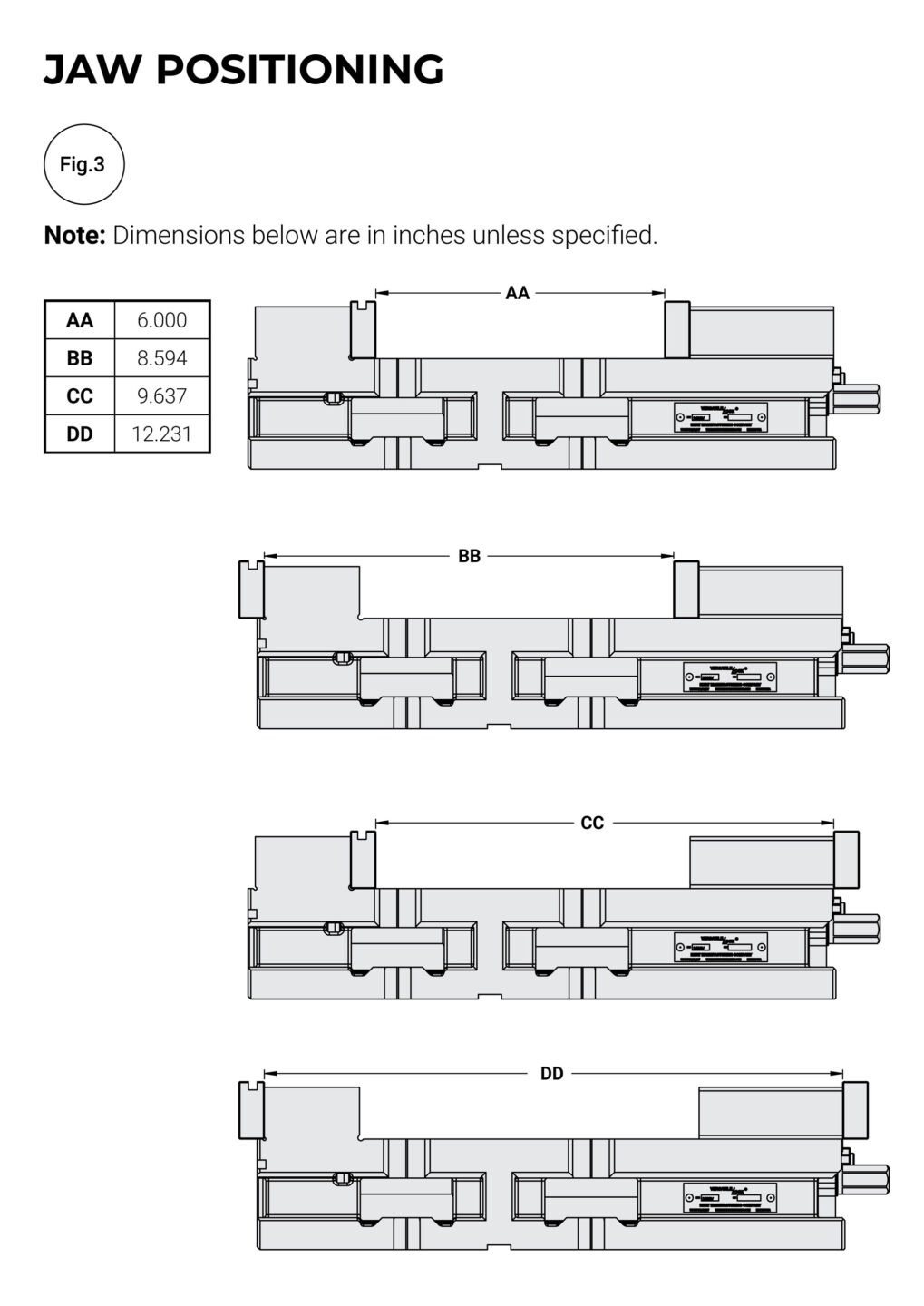

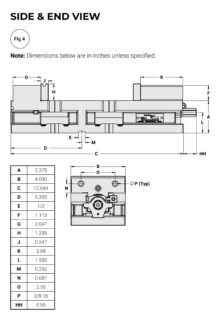

Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
Torque Ft-Lbs | Force in lbs. |
10 | 1,050 |
20 | 2,200 |
30 | 3,450 |
40 | 4,650 |
50 | 6,250 |
60 | 7,500 |
Videos
Videos
Products We Recommend
Products We Recommend
You may also like…
-
Kurt Sine Key 1/2 x 9/16 inch – SKOA8.9
SKOA8.9
$77.00 -

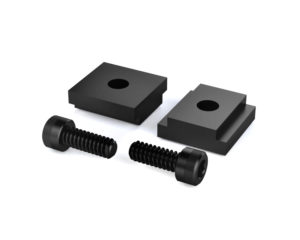

Kurt 4″ D-Series Fixture Key Set 1/2 inch x 18mm – D30-33M18
D30-33M18
$121.00 -
Kurt Sine Key 7/8 x 1 inch – SKOA14.16
SKOA14.16
$77.00 -
Kurt Sine Key 5/8 x 11/16 inch – SKOA10.11
SKOA10.11
$61.00 -
Kurt Sine Key Round and Diamond 5/8 inch – SKOA10RD
SKOA10RD
$77.00 -
Kurt Sine Key 18mm x 20mm – SKOAM18.20
SKOAM18.20
$69.00 -
Kurt Sine Key 3/4 x 13/16 inch – SKOA12.13
SKOA12.13
$77.00 -

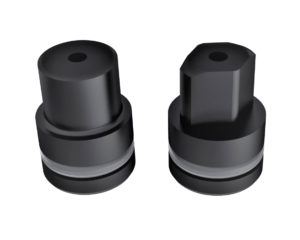

Kurt Sine Key Round and Diamond 1/2 inch – SKOA8RD
SKOA8RD
$77.00 -

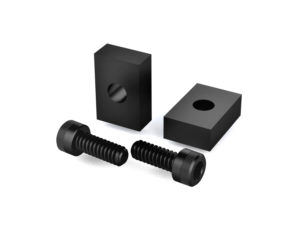

Kurt 4″ D-Series Fixture Key Set 1/2 inch – D30-50
