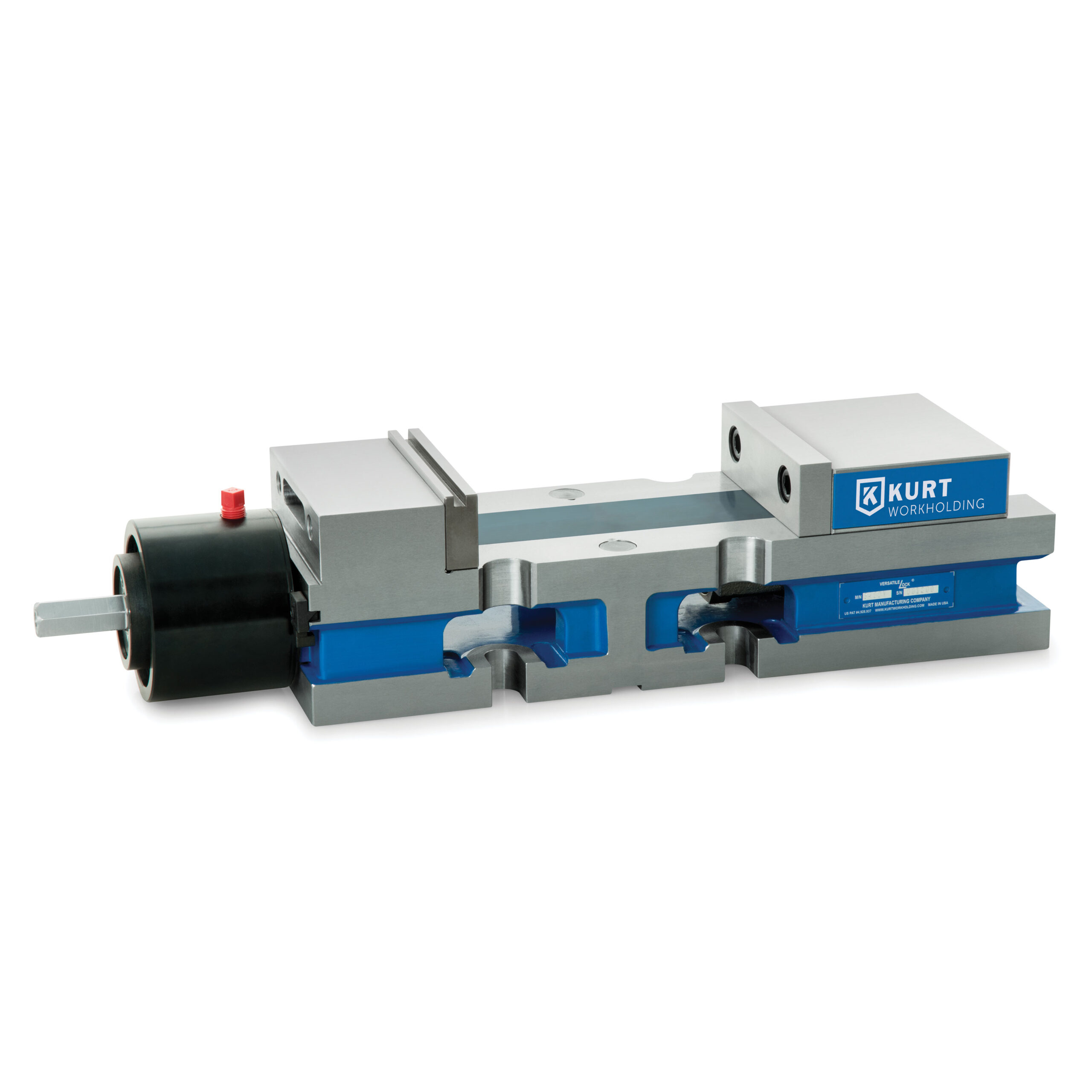

Kurt VersatileLock® 4″ Hydraulic Reverse Vise – 3410H
Part No. 3410H
$2,216.00
Description
Description
The VersatileLock® vise is the industry’s ultimate single station CNC vise. It offers ultra-precise functionality through these important design features: The original, time proven Kurt® AngLock® design prevents parts from lifting upward under heavy clamping loads. The “pull-type” jaw clamping reduces stationary jaw deflection by at least 80%. The one-piece vise body and stationary jaw provide greater strength while reducing weight. The hydraulic functionality allows the vise to open and close with a simple push of a button.
The use of the VersatileLock in this configuration provides the added benefit of easier part programming in the positive direction “Y axis.” It also reduces the “reach-over” distance making part loading safer and easier for the operator.
Features of 3410H VersatileLock Vises
- Full 6″ opening
- Can be mounted on either side
- Matched stationary jaw to keyway including body height ±0.001″
- 0.0005” clamping repeatability
- Footprint is less than 13”, ideal for smaller machines
- All hydraulic units feature a 1/4″ vise stroke
- GrooveLock® workstop included
- Sine key or fixture key compatible

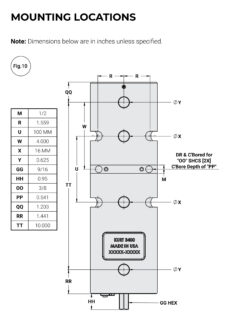

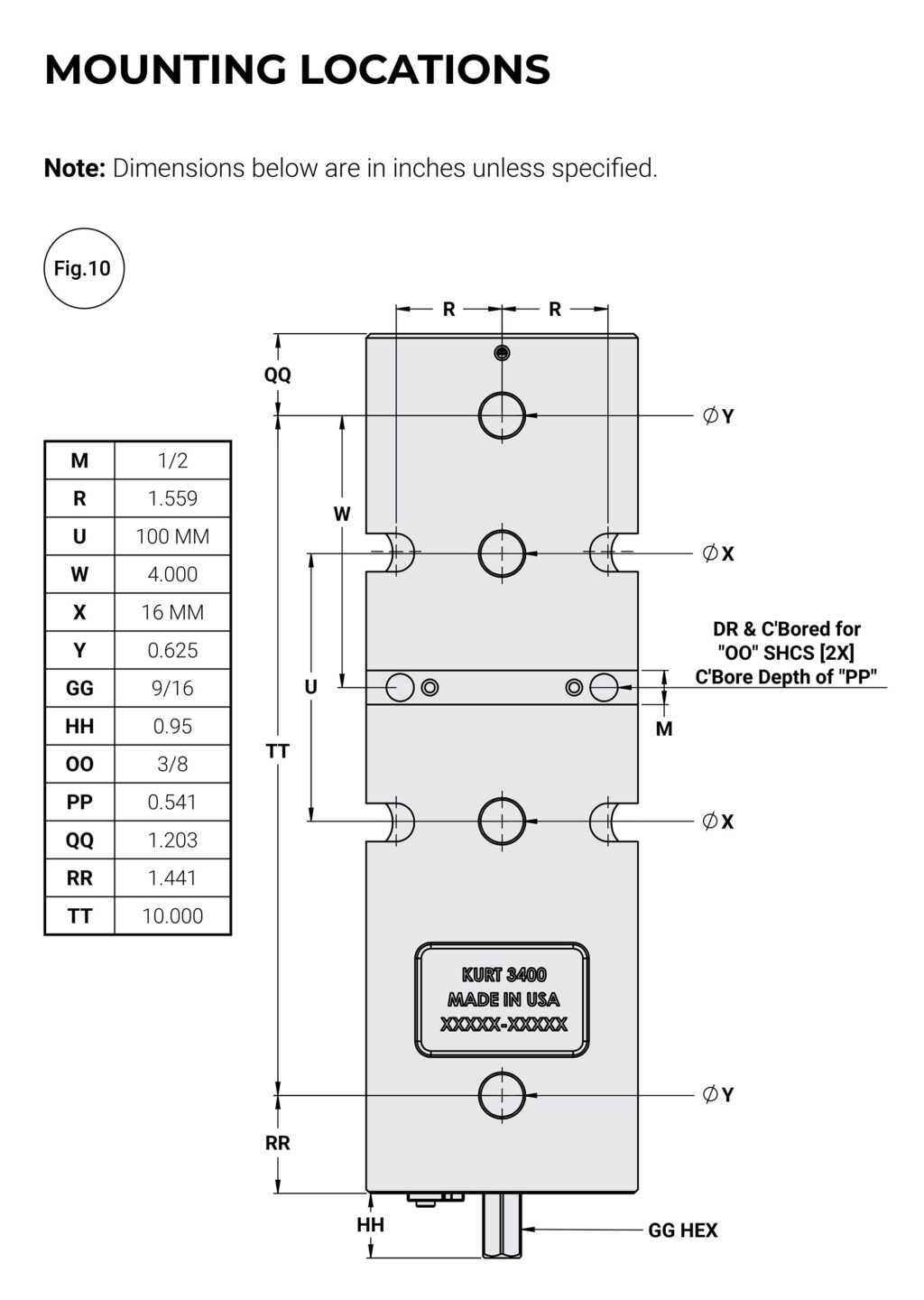

Mounting Instructions

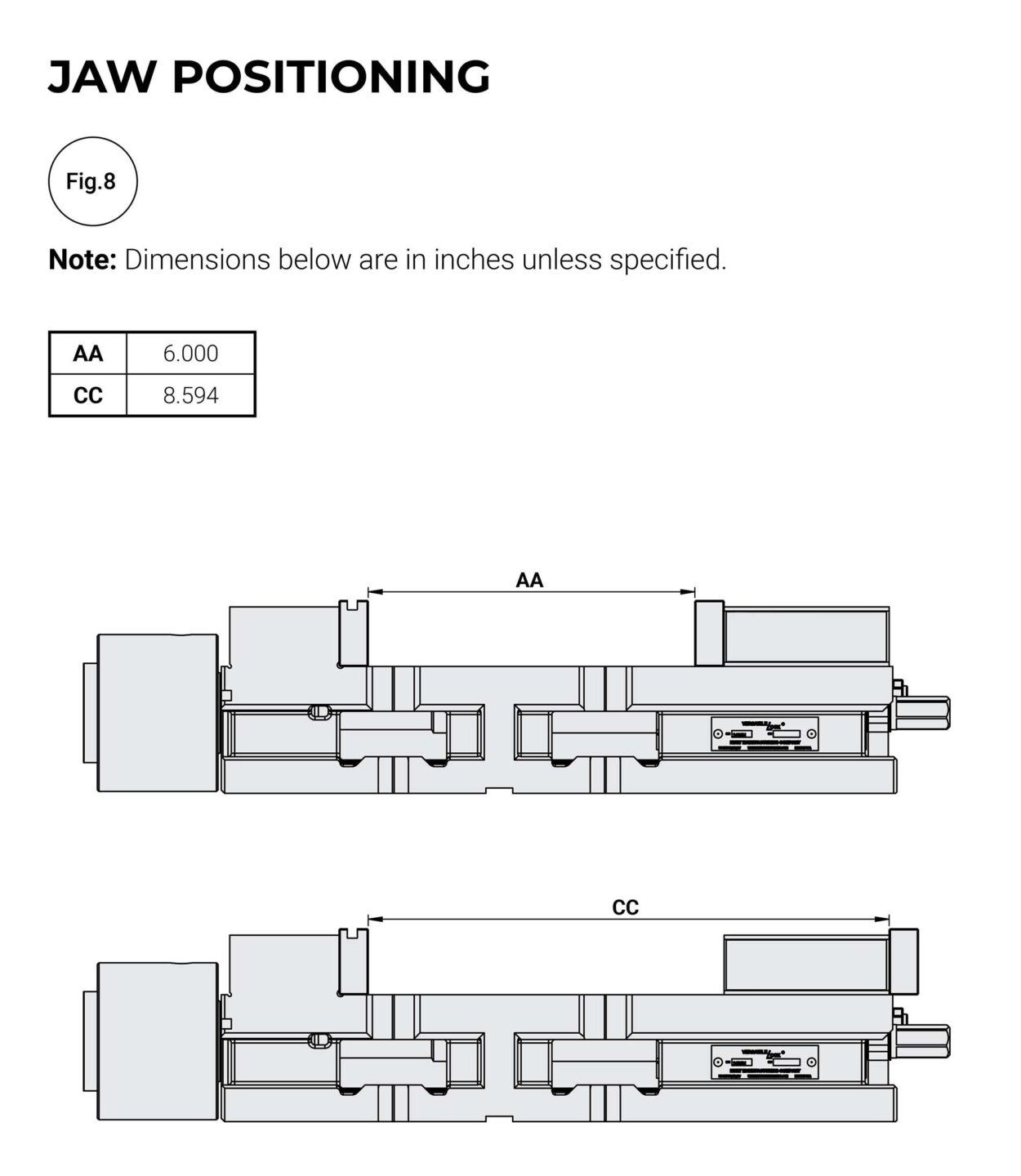

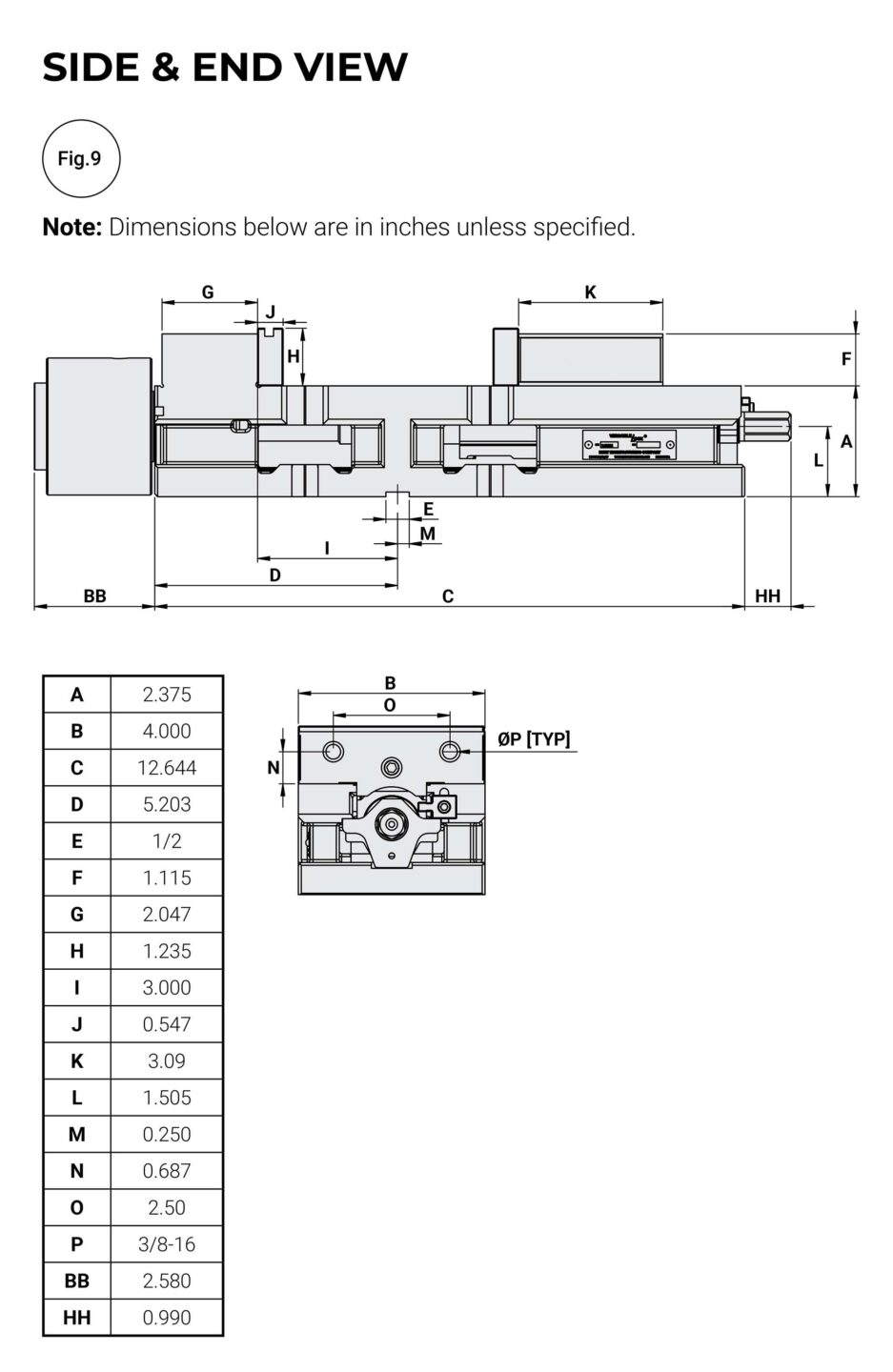

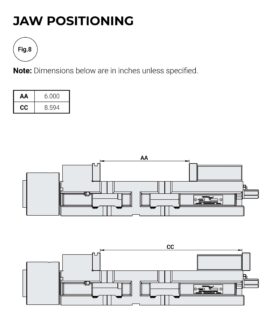

Dimensional Data
Dimensional Data
3410V/H | |
A | 2.375 |
B | 4.000 |
C | 12.644 |
D | 3.000 |
E | 0.5005 |
F | 1.115 |
G | 2.047 |
H | 1.235 |
J | 0.547 |
K | 3.090 |
L | 1.505 |
M | 4.000 |
N | 0.687 |
O | 2.500 |
P | 3/8-16 |
Q | 100MM |
R | 4.000 |
S | 2.000 |
T | 10.000 |
U | 0.563 |
V | 1.341 |
W | 9/16 |
X | 5.203 |
Y | 0.031 |
Z | 4.000 |
AA | 6.000 |
BB | 8.594 |
CC | 9.637 |
DD | 12.231 |
EE | 2.580 |
FF | 1.275 |
GG | 2.937 |
MM | 1.500 |
NN | 0.2503 |
OO | 3/8 |
PP | 0.541 |
0.6253 | |
RR | M16 |
SS | 1.558 |
