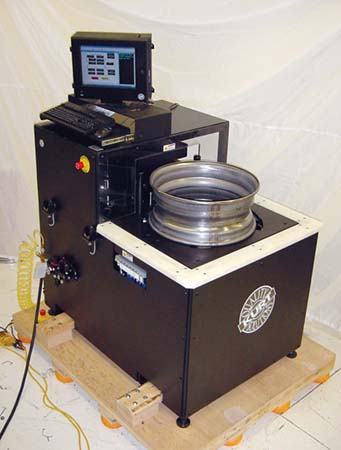

Kurt Truck Rim Gage – Semiautomatic Custom Gage
Custom gages can be made with the flexibility to measure a wide range of features and include extremely tight tolerance GD&T characteristics.
Request a Quote
Part assist loading into nest
0.030″ TIR Radial runout of both beads
0.030″ TIR Axial runout of both beads
0.005 Parrallelism of both beads
0.015″ Diameter of beads
0.040 Circumference of beads
20 second cycle time for 25″ rim
Automatic changeover axial and radial locations for 4 parts
