Kurt TL6SCS TriLock Short Vise – CARVESMART Jaws
Part No. TL6SCS
$2,695.00
NEW! Short-body TriLock double-station vise with 3-in-1 design—converts into two additional single station vise sizes—includes CARVESMART movable and stationary jaws with two sets of aluminum soft jaw plates. Only 19-inches long.
Description
Description
TL6SCS SHORT VISE MODEL – NOW AVAILABLE!

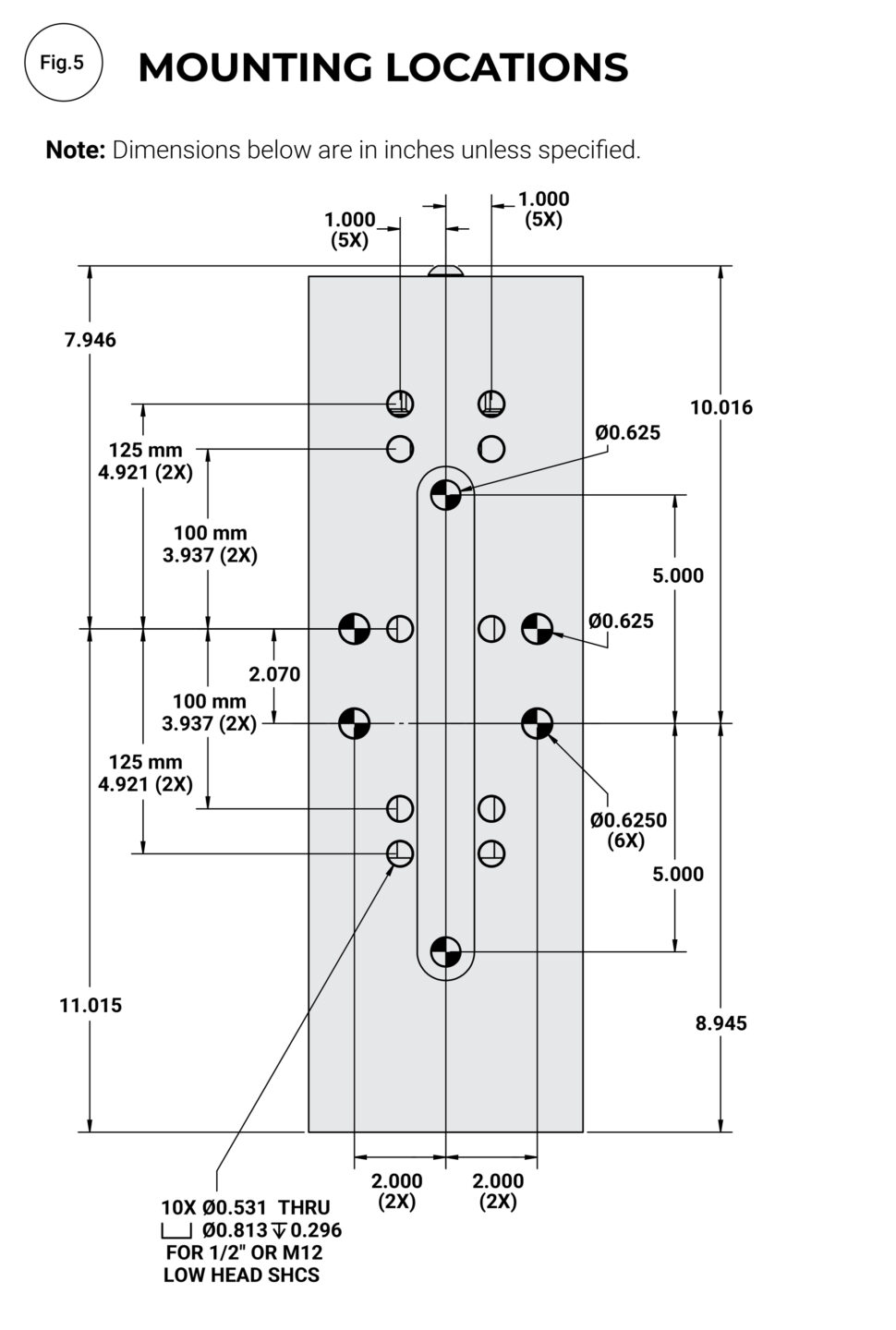

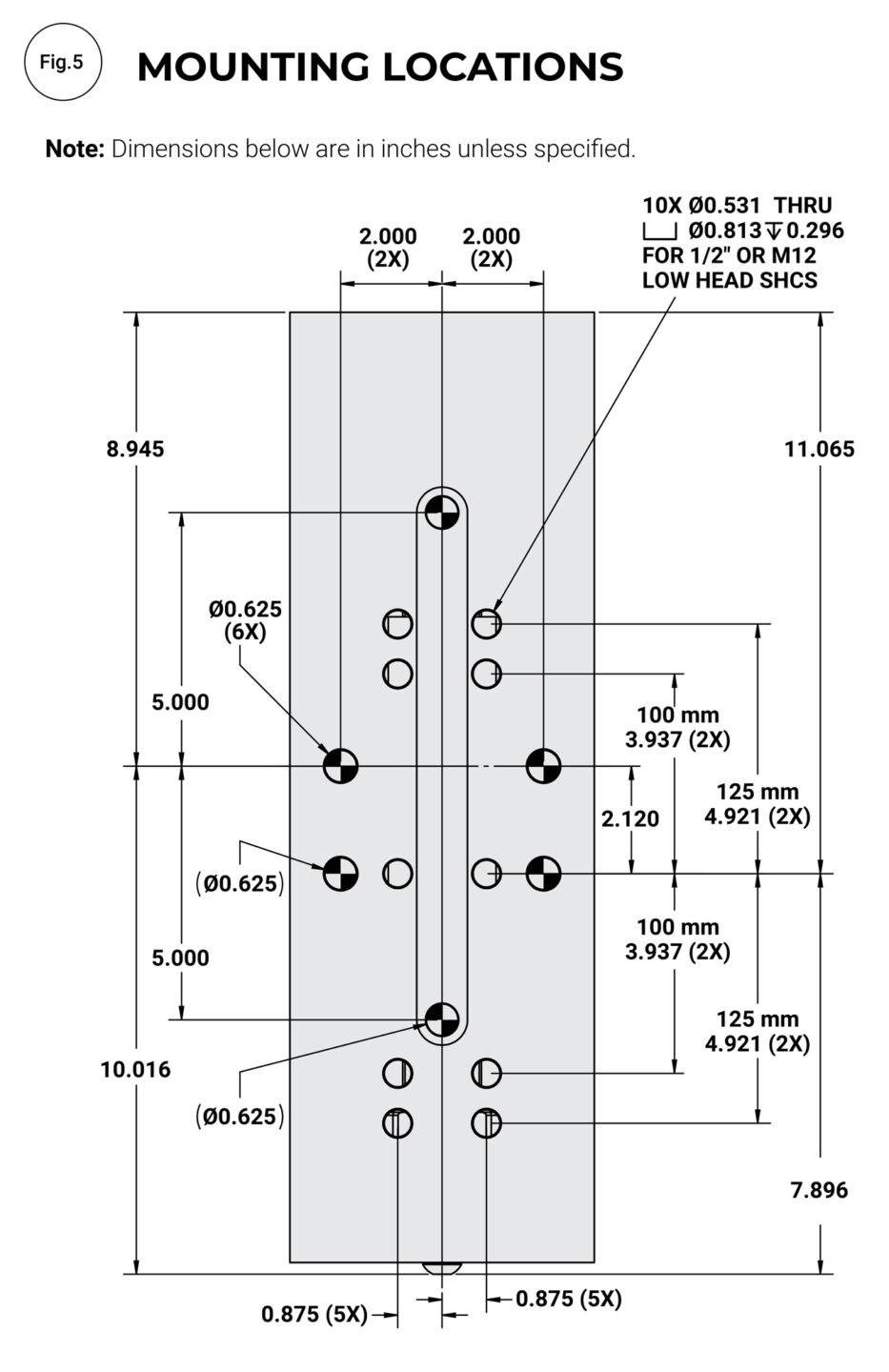

The NEW TL6SCS TriLock with CARVESMART™ 6-inch short vise is part of the revolutionary vise lineup transforming modern workholding. At only 19 inches long, the new short model, fits a wide range of small machine tables from Haas, Mazak, Brothers and more. With the short body design and through-body mounting for 125 mm or 100 mm T-slot spacing, it’s possible to mount as many as 4 vises on a single machine table with the potential to hold 16 or more parts at once.
Search other CARVESMART jaw plates here –>
TL6SCS 3-in-1 TriLock Design

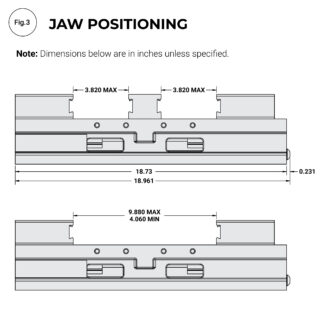

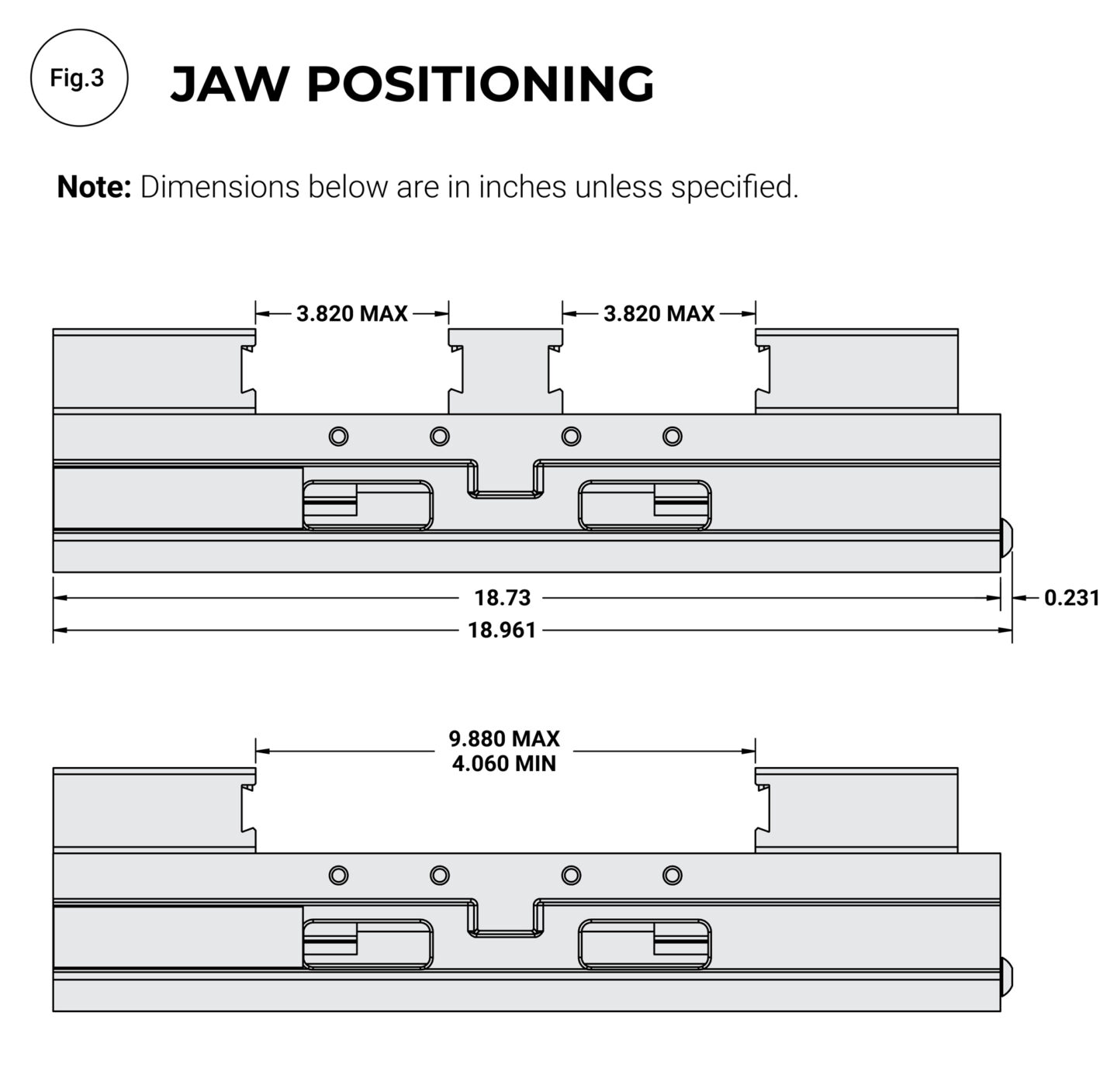

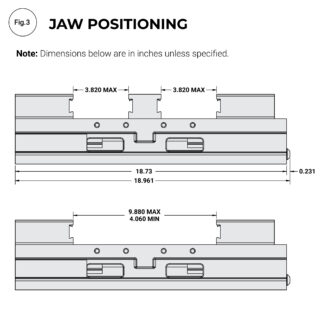

TriLock vises are designed to quickly transform between three vise configurations: a single-station vise large enough for a 2.82-inch part, a double-station vise with as much as 2.82-inches of part capacity on each side, and a large or a large single-station vise that can hold parts as large as 8.88-inches wide. The friction block or “Third Hand” feature allows the nut and screw assembly to move freely within the base of the vise while cleaning or changing vise configurations. This feature also works on horizontal machines and is especially useful for TriLock with CARVESMART Towers.
Features & Benefits
- Short vise configuration is only 19-inches long.
- Fits smaller CNC machines to greatly expand capacity.
- Save money and setups with 3-in-1 vise design.
- TriLock vises can be torn down for cleaning in just minutes.
- Vise is lighter and easy for one person to install or move when disassembled for cleaning.
- CARVESMART jaws come in multiple sizes and styles and can be ordered in bulk lengths.
- CARVESMART SmartStopped jaws have locating pins for easy repeatability.
- Space-saving design allows multiple vises to be mounted side-by-side in a machine.
- TriLock TL6SCS includes two sets of CARVESMART 3/4″ x 2″ x 6″ soft jaws.
- Includes internal-hex vise handle and 2 hex wrenches.
Resources

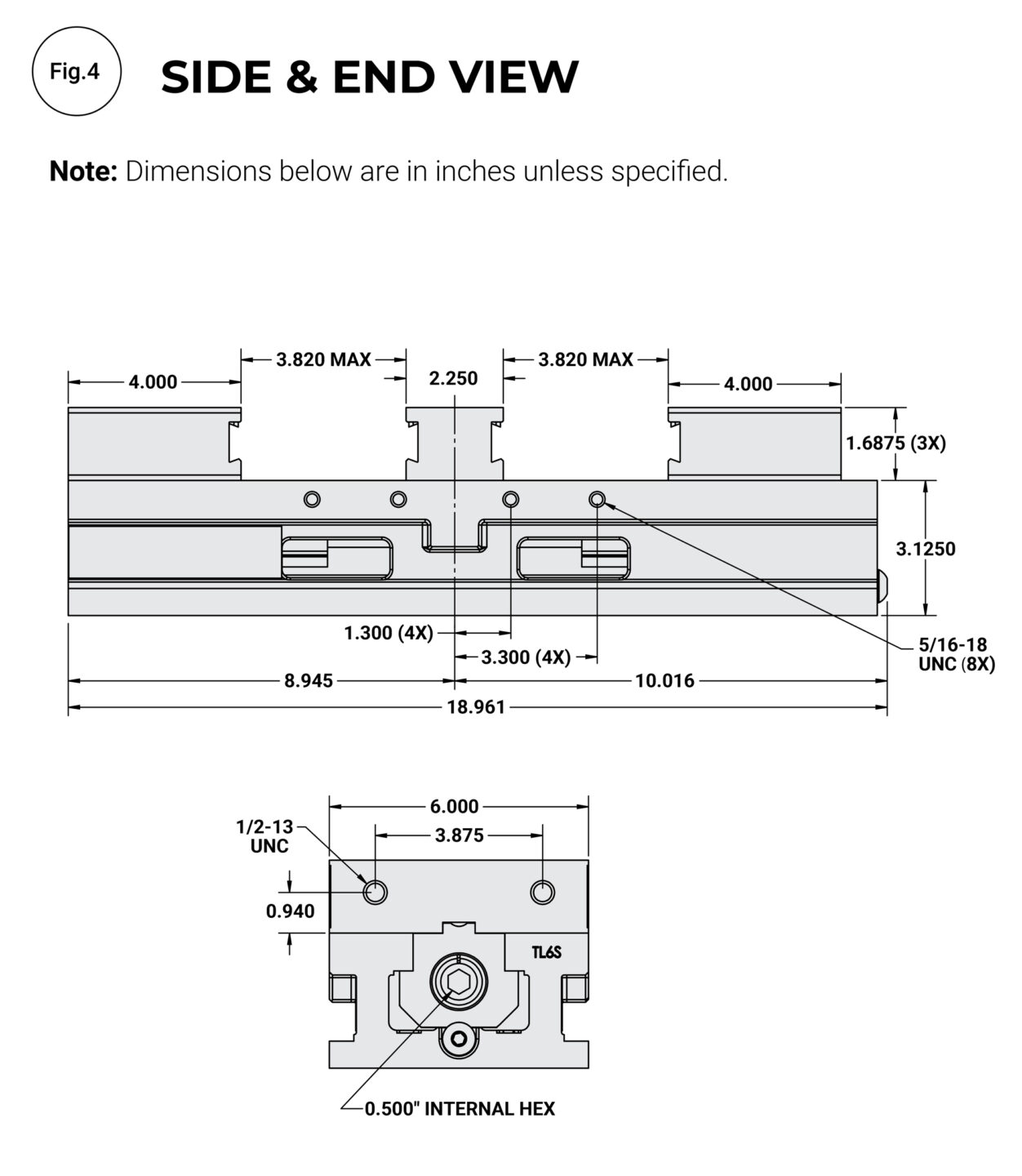

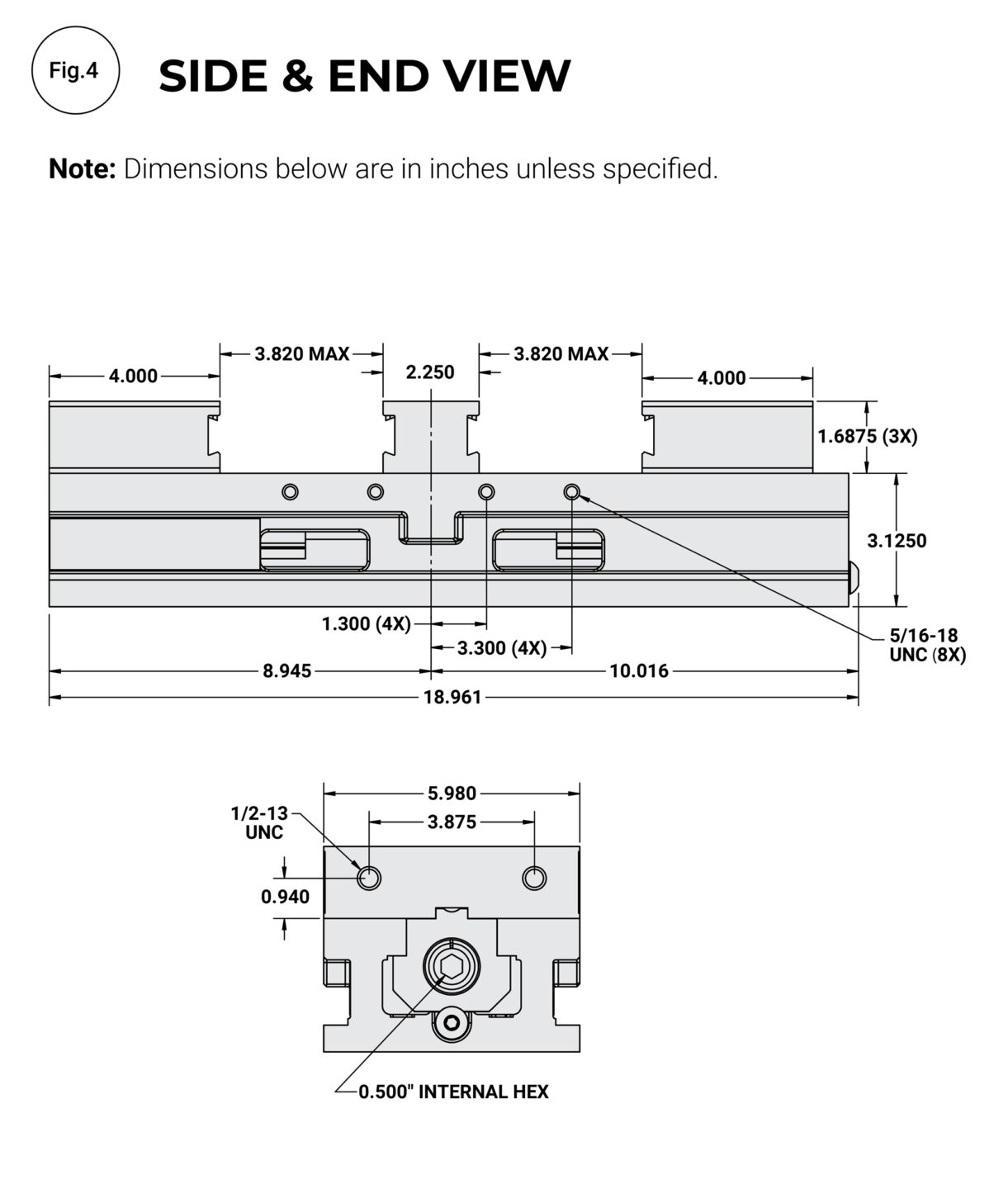

Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
| Torque Ft-Lbs | Force in lbs. |
| 10 | 640 |
| 20 | 1,230 |
| 30 | 1,710 |
| 40 | 2,350 |
| 50 | 3,080 |
| 60 | 3,750 |
| 70 | 4,470 |
| 80 | 4,980 |
| 90 | 5,550 |
