Kurt SideWinder – SDW35

Part No. SDW35

$693.00

The new Kurt Workholding vise mount is the SideWinder SDW35, perfect for holding parts vertically. Buy online or contact us for more information.

Description

Description

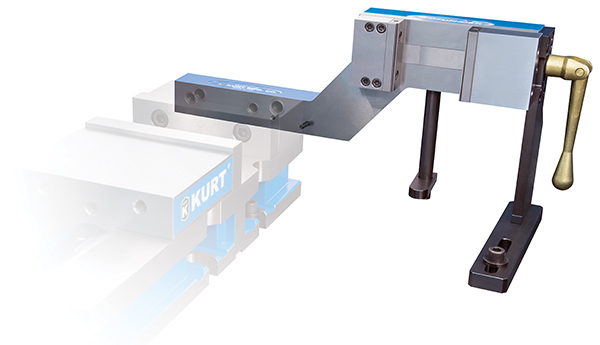

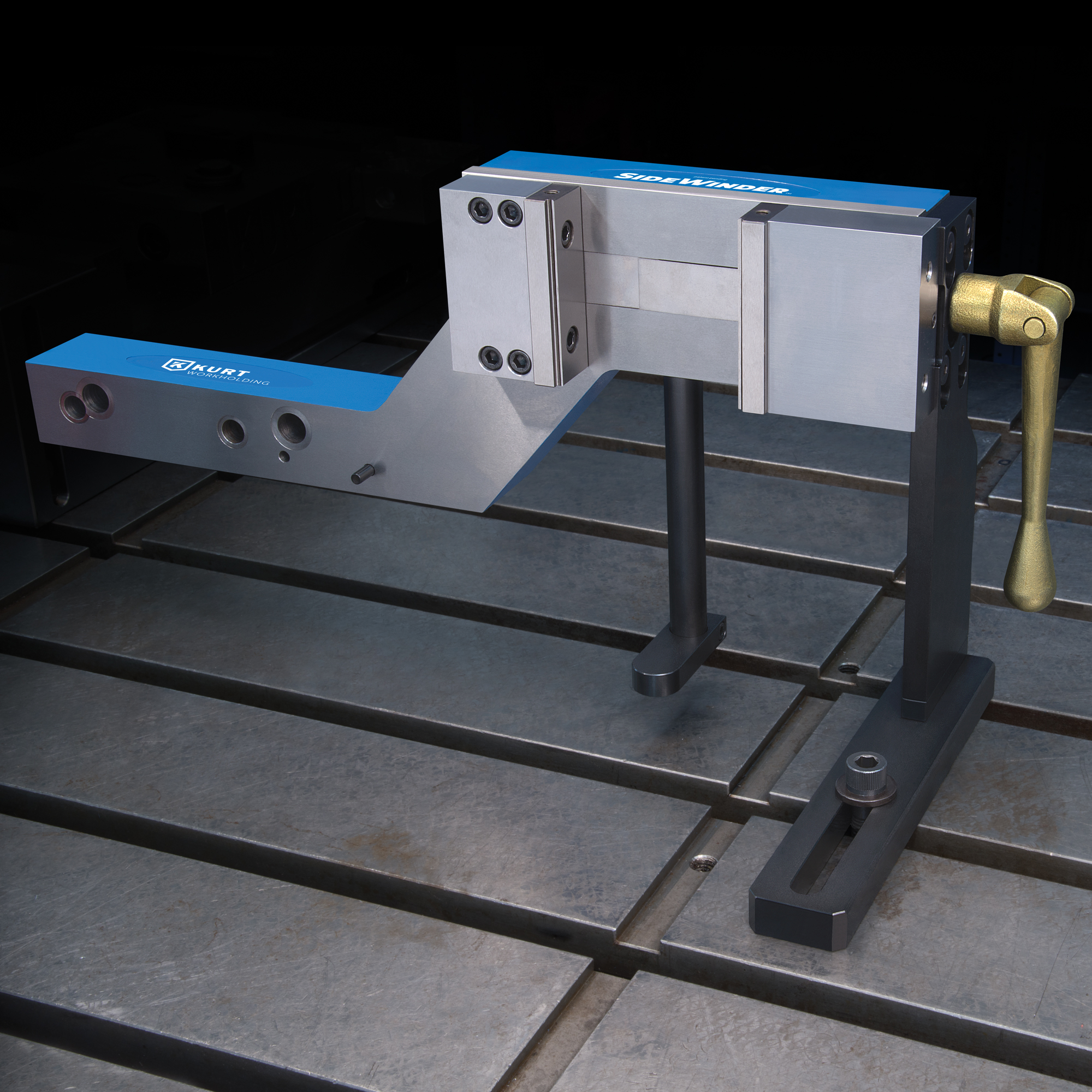

The Kurt SideWinder is a vise that mounts vertically to the back of any Kurt industry standard 6” or 8″ vise with an integral bracket. The bracket will include a stabilization leg that will mount to the table on the movable end of the vise and a workstop to position the height of the part.

SideWinder Purpose:

  • For doing 2nd op work holding the part vertically rather than horizontally.

SideWinder Advantages:

  • Saves set up time for 2nd op vertical work
  • Machining can be done on both vises in the same setup
  • Vise is at an elevated position which is more conducive to longer reach machining
  • Has a stabilizer foot for vibration control
  • Can be mounted to any Kurt industry standard 6″ or 8″ vise
  • Has a round nut which controls deflection to a greater degree
  • Does not interfere with the host vise
  • Pull type vise
  • AngLock design
