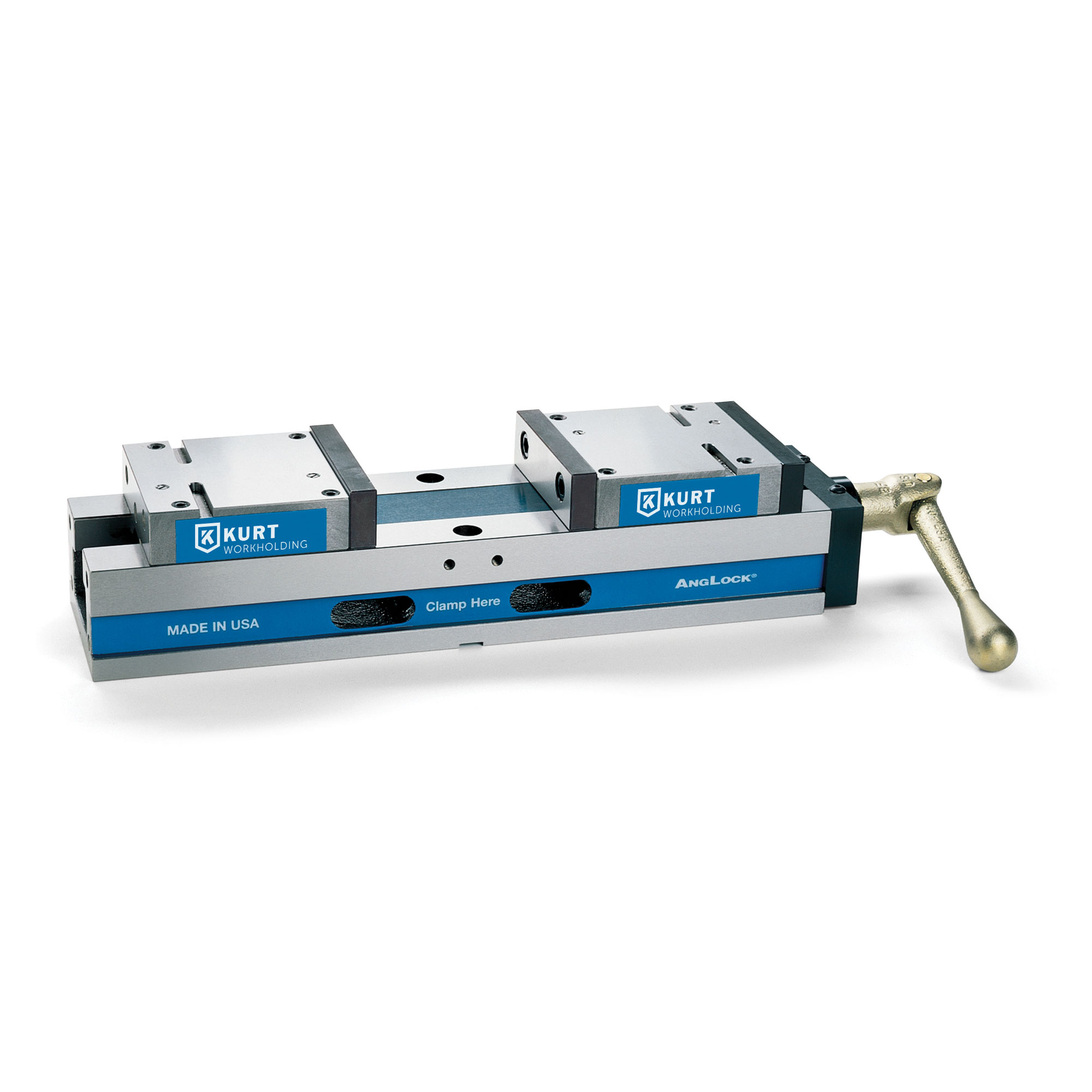

Kurt Self-Centering Vise – SCD640

Part No. SCD640

$3,688.00

Description

Description

Self-centering vises help provide greater precision for drilling, tapping, boring and finishing applications by keeping workpieces in a secure position as they are machined. They feature two jaws that move in equal and opposite directions and help improve machining precision and repeatability for your applications by automatically adjusting your workpiece to the center.
Self-centering vises can be used for both horizontal and vertical machining and help ensure that your material is properly aligned and are used for production on conventional and CNC machines.



6″ Self-Centering Vise Features

Kurt’s 6-inch self-centering manual vice has a 6″ jaw width and features our patented AngLock® design with zero lift that makes this vise ideal for precision work on materials such as steel, cast aluminum and iron. Our 6″ self-centering vice has 0.0006″ centering accuracy with 0.0002″ repeatability to give you the precision you need for your application. A unique adjustment feature allows you to set and reset the centerline of the jaws to help ensure accurate matching when using multiple vises.

Product Features and Benefits:

  • 8″ jaw opening
  • 0.0006″ centering accuracy with 0.0002″ repeatability
  • 80,000-PSI ductile iron construction
  • Hardened jaws
  • Hardened bed ways
  • Chip guards
  • Lip seals on main screw

Learn More About Our Self-Centering Vises or Contact Us

View additional technical data and product details for Kurt’s 6″ self-centering vise below.
Order your 6” self-centering vice today or visit our contact page to request additional information including PDF downloads and printed copies of our workholding product literature.

Resources

Dimensional Data

Dimensional Data

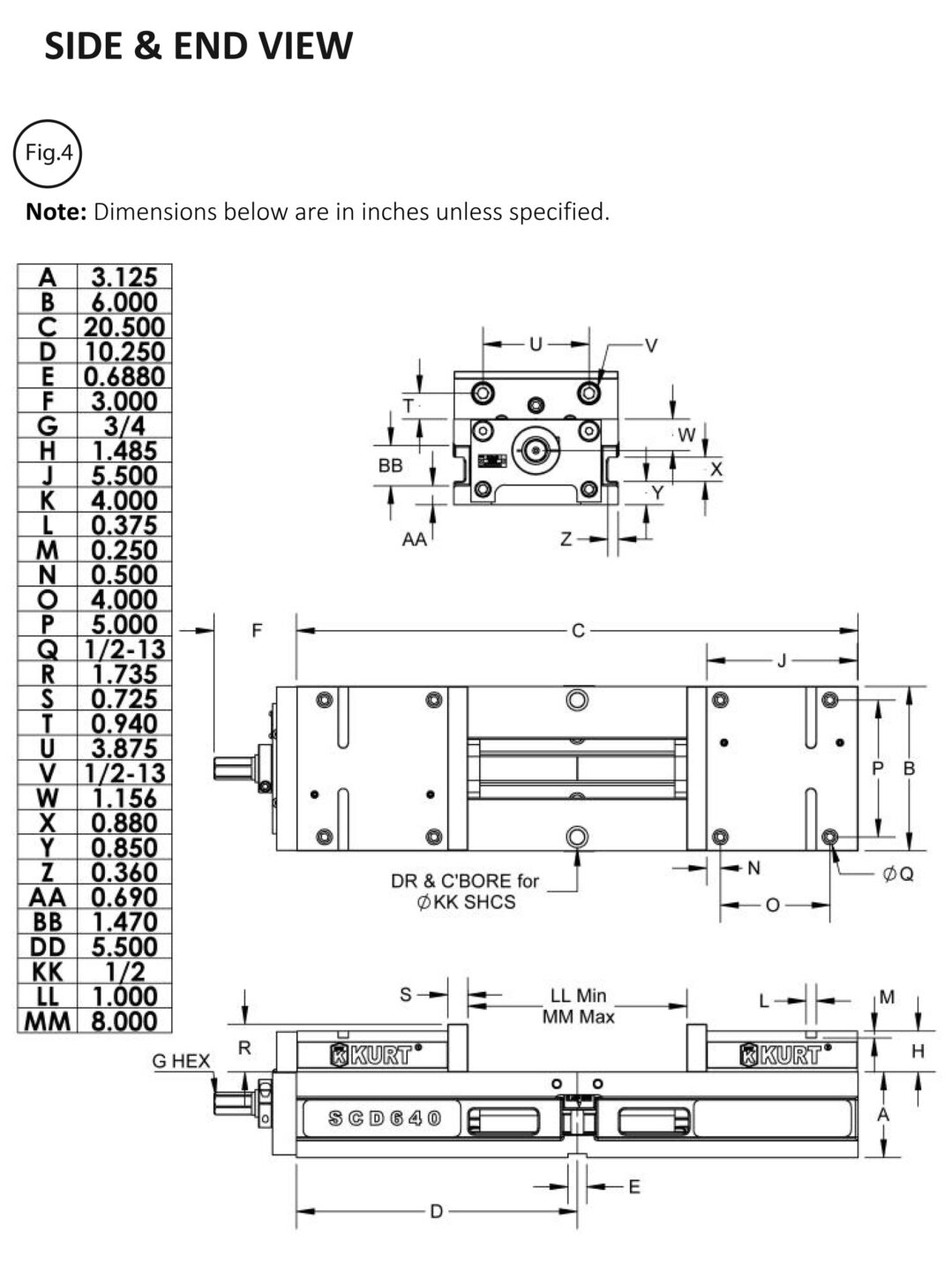

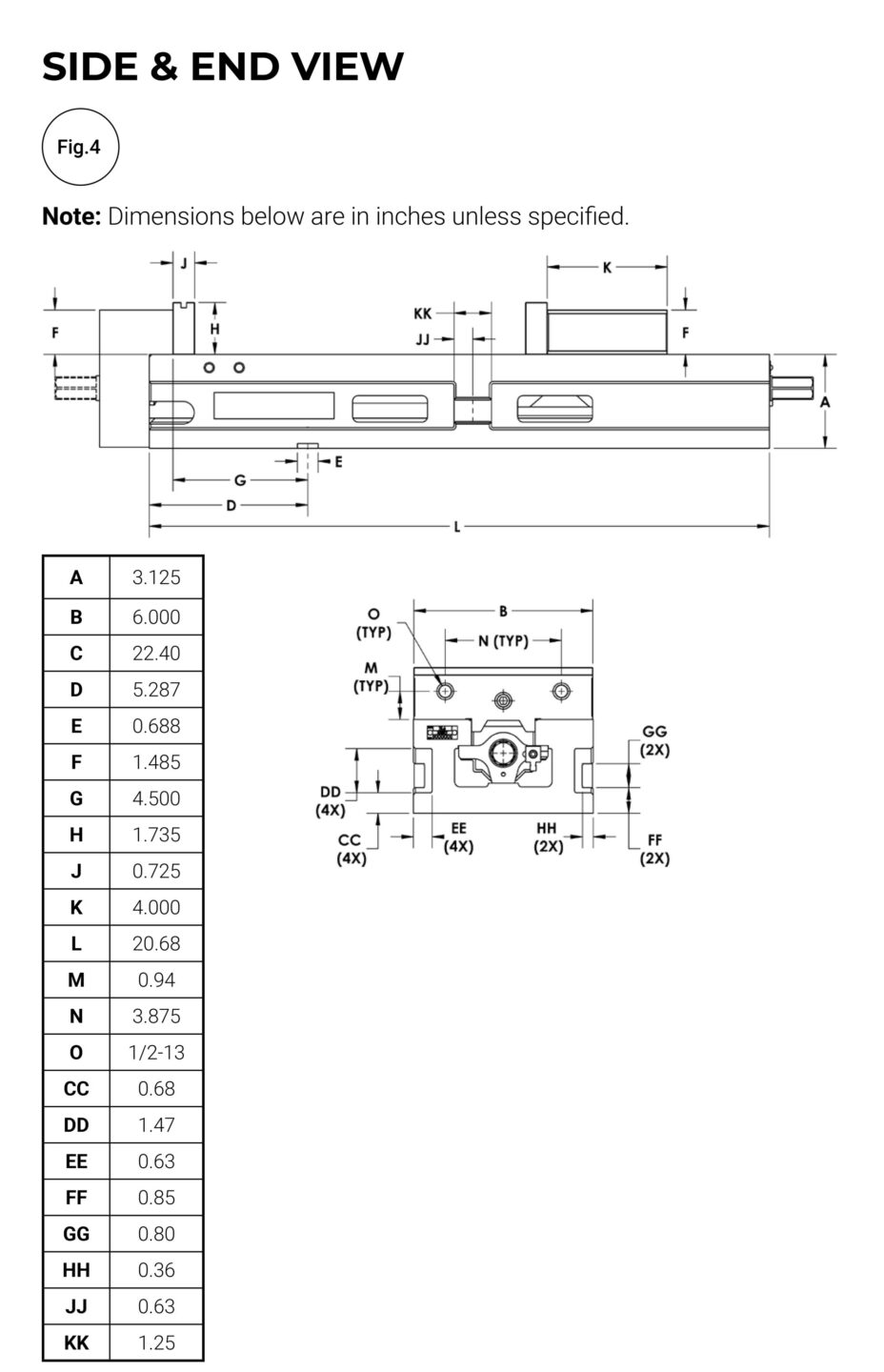

SCD640 Side and End View

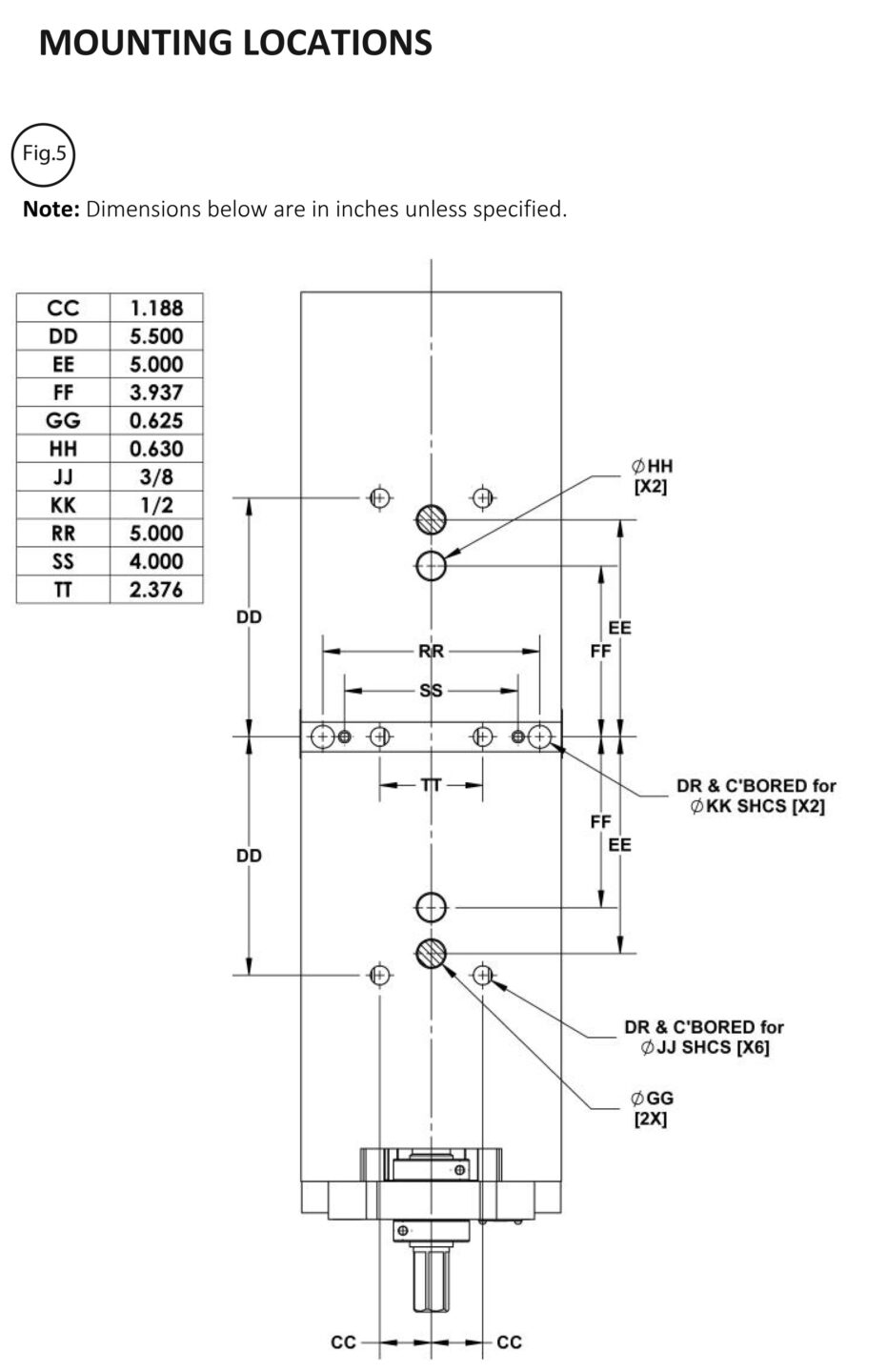

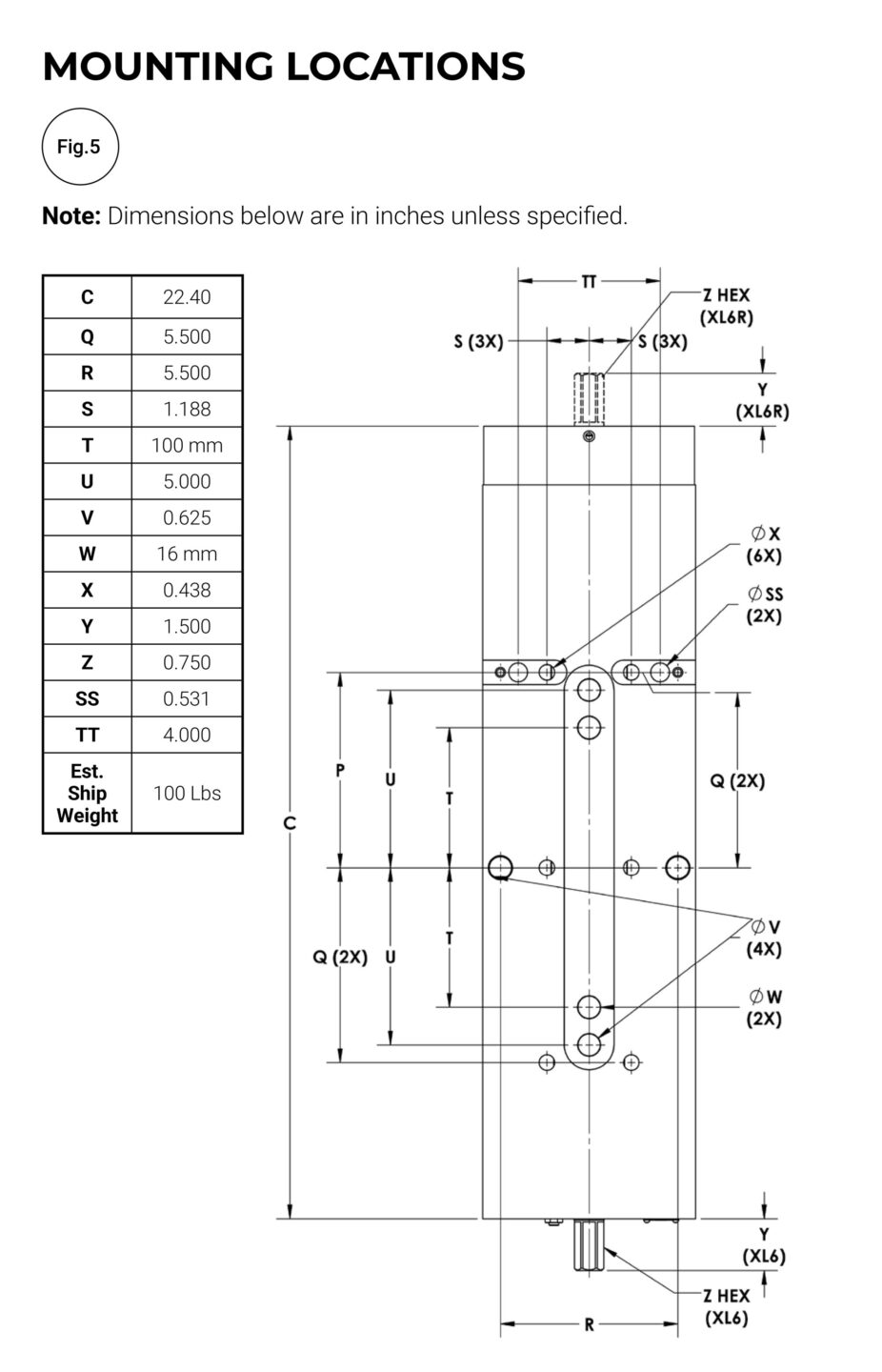

SCD640 Mounting Locations

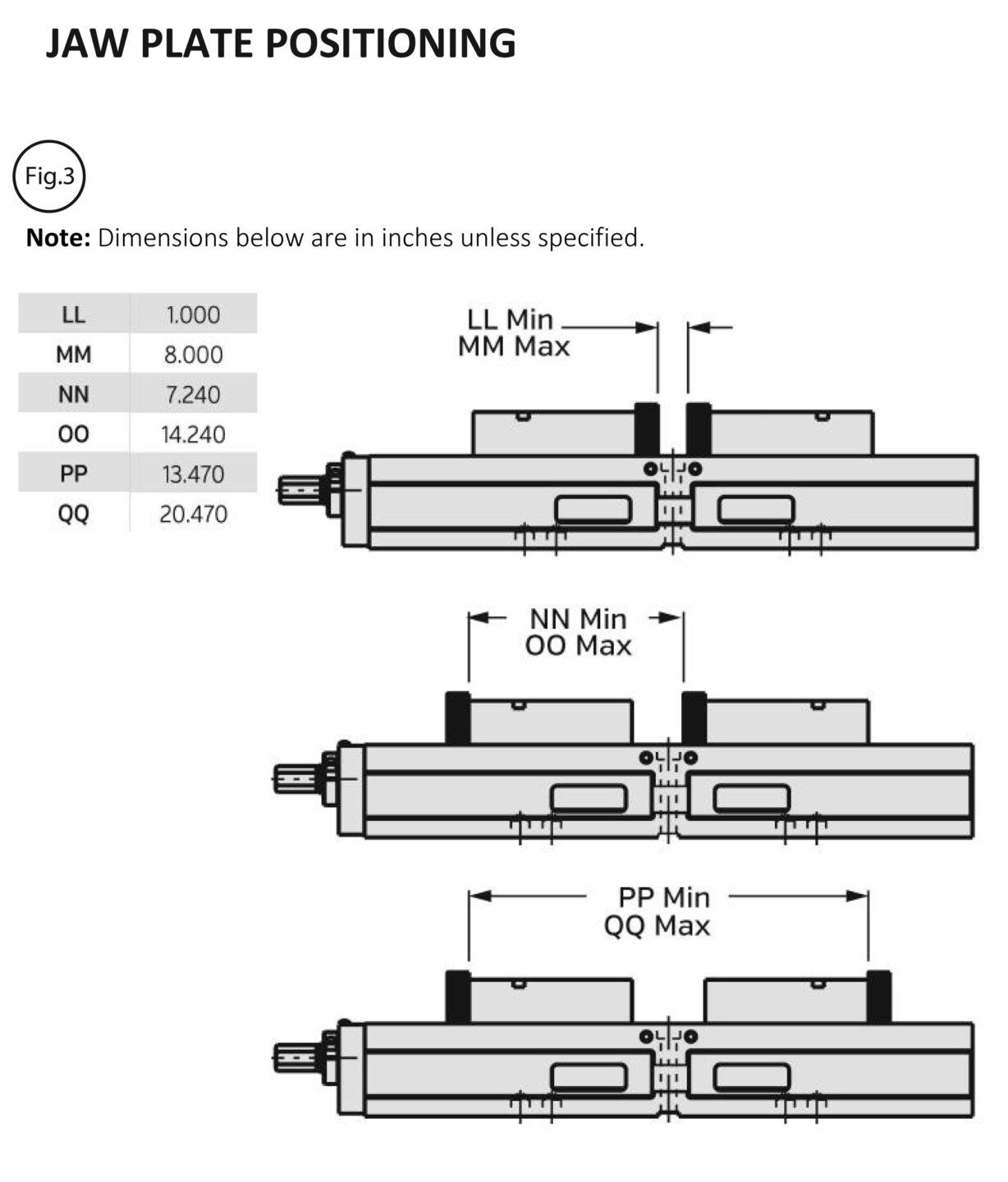

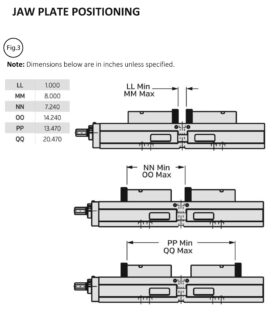

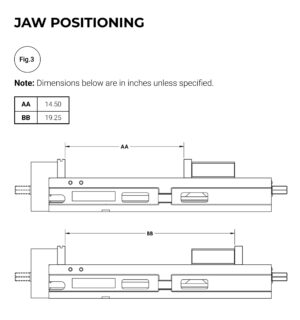

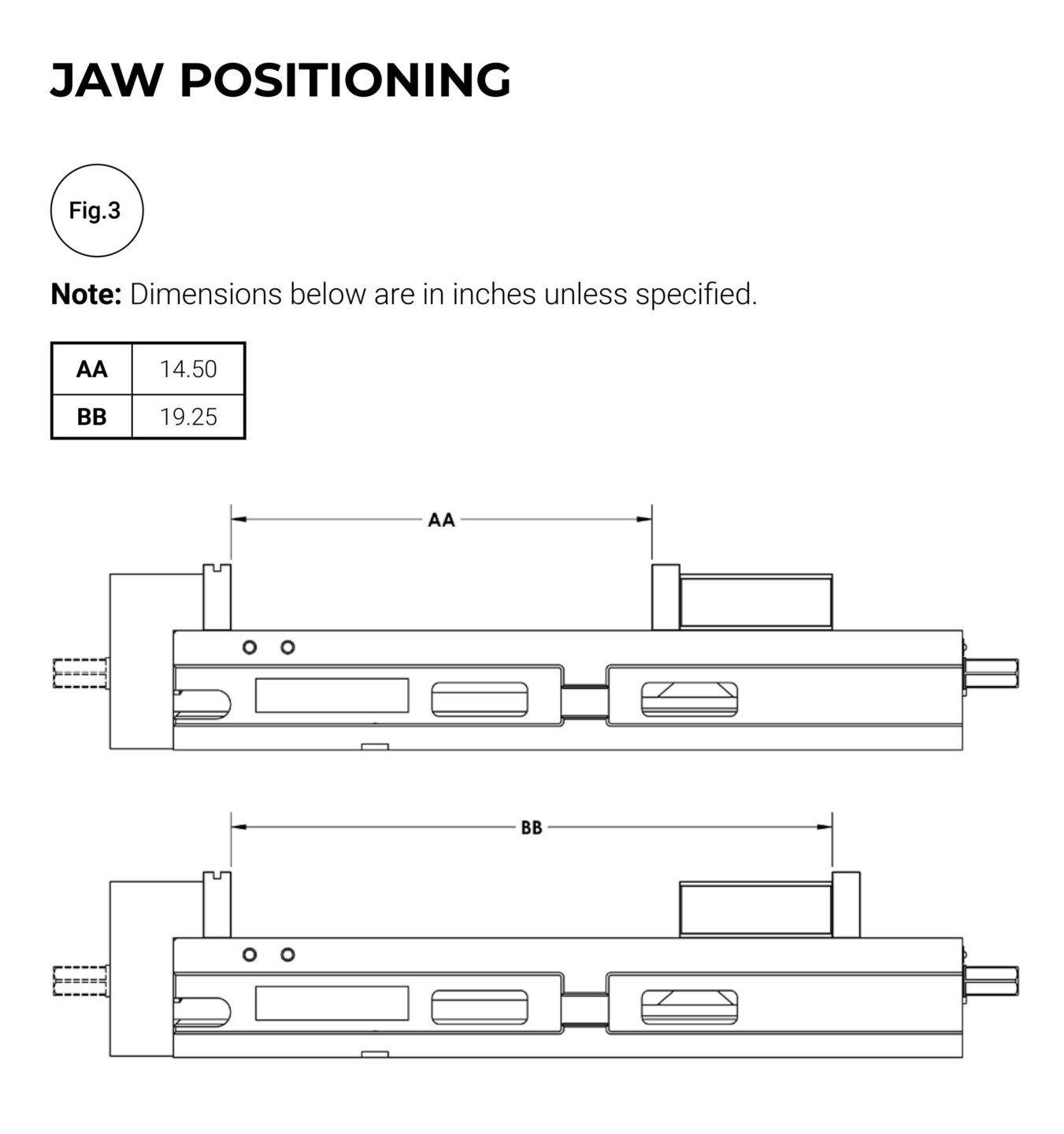

SCD640 Jaw Positioning

Clamping Force Pounds

Clamping Force Pounds

Torque Ft-Lbs Force in lbs.
10 975
20 1,750
30 2,575
40 3,750
50 4,375
60 5,750

Products We Recommend

Replacement Parts

Replacement Parts

SCD640 Replacement Parts
