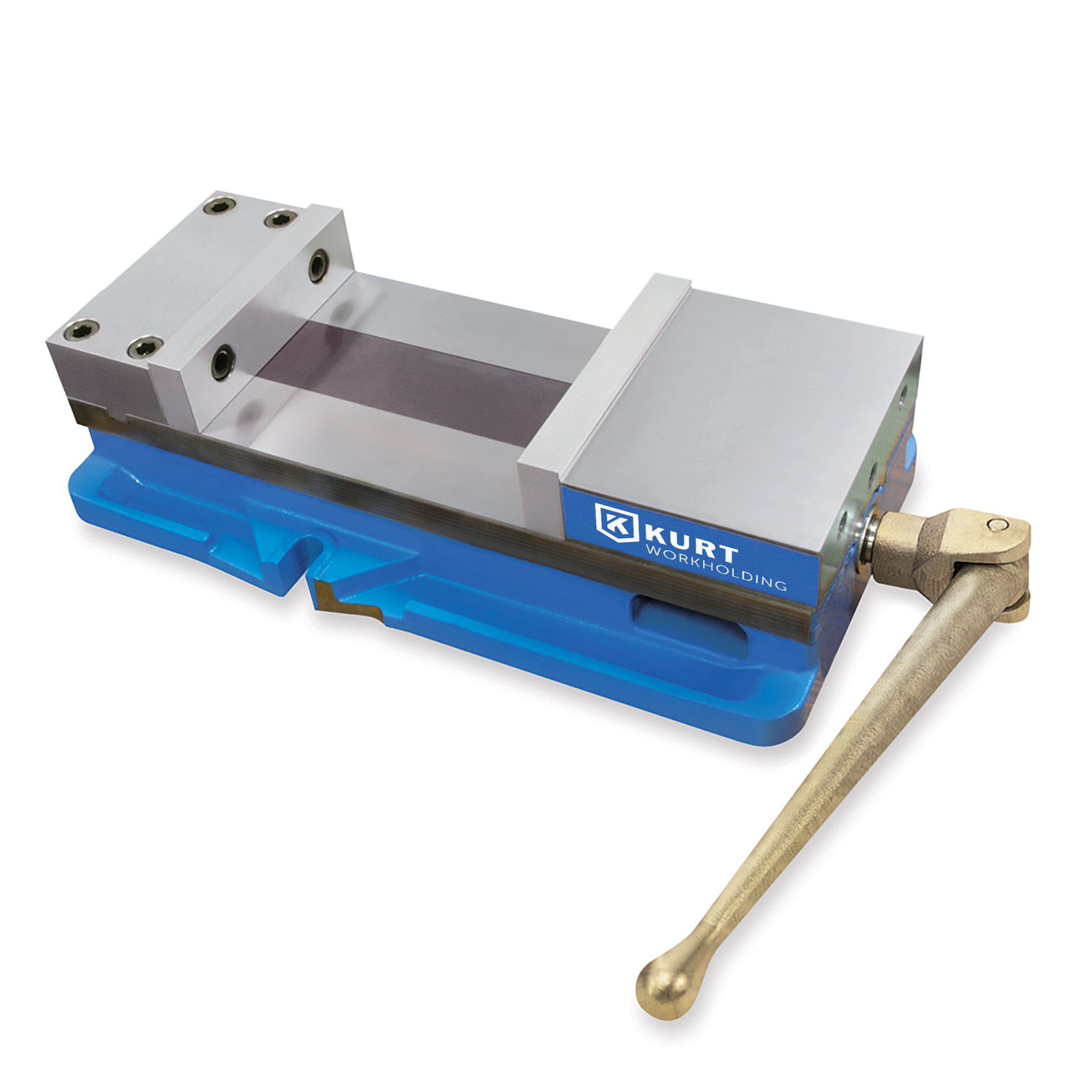

Kurt Manual Vise, 8″ w/ 10″ opening – D810
Part No. D810
$0.00
Out of stock
Want to be notified when this product is back in stock?
Description
Description
Kurt’s D810 vise has a large 10″ jaw opening and provides up to 11,600 lbs. of clamping force. The AngLock® design of the stationary jaw reduces vise deflection by 25% while allowing total disassembly of the vise without removing the body from the machine table. The D810 vise locks parts precisely for aggressive “hogging out” operations.
AngLock Clamping Technology
The D810 AngLock® vise is ideal for high precision part clamping on basic machine tools and machining centers. Recommended for running production parts with critical datum, flatness, and parallelism requirements, the D810 is designed for precision boring, tapping, drilling, and finishing operations. No other brand delivers the proven accuracy of Kurt AngLock® vises.
D810 Manual Vise Features
- Patented AngLock® design ensures that the movable jaw doesn’t lift under heavy clamping
- Maximum clamping force: 11,600 ft/lbs. clamping force with 160 ft-lbs. at the handle
- Special brush seals protect vise screw threads from machined chips and residue
- Nut is shorted so as not to protrude past the end of the vise body
- Powder coat finish resists coolant-induced peeling and corrosion
- Hardened vise bed and jaw plates
Contact Kurt for High Performance Manual Vises
Kurt’s D810 manual vise provides high precision clamping with minimal jaw deflection, even under maximum load. Order today or contact us for the rugged, reliable manual vise you need.
Resources
Resources

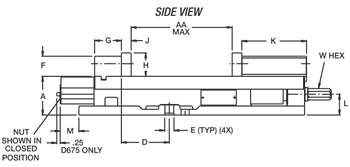

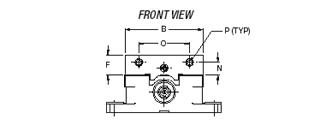

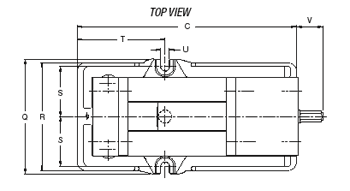

Dimensional Data
Dimensional Data
Callout | dimension |
A | 3.310 |
B | 8.000 |
C | 21.810 |
D | 4.686 |
E | 0.813 |
F | 1.965 |
G | 3.652 |
H | 2.200 |
J | 1.075 |
K | 6.190 |
L | 1.865 |
N | 1.220 |
O | 4.750 |
P | 5/8-11 |
Q | 11.500 |
R | 11.000 |
S | 4.940 |
T | 8.500 |
U | 0.880 |
V | 2.375 |
W | 0.875 |

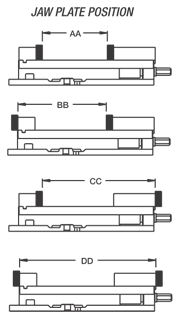

AA | 10 |
AA MIN | 0 |
BB | 14.730 |
BB MIN | 4.730 |
CC | 17.260 |
CC MIN | 7.260 |
DD | 21.990 |
DD MIN | 11.990 |
Ship Wt. | 158 |
Clamping Force Pounds
Clamping Force Pounds
Torque Ft-Lbs | Force in lbs. |
20 | 1,653 |
40 | 2,923 |
60 | 4,103 |
80 | 5,241 |
100 | 6,513 |
120 | 7,807 |
140 | 10,413 |
160 | 11,596 |
