Kurt Vise – D100
Part No. D100
$4,602.00
Description
Description
The D100 is the largest and strongest of Kurt Workholding’s general purpose vises. With a 9-3/4″ jaw opening and up to 16,163 pounds of clamping force, it has the capacity and strength to take on your highest horsepower milling cuts. It’s the most precise and rugged 10″ production vise in the world.
AngLock® Clamping Technology
The D100 general purpose AngLock® vise is designed for precision part clamping on basic machine tools and machining centers. It is ideal for running production parts where datums, flatness, and parallelism is important, and makes it easy to bore, tap, drill, and finish with high accuracy. No other manufacturer can provide the time-tested accuracy of Kurt’s AngLock® vises.
D100 Manual Vise Features
- Patented AngLock® design assures the movable jaw doesn’t lift under heavy clamping load
- Maximum clamping force: 16,163 ft/lbs.
- Standard bed height and keyway of stationary matched: ±0.001″
- Hardened vise bed and jaw plates
- Semi hard steel screw
Contact Kurt for Rugged, Reliable Manual Vises
Kurt Workholding’s D100 manual vise gives you high accuracy clamping with no jaw deflection, even under heavy clamping loads. Order today or contact us for the high performance manual vise you need.
Resources
Resources

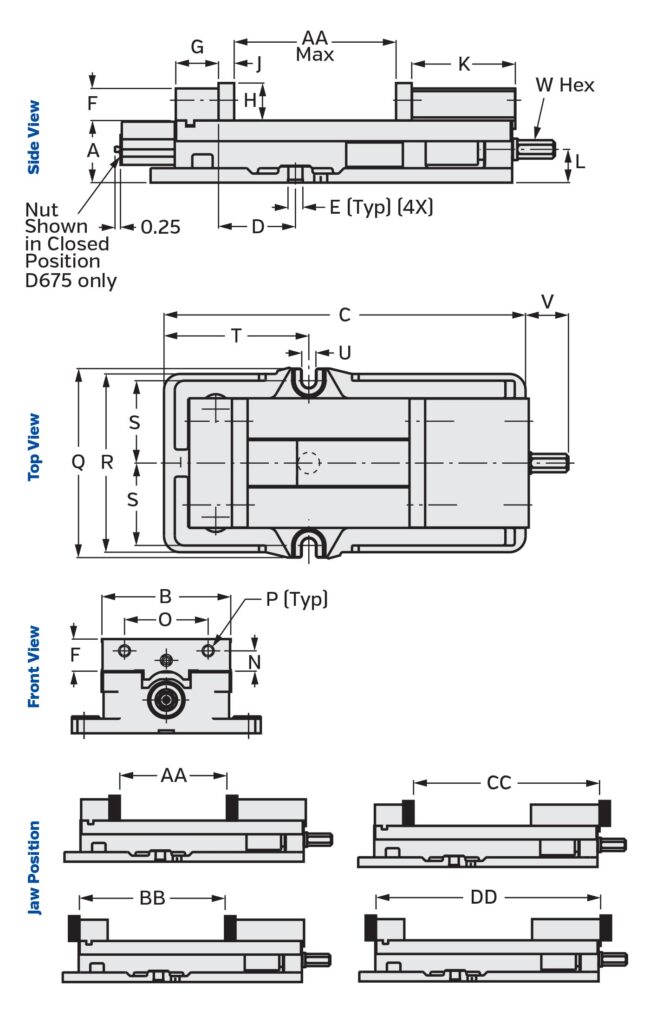

Dimensional Data
Dimensional Data
| Inch | |
| A | 3.875 |
| B | 10.000 |
| C | 27.500 |
| D | 5.875 |
| E | 0.813 |
| F | 2.465 |
| G | 2.950 |
| H | 2.937 |
| J | 1.320 |
| K | 8.630 |
| L | 2.225 |
| N | 1.625 |
| O | 5.750 |
| P | 3/4-10 |
| Q | 14.500 |
| R | 13.250 |
| S | 6.188 |
| T | 10.590 |
| U | 0.940 |
| V | 1.690 |
| W | 1 |
| AA | 9-3/4 |
| AA MIN | 0 |
| BB | 14.000 |
| BB MIN | 3.500 |
| CC | 19.750 |
| CC MIN | 9.200 |
| DD | 24.00 |
| DD MIN | 13.500 |
| Ship Wt. | 300 lbs |
Clamping Force Pounds
Clamping Force Pounds
| Torque Ft-Lbs | Force in lbs. |
| 20 | 1,698 |
| 40 | 3,300 |
| 60 | 4,686 |
| 80 | 6,623 |
| 100 | 7,842 |
| 120 | 9,970 |
| 140 | 11,429 |
| 160 | 12,792 |
| 180 | 14,681 |
| 200 | 16,163 |
Products We Recommend
Products We Recommend
You may also like…
-
Kurt 8″ or 10″ D-Series Fixture Key Set 13/16 inch x 18 mm – D80-33M18
D80-33M18
$75.00 -
Kurt 8″ or 10″ D-Series Fixture Key Set 13/16 inch – D80-50
D80-50
$55.00 -
Kurt 8″ or 10″ D-Series Fixture Key Set 13/16 x 7/8 inch – D80-33A
D80-33A
$54.00 -
Kurt 8″ or 10″ D-Series Fixture Key Set 13/16 x 11/16 inch – D80-33B
D80-33B
$54.00
Replacement Parts
Replacement Parts
D100 Replacement PartsReviews
Reviews
1 review for Kurt Vise – D100
You must be logged in to post a review.
kelliniedra –
This vise is a monster! We put this on the Nidec (50 taper spindle) in the showroom and started taking heavy cuts in steel. The parts didn’t move even under extreme heavy milling operations! Very impressive to use with plenty of work-holding force. Highly recommended for 50 taper machines along with any machine (30, 40 or 50 taper) that requires a BIG vise. Thanks Kurt!
