Kurt VersatileLock Short Vise – 3620V

Part No. 3620V

$1,271.00

Manual VersatileLock Short Vise, 6″

Description

Description

The VersatileLock vise is the industry’s ultimate single station CNC vise. It offers ultra-precision function through these important design features: The original, time proven Kurt AngLock® design prevents parts from lifting upward under heavy clamping loads. The “pull-type” jaw clamping reduces jaw stationary deflection by at least 80%. The one piece vise body and stationary jaw provide greater strength while reducing weight.

Features

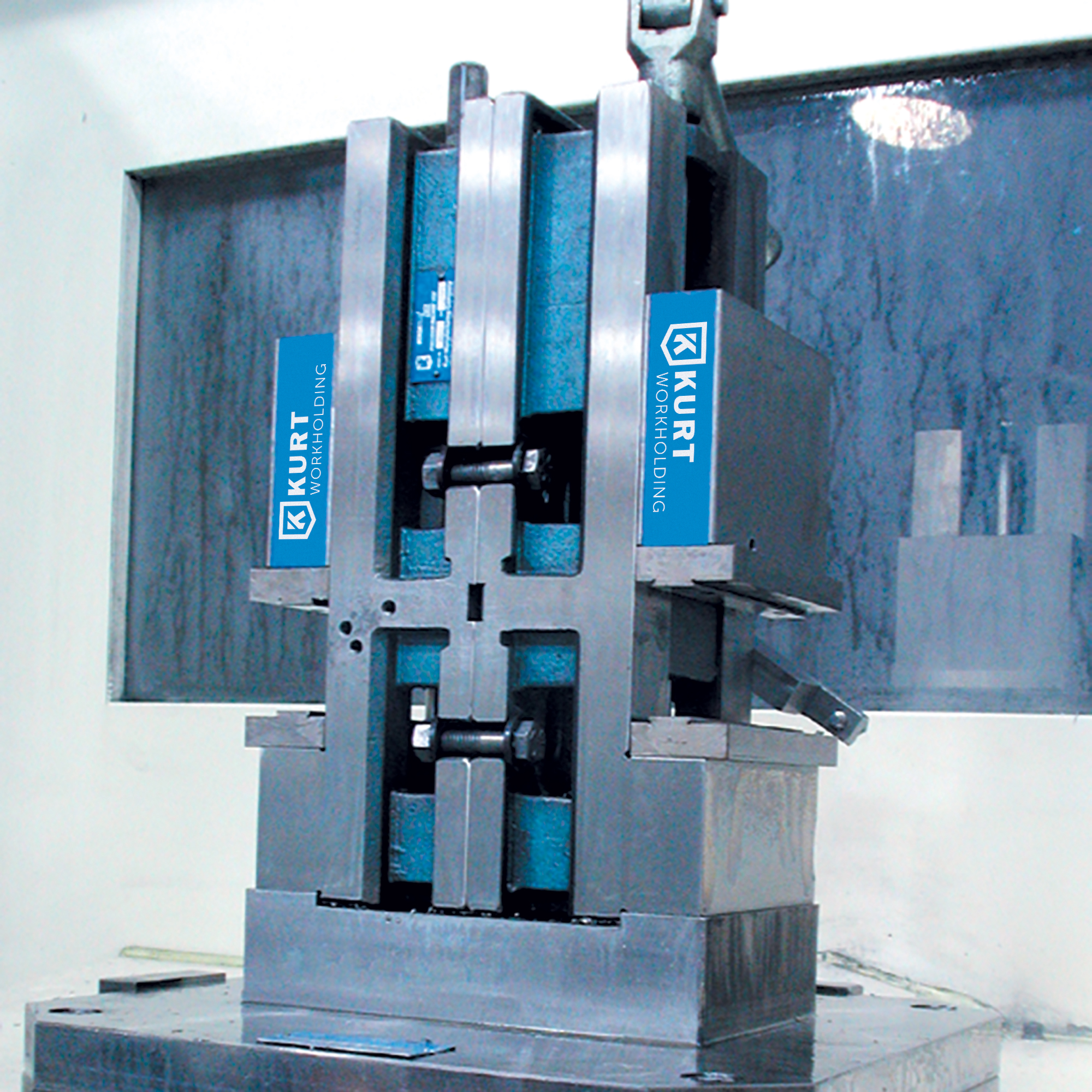

  • Can be mounted upright or on either side.
  • Matched stationary jaw to keyway including the body height ±0.001″.
  • 0.0005″ clamping repeatability.
  • Footprint on the short version is 13 inches, ideal for the smallest machines.
  • Sine key or fixture key compatible



Mounting instructions



Dimensional Data

Dimensional Data

vise dimension drawings

Inch Pounds
A 3.187 x
B 6.000 x
C 12.940 x
D 2.750 x
E 0.688 x
F 1.485 x
G 2.750 x
H 1.735 x
J 0.725 x
K 4.500 x
L 2.250 x
M 5.000 x
N 0.937 x
O 3.875 x
P 1/2-13 x
Q 2.000 x
R 4.250 x
S 3.000 x
T 1.380 x
U 0.630 x
V 1.940 x
W 3/4 x
X 5.640 x
Y 0.630 x
Z 6.000 x
AA 4.000 x
BB 7.500 x
CC 9.250 x
DD 12.750 x
MM 2.500 x
NN 0.344 x
OO 1/2 x
PP 0.671 x
Ship Wt. x 64
