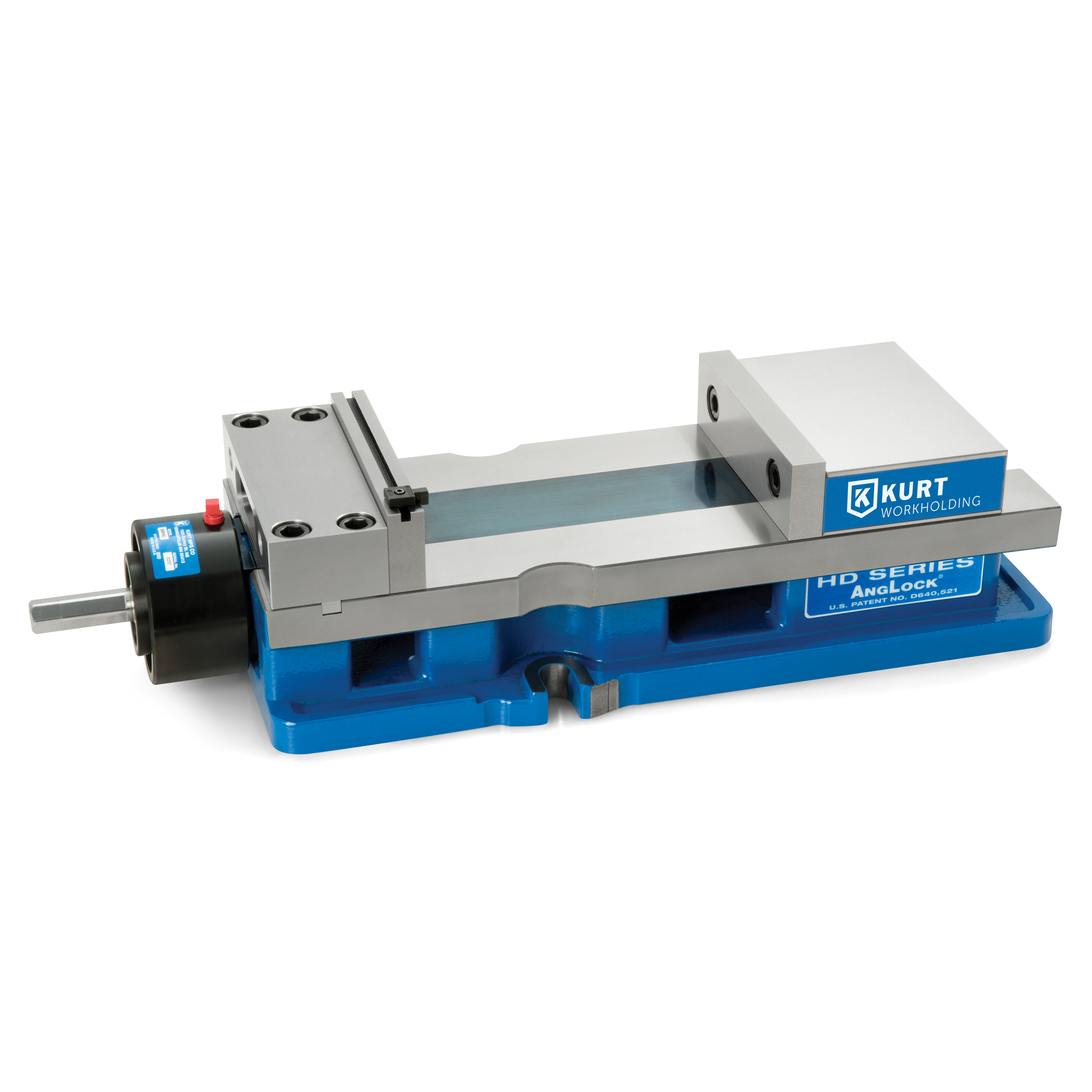

Kurt Hydraulic Vise – HDH691

Part No. HDH691

$2,290.00

The HDH691 Hydraulic Vise is the first 6″ “pull-type” vise with a full 9″ opening between jaws.

Description

Description

HDH691 Vise Features

  • Easier programming in the “Y” axis positive direction
  • Reduces “reach-over” distance making part loading safer and easier
  • A full 9″ opening between jaws when using standard jaw plates
  • Wider more stable stationary jaw equals less deflection
  • Four bolt stationary jaw bolts from the top which reduces stress in the body so the vise stays flatter after assembly
  • No need to remove the vise from the table to clean
  • Narrower body allows for more vises in the work envelope
  • Taller body design equals less deflection under clamping load
  • Bolts and locates directly on standard grid plates: 40mm, 50mm or 2″

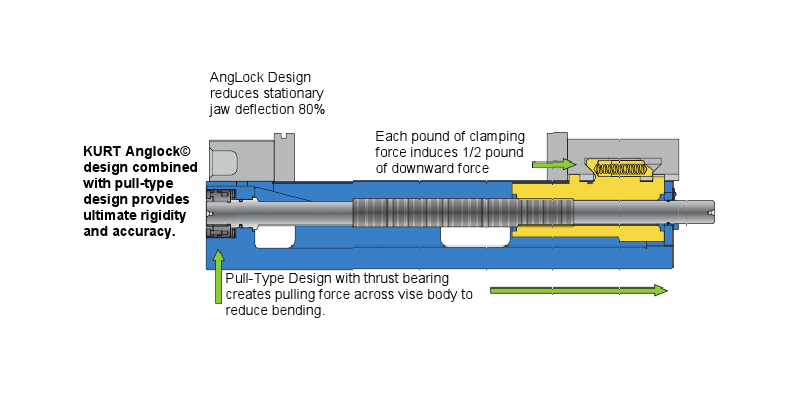

  • “Pull-type” design reduces stress in the body which results in more accurate clamping
  • Quick change movable jaw, the HD platform movable jaw allows for quick change and carvability to hold that odd shaped part
  • GrooveLock┬« workstop included
  • Uses sine keys for alignment
  • Swivel base available, Part #D50-4-SA
  • Body height matched ┬▒0.0005″
  • Hydraulic units feature a 1/4″ stroke
  • Ship weight approx 80 lbs

Mounting Instructions

Dimensional Data

Dimensional Data

Data
Data
Data
Data
HD691/HDM691/HDH691/HDHM691
A 3.125
B 6.000
C 16.810
D 3.375
E 0.6600
F 1.485
G 2.312
H 1.735
I 7.338
J 0.725
K 4.000
L 2.000
M 0.330
N 0.940
O 3.875
P 1/2-13
P METRIC M12
Q 2.000
R 2.986
S 50MM
T 200MM
U 80MM
V 10.000
W 4.000
X 16MM
Y 0.625
Z 0.992
AA 9.062
BB 12.099
CC 13.787
DD 16.824
EE 2.250
FF 3.375
GG 3/4
HH 1.575
SHIP WT 80LBS

Clamping Force Pounds

Clamping Force Pounds

Hydraulic PSI Clamping Force Lbs.
400 900
800 1525
1200 2750
1600 3650
2000 4600
2400 5500
2800 6425
3200 7350
