Kurt Vise – HD690
Part No. HD690
$1,019.00
The HD690 Vise is the first 6″ “pull-type” vise with a full 9″ opening between jaws.
Description
Description
HD690 Vise Features
- A full 9″ opening between jaws with the standard jaw plates
- Wider, more stable stationary jaw makes for less stationary jaw deflection
- Stationary has 4 bolts from the top which reduces stress in the body so the vise stays flatter
- No need to remove the vise body from the table for cleaning
- Narrower body width allows for more vises in the same work envelope
- Taller body equals less deflection under clamping loads
- Bolts and locates directly on standard grid plates: 40mm, 50mm and 2″
- “Pull-type” body design reduces stress in the body resulting in more accurate clamping
- HD platform quick change movable jaws makes holding the odd shaped part easier
- Groove Lock® workstop and jaw included
- Uses sine keys for alignment
- Swivel base available, part #D50-4-SA
- Body height matched ±0.0005″
- Shipping weight 75 lbs

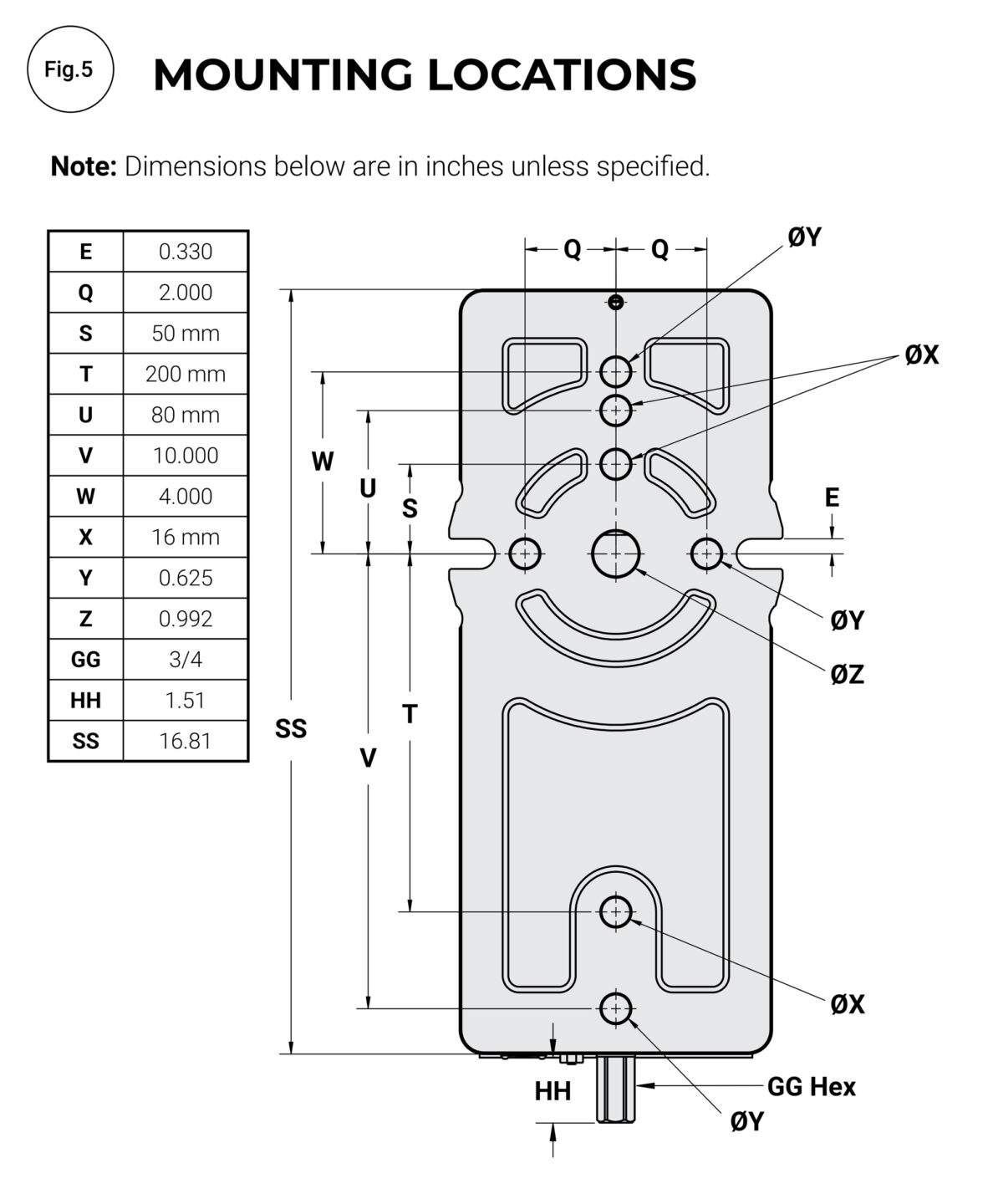

Mounting instructions
Resources
Resources

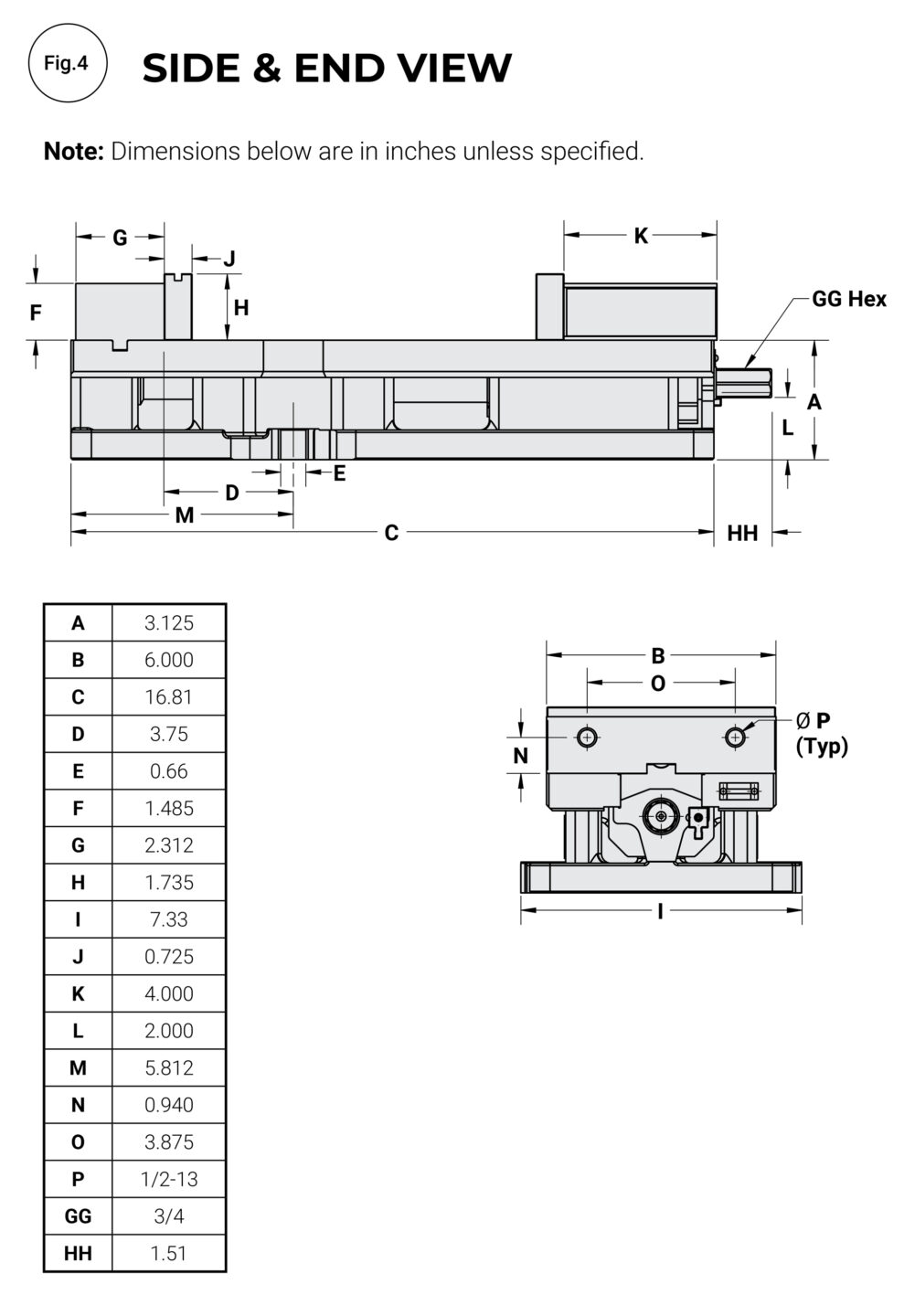

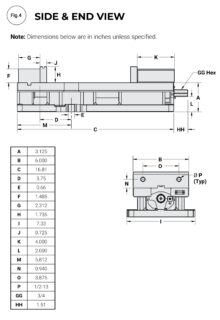

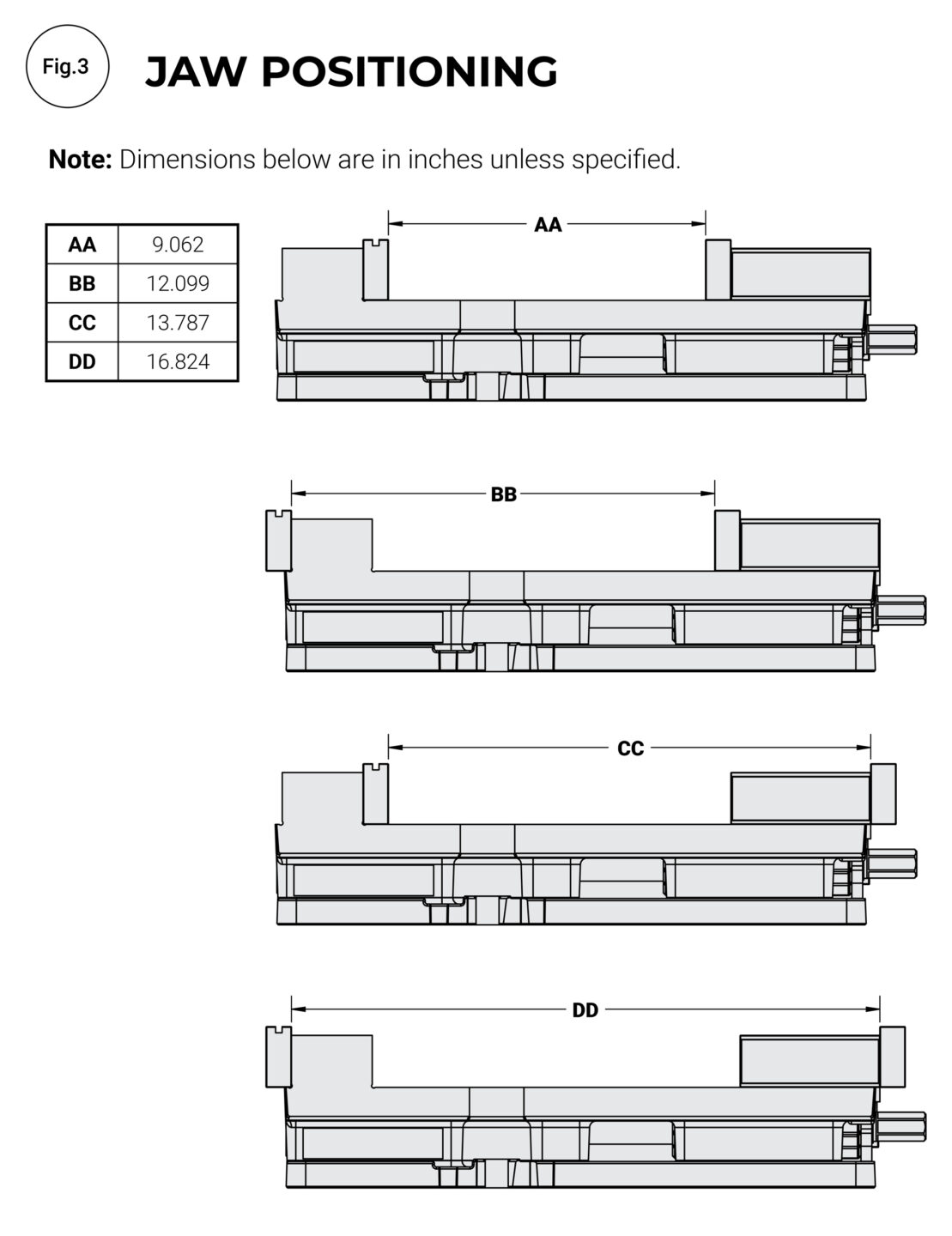

Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
| Torque Ft-Lbs | Force in lbs. |
| 10 | 975 |
| 20 | 1,625 |
| 30 | 2,400 |
| 40 | 3,250 |
| 50 | 3,700 |
| 60 | 4,275 |
| 70 | 4,700 |
| 80 | 5,250 |
