Kurt Vise – HD690
Part No. HD690
$1,019.00
The HD690 Vise is the first 6″ “pull-type” vise with a full 9″ opening between jaws.
Description
Description
HD690 Vise Features
- A full 9″ opening between jaws with the standard jaw plates
- Wider, more stable stationary jaw makes for less stationary jaw deflection
- Stationary has 4 bolts from the top which reduces stress in the body so the vise stays flatter
- No need to remove the vise body from the table for cleaning
- Narrower body width allows for more vises in the same work envelope
- Taller body equals less deflection under clamping loads
- Bolts and locates directly on standard grid plates: 40mm, 50mm and 2″

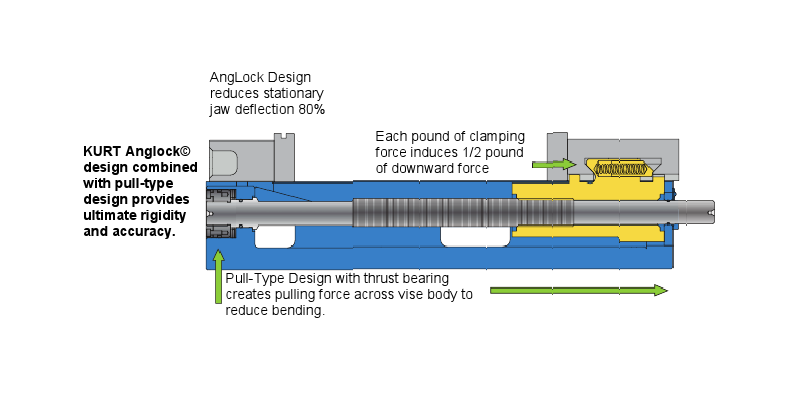

- “Pull-type” body design reduces stress in the body resulting in more accurate clamping
- HD platform quick change movable jaws makes holding the odd shaped part easier
- Groove Lock® workstop and jaw included
- Uses sine keys for alignment
- Swivel base available, part #D50-4-SA
- Body height matched ±0.0005″
- Shipping weight 75 lbs
Mounting instructions

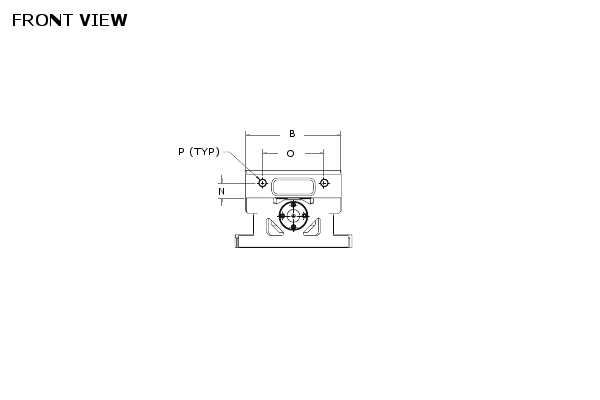

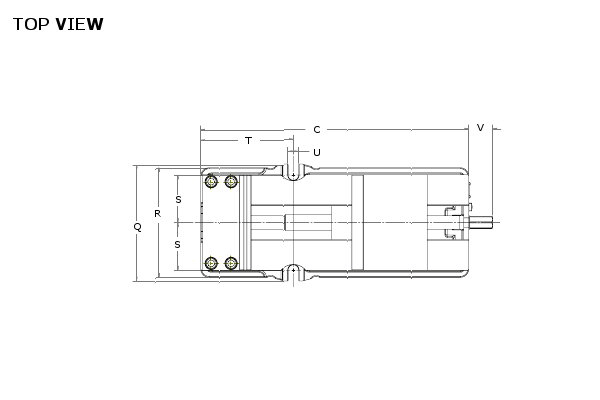

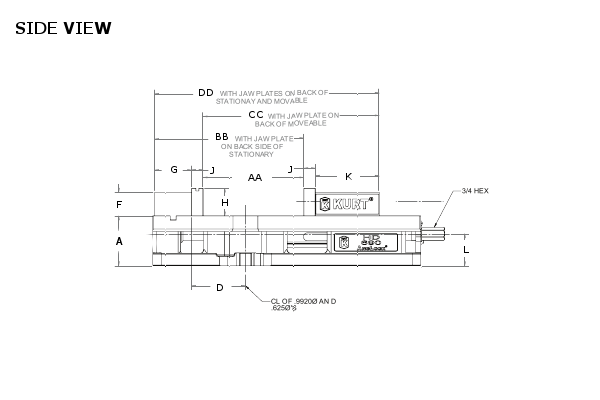

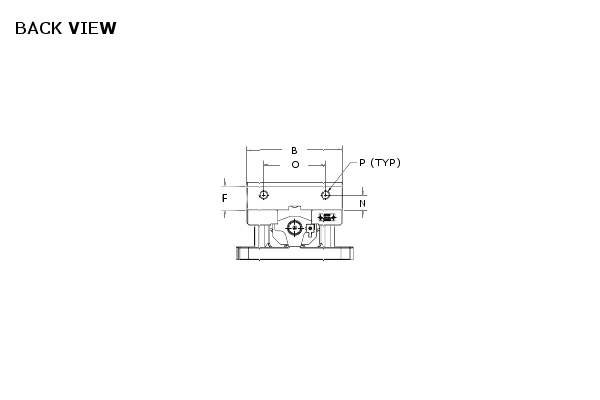

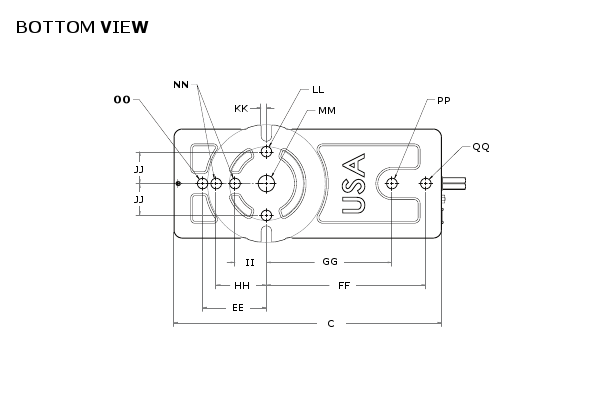

Dimensional Data
Dimensional Data
A | 3.125 |
B | 6.000 |
C | 16.81 |
D | 3.375 |
E | 1.485 |
F | 1.485 |
H | 1.735 |
J | .725 |
L | 2.000 |
N | .940 |
O | 3.875 |
P (TYP) | 1/2-13 (2x) |
Q | 7.33 |
R | 6.875 |
S | 2.99 |
T | 5.812 |
U | .66 |
V | 1.51 |
AA | 9.062 |
BB | 12.099 |
CC | 13.787 |
DD | 16.824 |
EE | 4.000 |
FF | 10.000 |
GG | 7.874 |
HH | 3.1496 |
II | 1.9685 |
JJ | 2.000 |
KK | .330 |
LL | .625 |
MM | .9920 |
NN | .6299 |
OO | .625 |
PP | .6299 |
.625 |
Clamping Force Pounds
Clamping Force Pounds
Torque (Ft. Lbs.) | Clamping Force (Lbs.) |
10 | 975 |
20 | 1,625 |
30 | 2,400 |
40 | 3,250 |
50 | 3,700 |
60 | 4,275 |
70 | 4,700 |
80 | 5,250 |
