Kurt Extra Capacity Manual Vise, 8″ – XL8-SD
Part No. XL8-SD
Original price was: $4,990.00.$3,992.00Current price is: $3,992.00.
Extra Capacity Manual Vise, 8″
Out of stock
Want to be notified when this product is back in stock?
Description
Description
Kurt XL vises are designed for precision clamping of very large parts for both tool and die and production CNC applications. These vises lock precisely, even for high horsepower “hogging out” operations. All sides of Kurt XL vises are accurate to within 0.001″ for precise, easy alignment in multiples. XL vises may be mounted and used as receivers for other workholding fixtures.
These scratch & dent vises have a tiny spot of porosity in the ways in 1 spot only that will not effect the functionality of the vise. We have 2 vises and they will still carry the full “Kurt Ironclad Lifetime Warranty.”
ALL SCRATCH AND DENT SALES ARE FINAL.
Resources
Resources

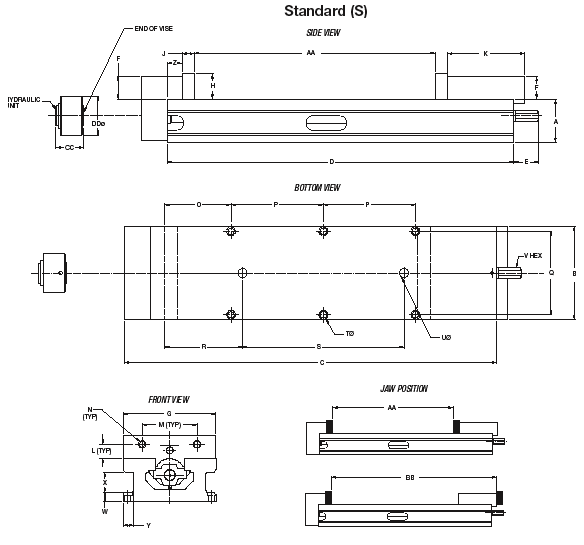

Dimensional Data
Dimensional Data
Clamping Force Pounds
Clamping Force Pounds
Torque Ft-Lbs | Force in lbs. |
20 | 2,904 |
40 | 5,664 |
60 | 7,872 |
80 | 10,824 |
100 | 13,848 |
120 | 16,632 |
140 | 19,008 |
160 | 20,376 |
