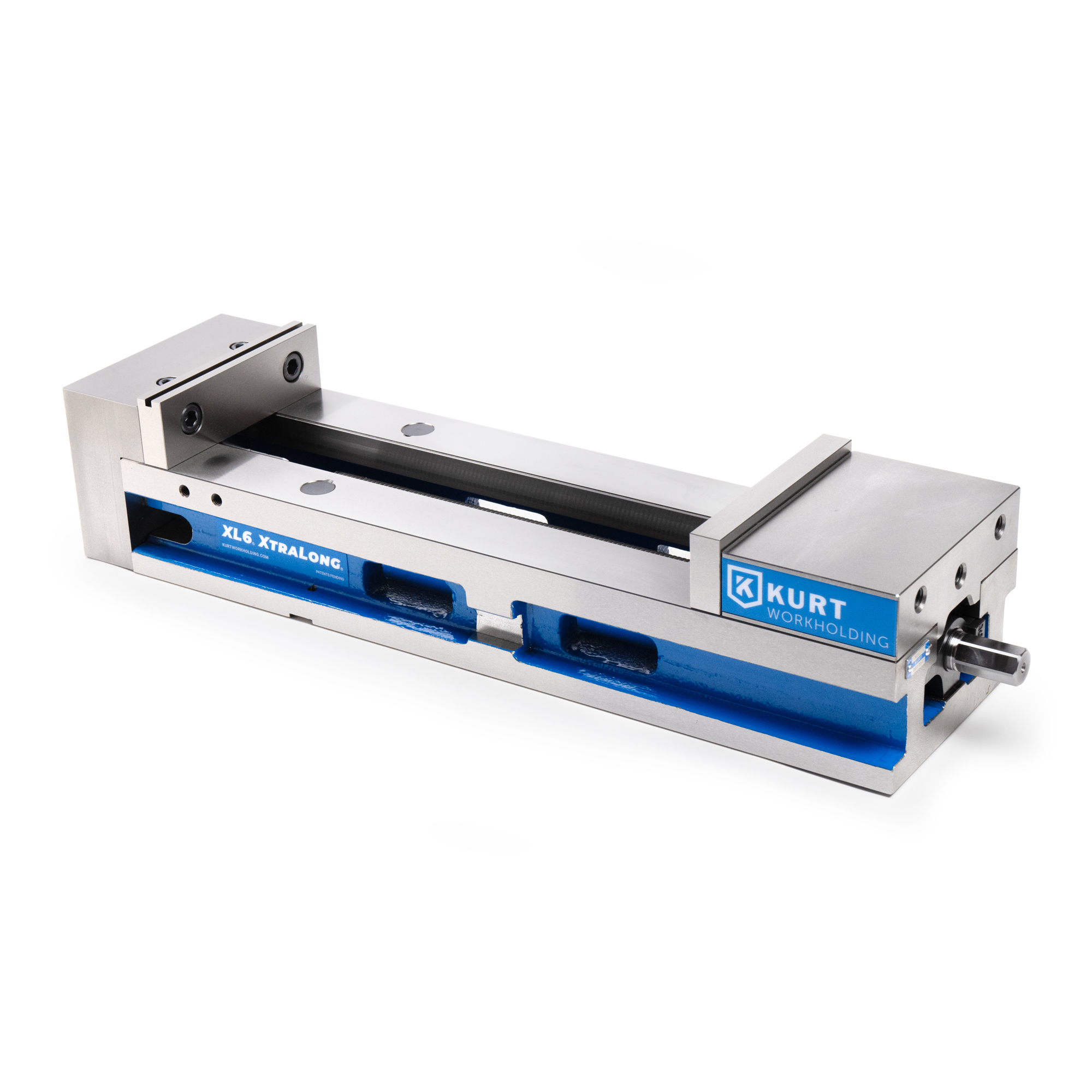

Kurt Extra Capacity Vise – XL6

Part No. XL6

$3,035.00

Kurt Industrial Products is an industry leading provider of premium quality 6″ added capacity manual vises for your industrial vise workholding needs. Contact us today for more information regarding our XL added capacity vises or request a quote for an in-depth price analysis.

Description

Description

Kurt XL vises are designed for the clamping of extremely large parts for both die and CNC applications. The jaw openings provide up to 28.750″ of versatile jaw opening space. These precise locking vises are ideal for high horsepower “hogging out” operations. Kurt XL vises are accurate to within 0.001″ for precise, easy alignment in multiples. XL vises may be used as receivers for other workholding devices.

XL6 Extra Capacity Manual Vise Features

  • Precision clamping force up to 6,884 Lbs.
  • Jaw lift reduction due to AngLock design.
  • 80,000 lb. ductile iron body
  • 6″ jaw width with jaw openings from 0″-14.50″ with a maximum of 19.25″ (in the outside jaw positions).
  • “Pull-Type” clamping provides high precision and repeatability.
  • Excellent for high horsepower “hogging out” applications.
  • Air, manual and hydraulic models available.
  • Hydraulic and air feature a 1/4″ stroke.
  • Air power option provides a “gentle touch” for delicate parts that is precise and repeatable.
  • Available internal hex screw.
  • Sine key or fixture key compatible

Mounting instructions

Resources

Dimensional Data

Dimensional Data

Data
Data
Data
Data
Data

Inch
A 3.125
B 6.000
C 22.400
D 5.287
E 0.688
F 1.485
G 4.500
H 1.735
J 0.725
K 4.000
L 20.680
M 0.940
N 3.875
O 1/2-13
P 5.500
Q 5.500
R 5.000
S 1.188
T 100 MM
U 5.000
V 0.625
W 16MM
X 0.438
Y 1.500
Z 0.750
AA 14.500
BB 19.25
CC 0.690
DD 1.470
EE 0.630
FF 0.850
GG 0.800
HH 0.360
JJ 0.630
KK 1.250
SS 0.531
TT 4.000
Ship Wt. Lbs. 100
