Kurt Extra Capacity Hydraulic Vise, 6″ – XL6H
Part No. XL6H
$4,022.00
Kurt Industrial Products is an industry leading provider of advanced quality 6″ extra capacity hydraulic vises for your industrial vise workholding needs. Contact us today for more information regarding our XL extra capacity hydraulic vises or request a quote for an in-depth price analysis.
Description
Description

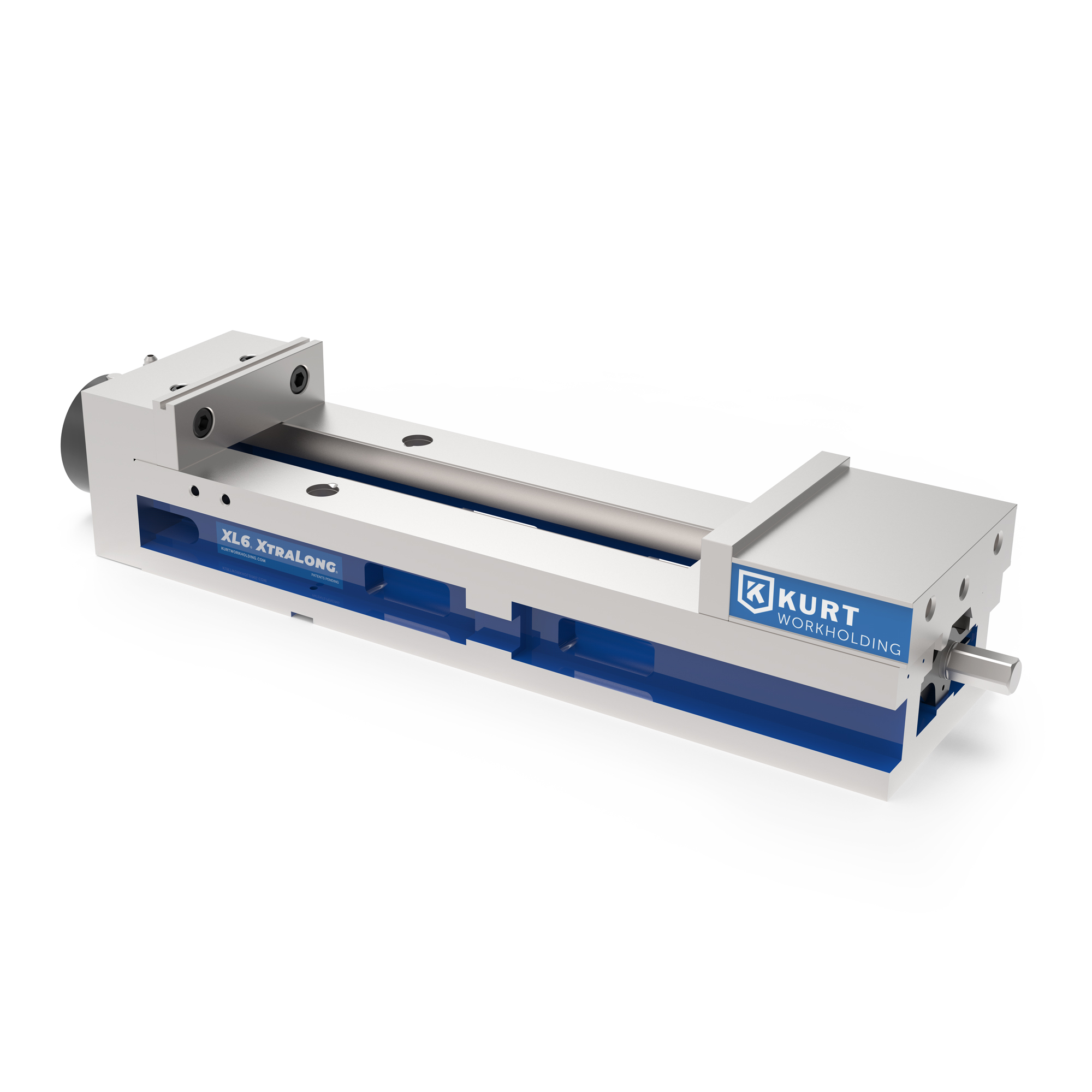

Kurt XL vises are designed for the clamping of extremely large parts for both die and CNC applications. The jaw openings provide up to 19.25″ of versatile jaw opening space. These precise locking vises are ideal for high horsepower “hogging out” operations. Kurt XL vises are accurate to within 0.001″ for precise, easy alignment in multiples. XL vises may be used as receivers for other workholding devices.
The newest hydraulic vise models are capable of:
- Single acting with unclamp spring return, or double acting with hydraulic unclamp. Fittings for both configurations are included.
- Female threaded ports on body: 1/8″ NPT.
- Two Included adapters: Male 1/8” NPT to Male #4 JIC.
XL6H Features
- Precision clamping force up to 7,350 Lbs.
- Jaw lift reduction due to AngLock design.
- Ductile iron body provides up to 80,000 lb.
- 6” jaw widths with jaw openings from 14.50″ with a maximum of 19.25″ (in the outside jaw positions).
- “Pull-Type” clamping provides high precision and repeatability.
- Excellent for high horsepower “hogging out” applications.
- Air, manual and hydraulic models available.
- Hydraulic and air feature a 1/4″ stroke.
- Air power option provides a “gentle touch” for delicate parts that is precise and repeatable.
- Available internal hex screw.
- Sine key or fixture key compatible
Mounting Instructions
Dimensional Data
Dimensional Data
Inch | |
A | 3.125 |
B | 6.000 |
C | 22.400 |
D | 5.287 |
E | 0.688 |
F | 1.485 |
G | 4.500 |
H | 1.735 |
J | 0.725 |
K | 4.000 |
L | 20.680 |
M | 0.940 |
N | 3.875 |
O | 1/2-13 |
P | 5.500 |
Q | 5.500 |
R | 5.000 |
S | 1.188 |
T | 100 MM |
U | 5.000 |
V | 0.625 |
W | 16 MM |
X | 0.438 |
Y | 1.500 |
Z | 0.750 |
AA | 14.500 |
BB | 19.25 |
CC | 0.690 |
DD | 1.470 |
EE | 0.630 |
FF | 0.850 |
GG | 0.800 |
HH | 0.360 |
JJ | 0.630 |
KK | 1.250 |
LL | 2.500 |
MM | 3.380 |
SS | 0.531 |
TT | 4.000 |
Ship Wt. Lbs. | 105 |
Hydraulic Displacement cu. In. | 0.69 |
Clamping Force Pounds
Clamping Force Pounds
Hydraulic PSI | 640XLHS |
400 | 900 |
800 | 1525 |
1200 | 2750 |
1600 | 3650 |
2000 | 4600 |
2400 | 5500 |
2800 | 6425 |
3200 | 7350 |
