Description

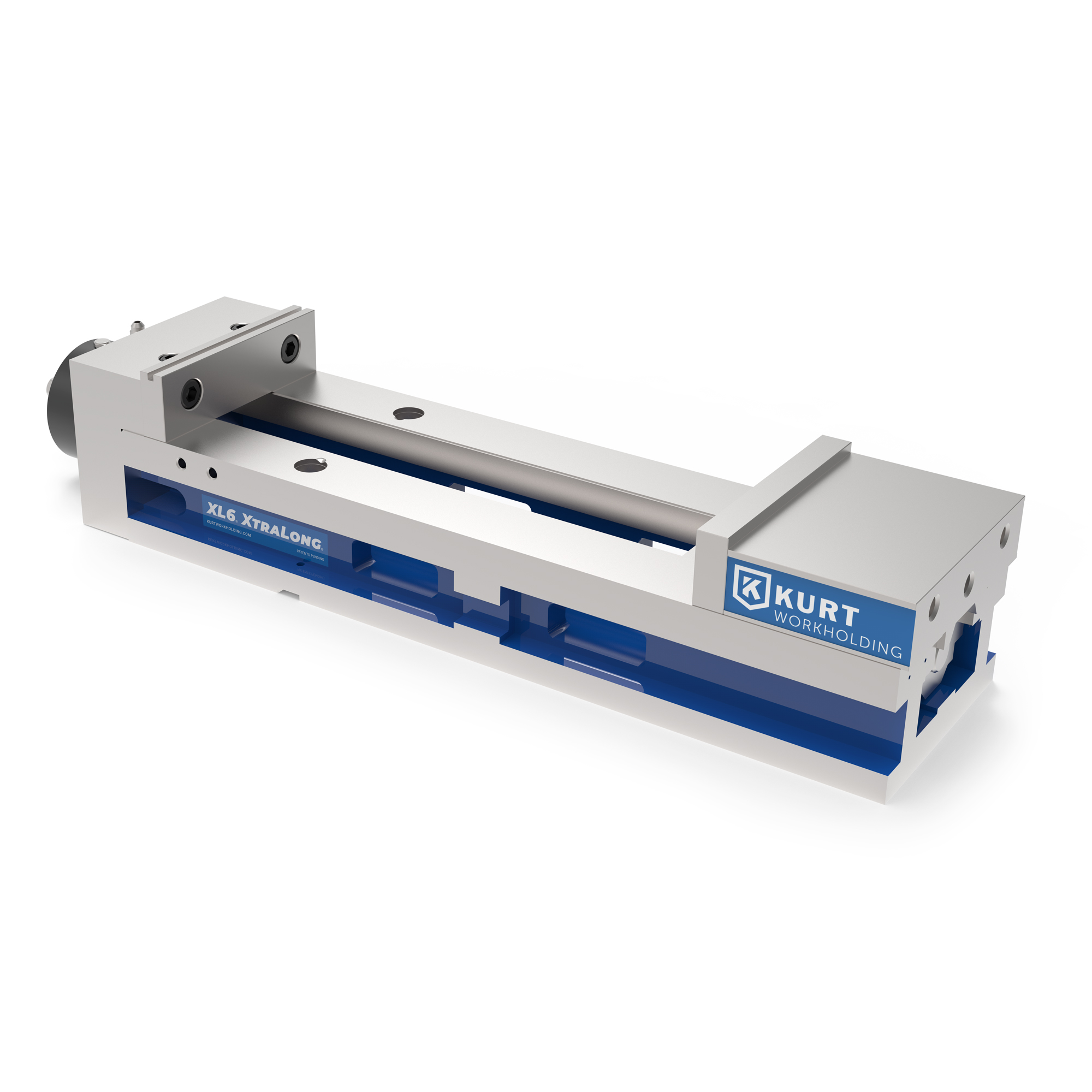

Kurt XL reverse hydraulic vises are designed for the clamping of extremely large parts for both die and CNC applications. The jaw openings provide up to 19.25″ of versatile jaw opening space. These precise locking reverse hydraulic vises are ideal for high horsepower “hogging out” operations. Kurt XL reverse hydraulic vises are accurate to within 0.001″ for precise, easy alignment in multiples. XL vises may be used as receivers for other workholding devices.

The newest reverse hydraulic vise models are capable of:

• Single acting with unclamp spring return, or double acting with hydraulic unclamp. Fittings for both configurations are included.
• Female threaded ports on body: 1/8″ NPT.
• Two Included adapters: Male 1/8” NPT to Male #4 JIC.

XL6HR Features

• Precision clamping force up to 7,350 Lbs.
• Jaw lift reduction due to AngLock design.
• Ductile iron body provides up to 80,000 lb.
• 6” jaw widths with jaw openings from 0″-14.50″ with a maximum of 19.25″ (in the outside jaw positions).
• “Pull-Type” clamping provides high precision and repeatability.
• Excellent for high horsepower “hogging out” applications.
• Part loading is safer and easier for the operator due to reverse model “reach-over” distance reduction. Also, part programming is simpler in the “Y” axis positive direction.
• Air, manual and hydraulic models available.
• Hydraulic and air feature a 1/4″ stroke.
• Air power option provides a “gentle touch” for delicate parts that is precise and repeatable.
• Available internal hex screw.
• Sine key or fixture key compatible

Mounting Instructions

Dimensional Data

Clamping Force Pounds
