Kurt Custom Engine Damper Gage – Inspection of Poly Vee

Our manually loaded custom gaging systems sample a production process. Our fully automated in-line gaging systems measures 100% of the parts produced on product

Request a Quote

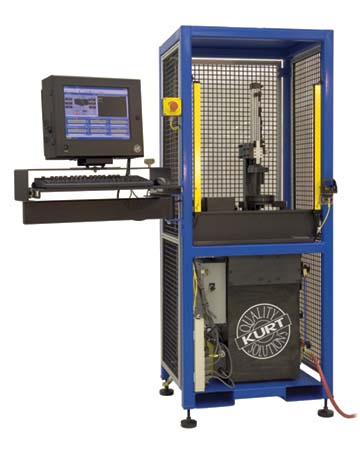

Kurt provides a variety Engine Damper Gage Stations that are designed and built to meet the demanding standards of automotive production. The Engine Damper Gage Stations can be designed to be manually loaded or fully automated. Engine Dampers can be measured a=in as little as 15 seconds per part.

Examples of Damper features measured include:

  • Damper ID Dimension
  • Damper Height Dimensions
  • Serpentine Belt teeth positions
  • Other required features

The fully automated gage designs include integrated powered or gravity conveyance systems or FANUC robot part handling. The part flow into and out of the gage is controlled by the gage station. In fully automated applications, 100% of the production is measured complete and discrepant parts are segregated from production flow.

The KurtSPC Premium software provides real-time feedback to the line operator and can be programmed to provide closed loop feedback to the machine tools or stop the line in certain fault conditions. Data can be stored locally for review and/or exported directly on a network.

Additional Features and Information:

  • 0.250mm Axial Runout of Poly Vee’s
  • 0.250mm Radial Runout of Poly Vee’s
  • .5 Minimum/ Maximum Flange thickness
  • .300mm Deck Height
  • 100% of Production Inspection
  • Part assist loading into nest
  • Machine tool feedback
  • Marks all parts accepted
  • Auto Load of Mandrel
  • 15 second cycle time
  • Runout of Poly Vee’s
  • Radial Runout of Poly Vee’s

Request more information or see the Kurt Engineered Systems engine gage and examples of all custom gages.
