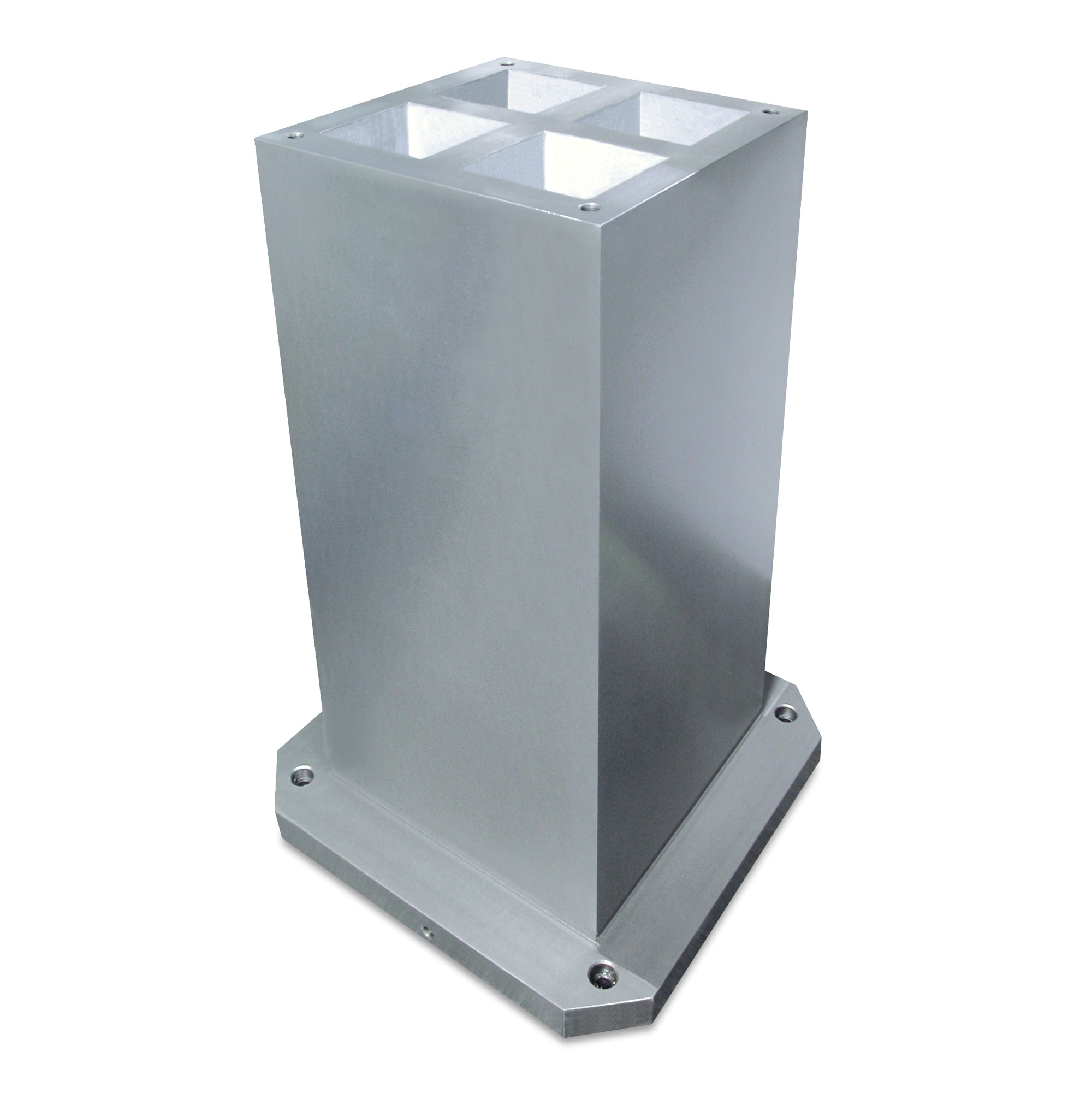

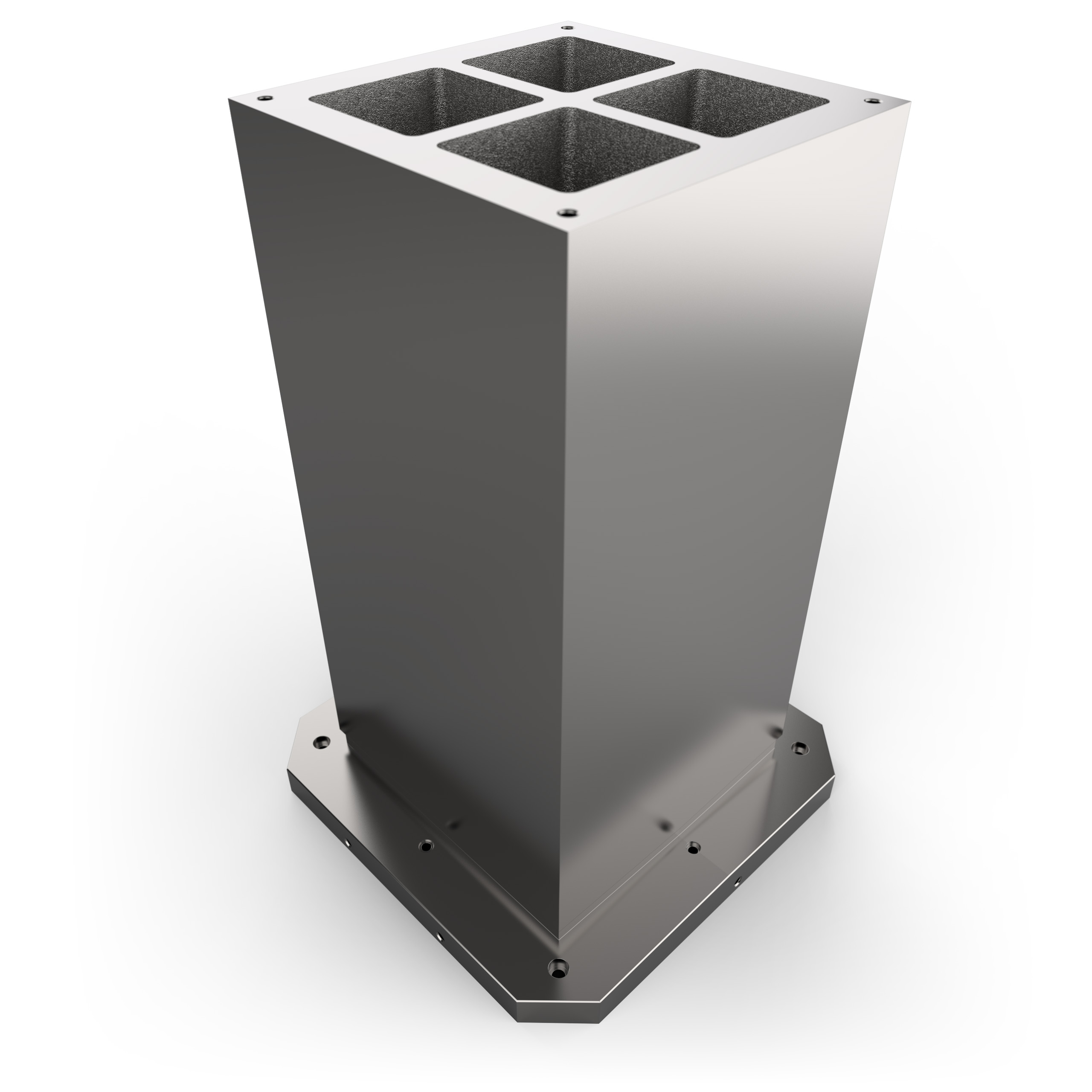

Kurt Cast Iron, 4 face, 630 mm Base – TB4C61818
Part No. TB4C61818
$8,580.00
Cast Iron, 4 face, 630 mm Base

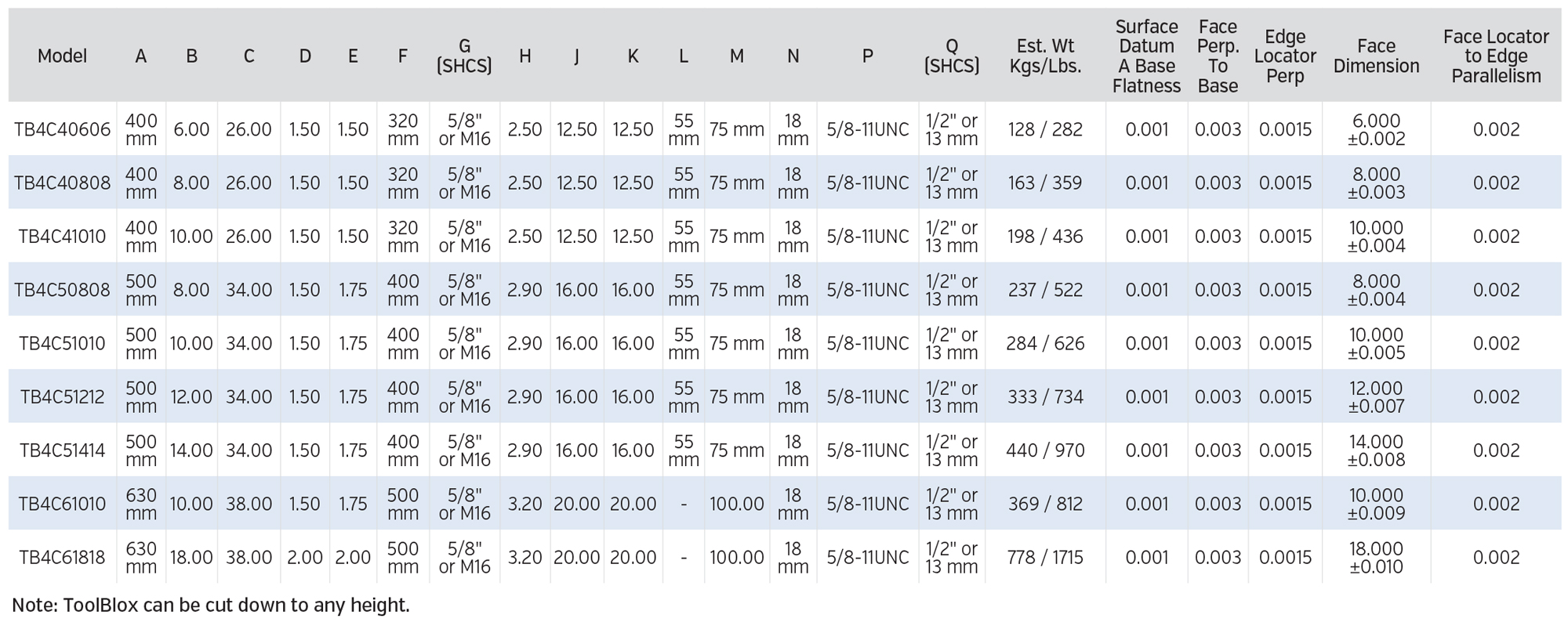

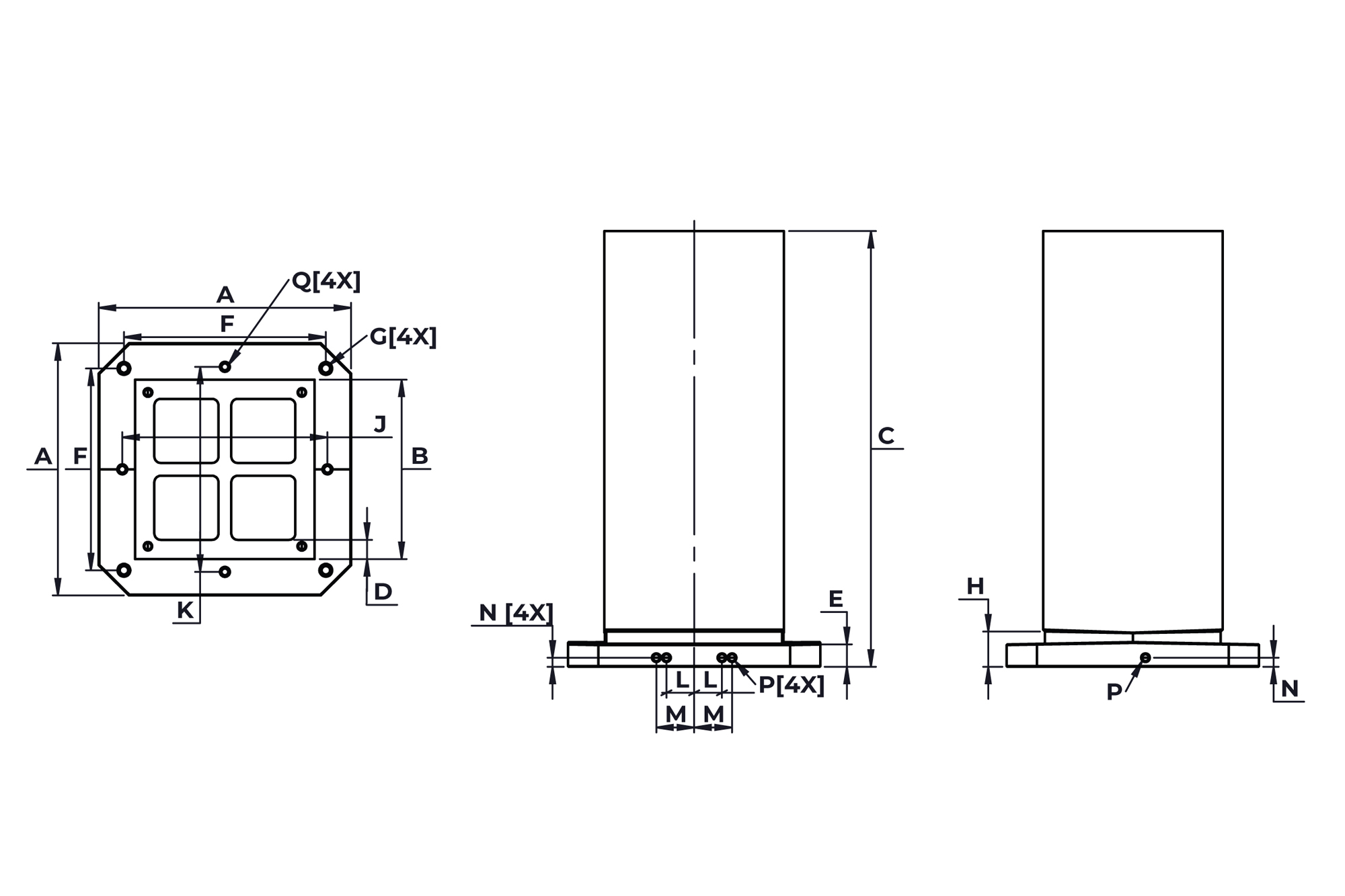

Dimensional Data
Dimensional Data
| Dimension | Inches unless noted |
| A | 630 mm x 630 mm |
| B | 18.00 |
| C | 38.00 |
| D | 2.00 |
| E | 2.00 |
| F | 500 mm |
| G (SHCS) | 5/8" or M16 |
| H | 3.20 |
| J | 20.00 |
| K | 20.00 |
| L | - |
| M | 100 mm |
| N | 18 mm |
| P | 5/8-11UNC |
| Q (SHCS) | 1/2" or 13 mm |
| Est. Weight | 778 Kgs/1715 Lbs |
| Surface Datum A Base Flatness | 0.001 |
| Face Perp. To Base | 0.003 |
| Edge Locator Perp. | 0.0015 |
| Face Dimension | 18.000 ±0.010 |
| Face Locator to Edge Parallelism | 0.002 |
