Kurt 3-In-One System Jaw Plates – KSJ8

Part No. KSJ8

$812.00

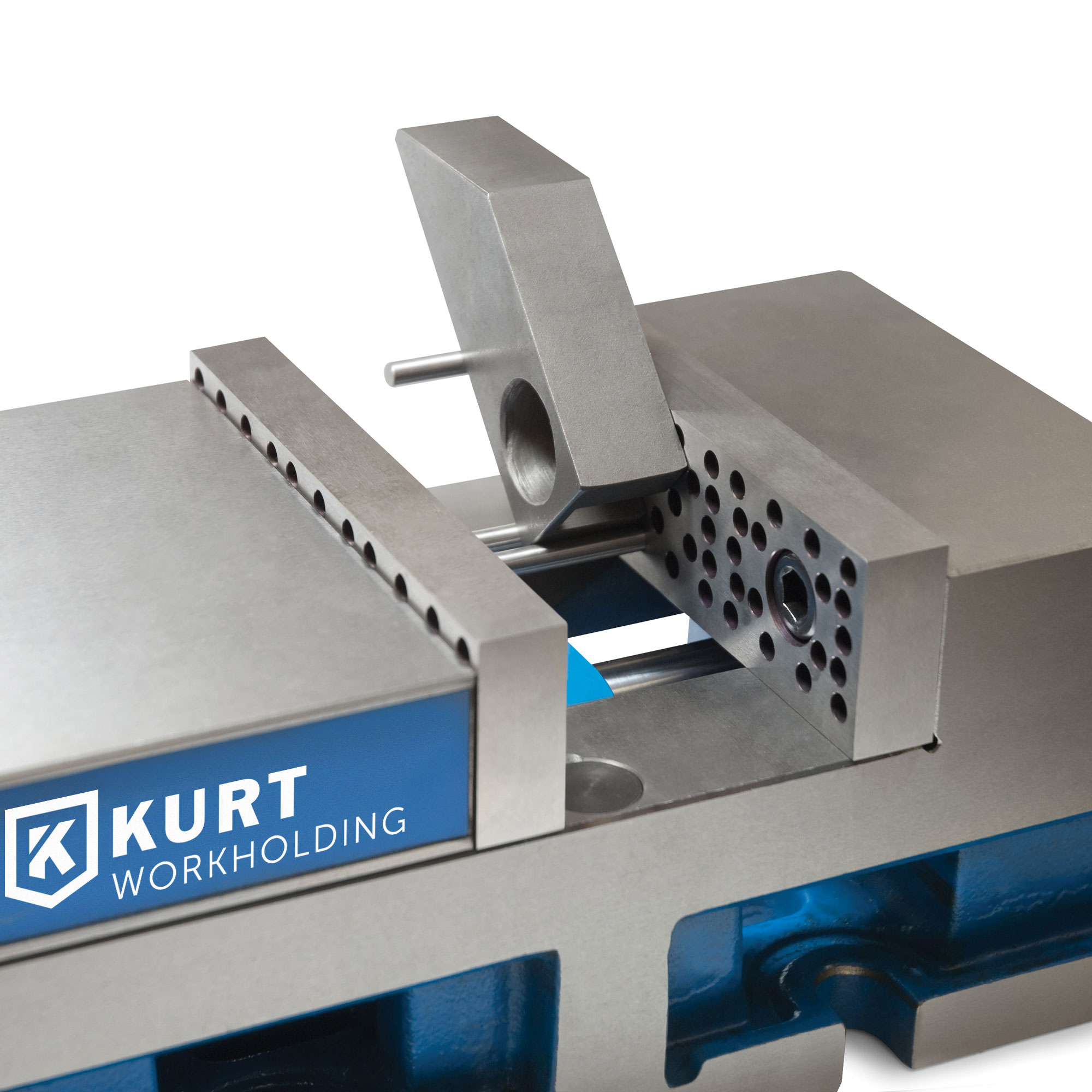

3-In-One System Jaw Plates

Description

Description

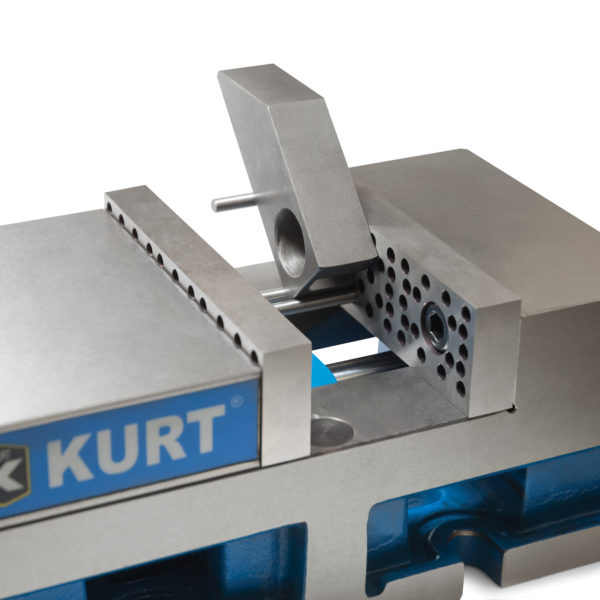

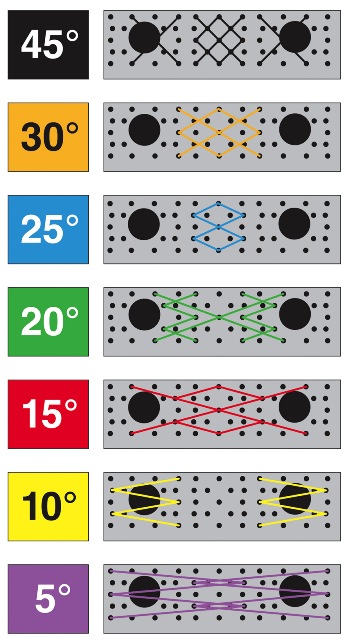

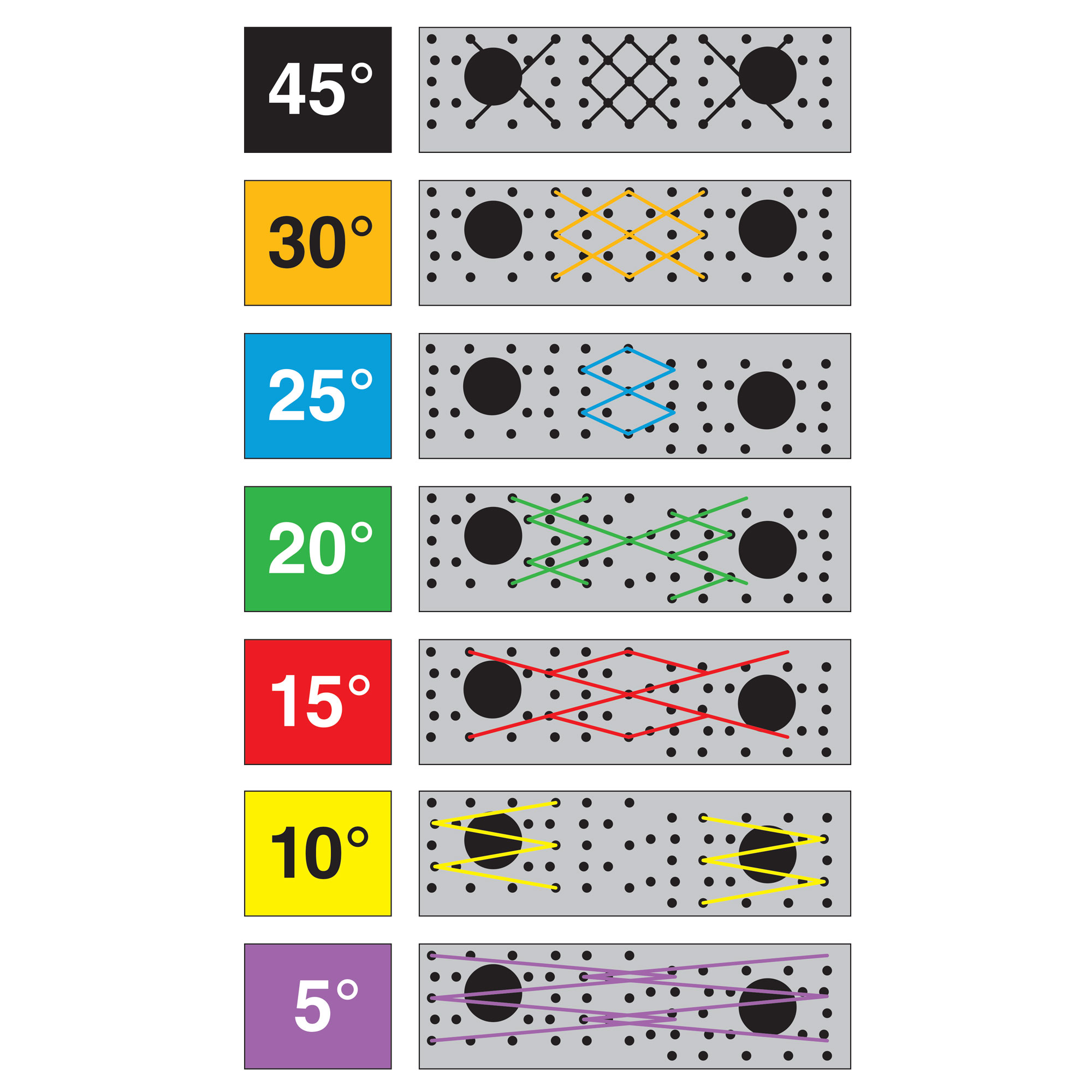

  • 7 preset angles built-into the jaw plates  (5°, 10°, 15°, 20°, 25°, 30°, 45°)
    • Tolerance between holes is + or – 0.0004″ (0.01mm)
  • Eliminates time consuming set ups
  • Jaw dimensions are 8″ x 2.20″ x 1.075″ (+ or – 0.000787″ (0.02mm))

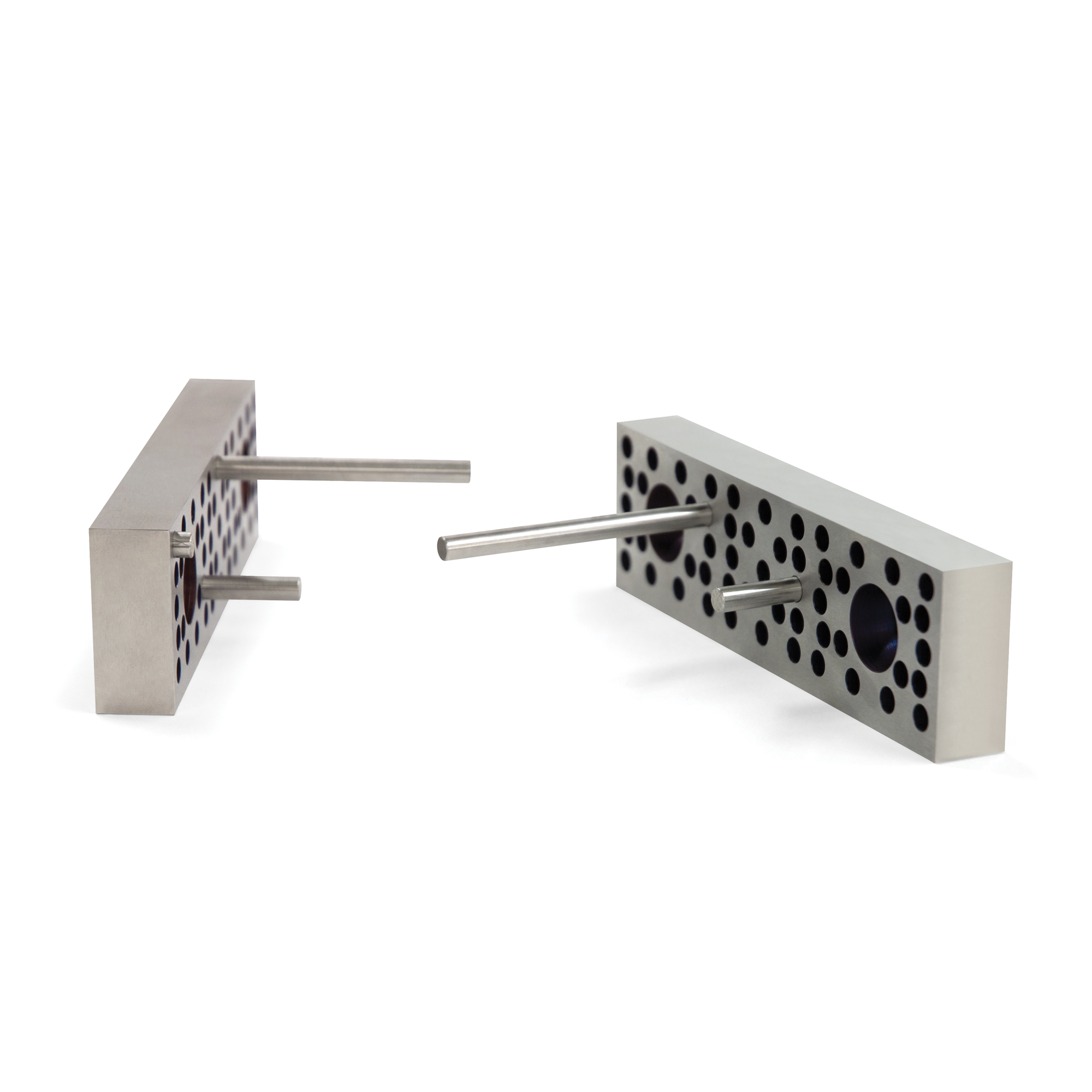

  • Sets include:
    • 2 each jaw plates
    • 4 each pins 6mm x 22mm (0.87″)
    • 3 each pins 6mm x 40mm (1.58″)
    • 3 each pins 6mm x 58mm (2.28″)
    • 3 each pins 6mm x 76mm (2.99″)
      • Tolerance + or – 0.0007″ (0.018mm)
  • Doubles as a convenient workstop

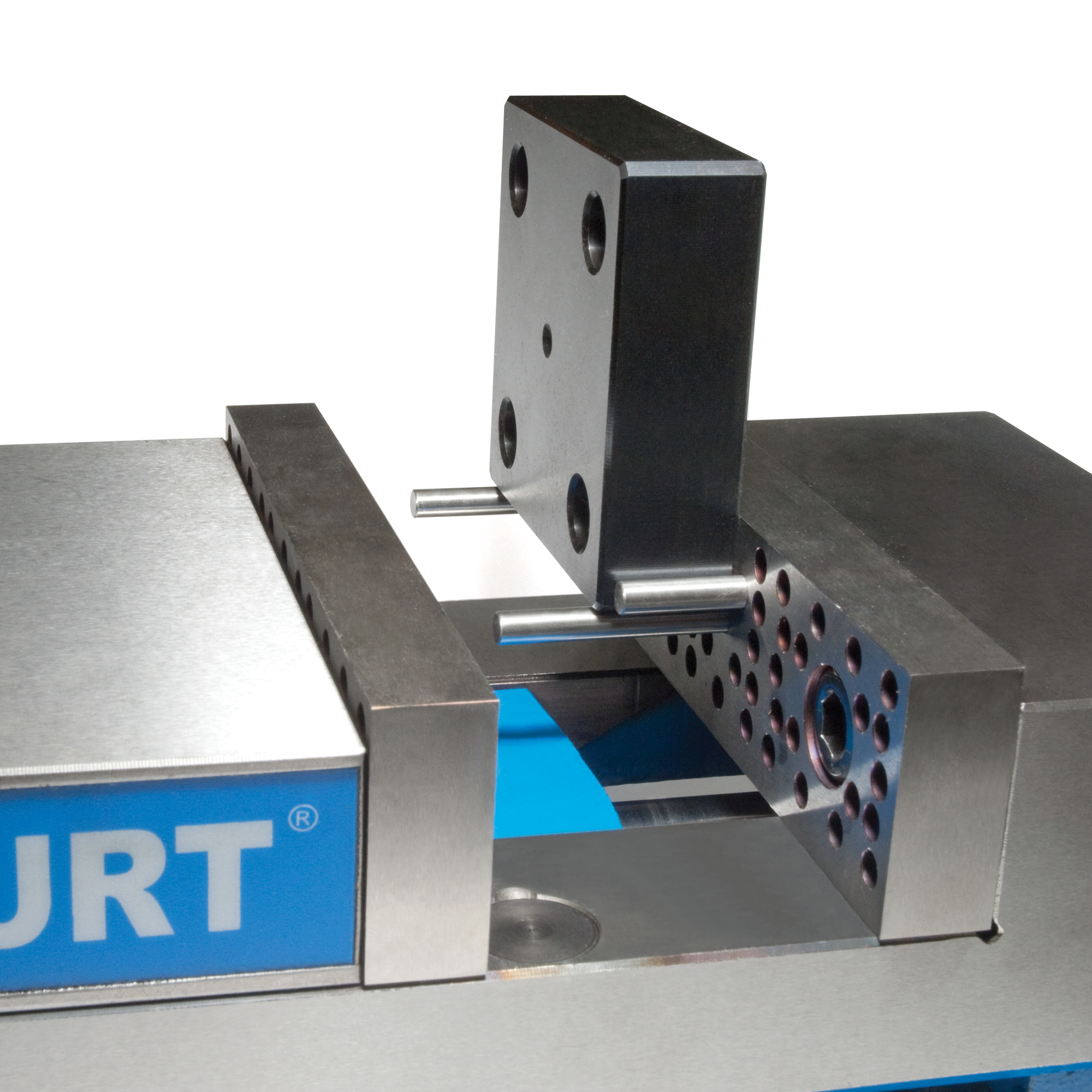

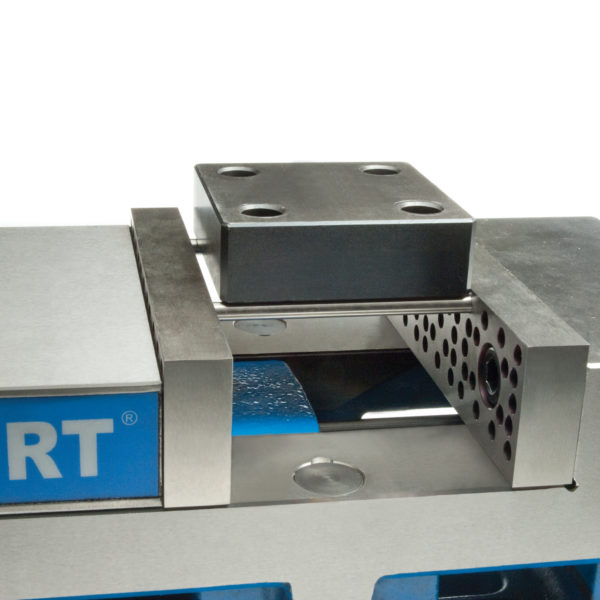

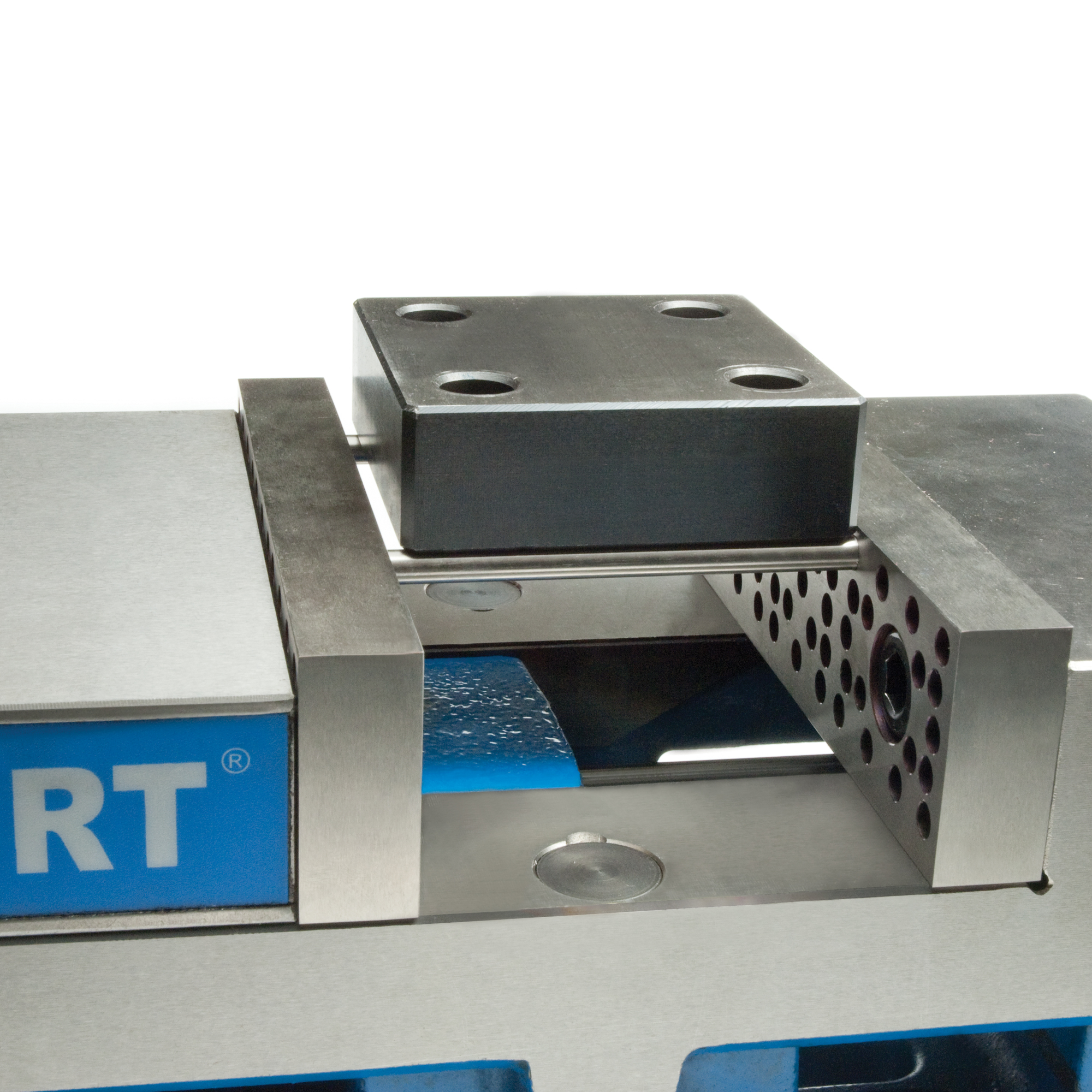

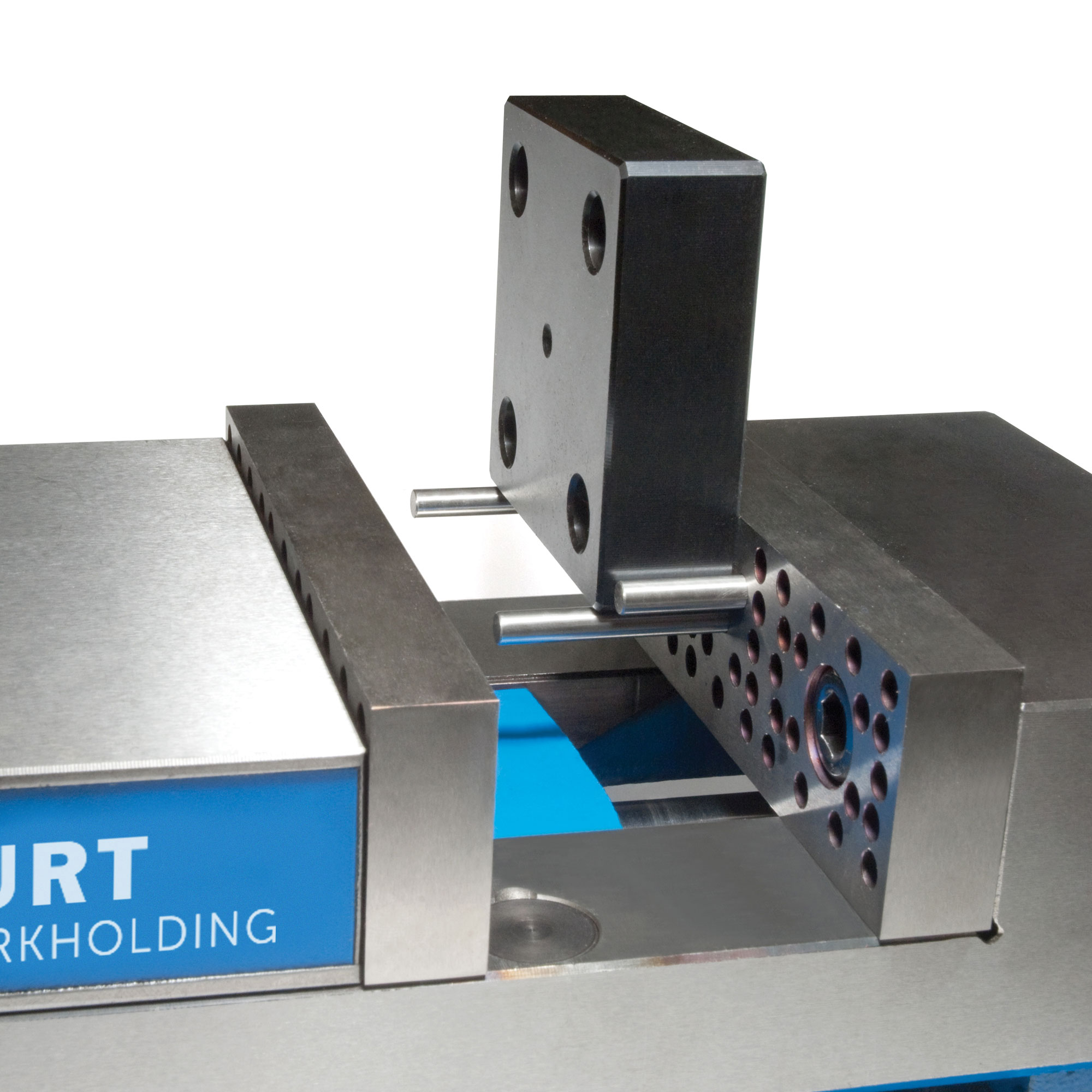

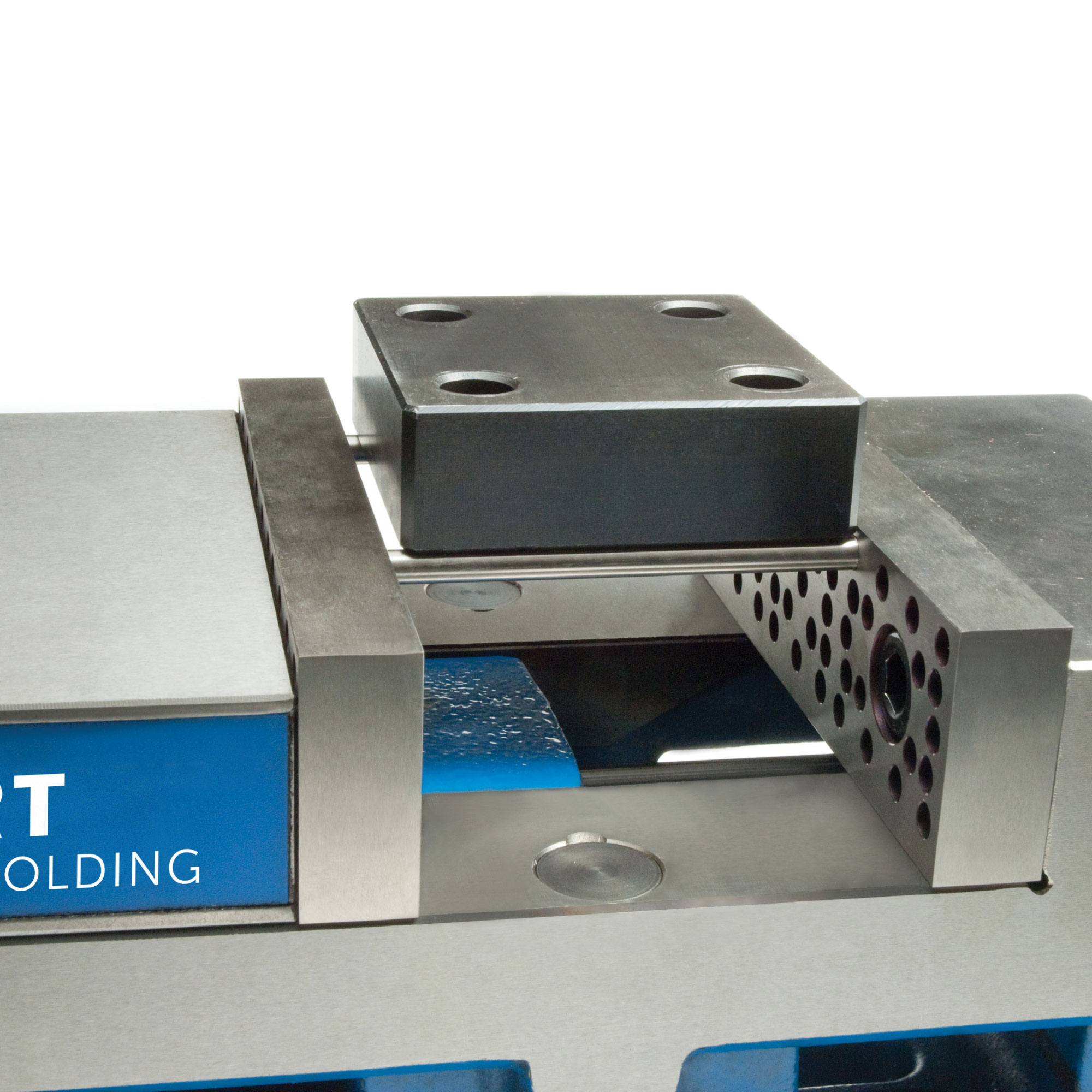

  • Triples as a parallel
  • Does the work of 3 different products!
  • Made is Switzerland
