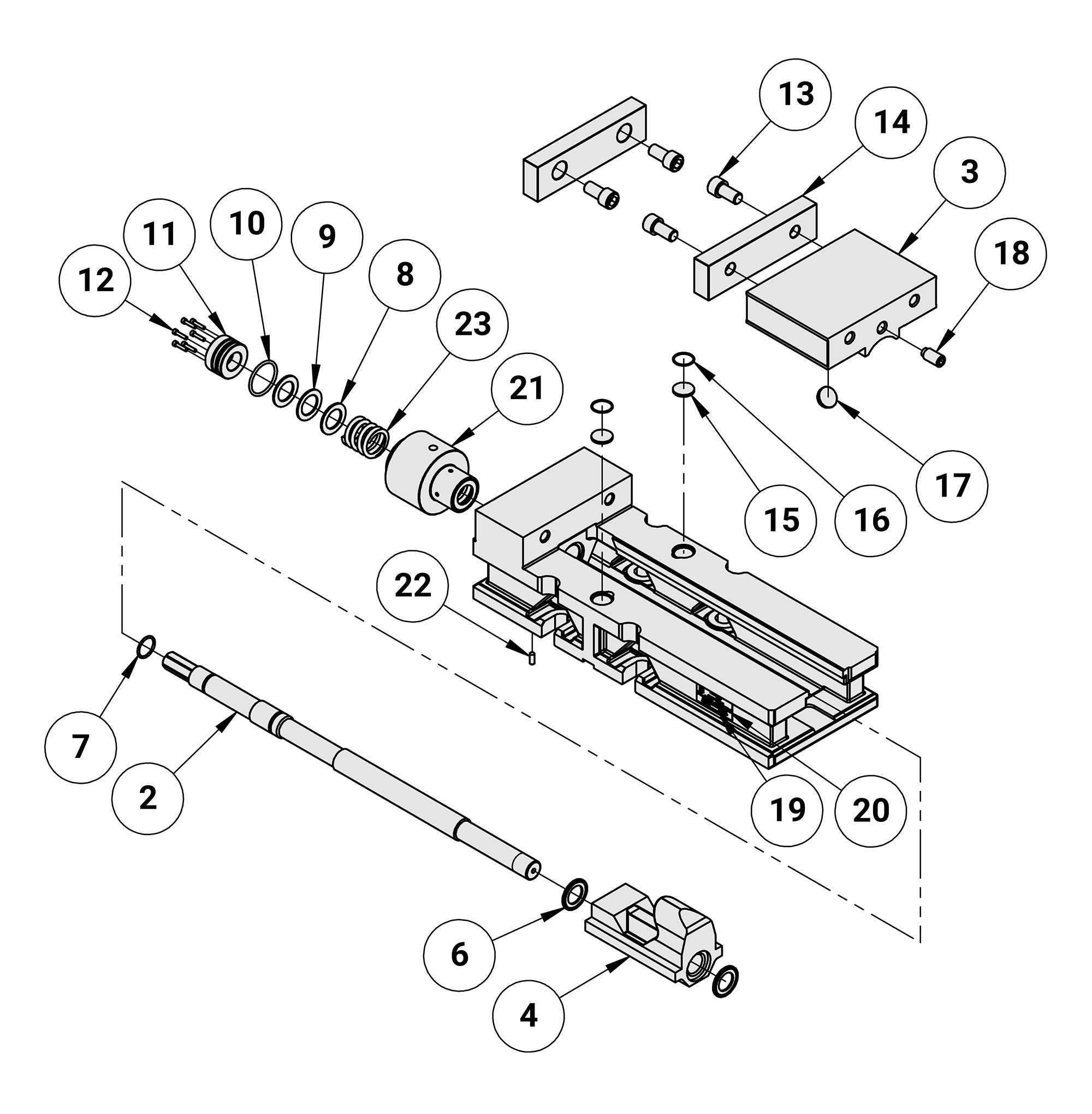

3810H Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
00Kurt Compression Spring - 8BHU-878BHU-87$26.00
21Kurt Screw - 3810H-5-CP3810H-5-CP$420.00
41Kurt Nut, Machined - 3810V-33810V-3$104.00
31Kurt Movable Jaw - 3800V-23800V-2$396.00
131Kurt Retaining Nut, 2 piece - 3800V-83800V-8$50.00
91Kurt Hydraulic Clamping Unit - 8BHU-P8BHU-P$818.00
71Kurt O-Ring, #121 - 3800V-993800V-99$4.00
172Kurt Protective Plug - 3800V-1913800V-191$6.00
121Kurt O-Ring, #224 - 3800V-1283800V-128$4.00
182Kurt O-Ring, Buna N, #022 - DL430-68DL430-68$3.00
62Kurt Internal Brush Seal - PT800-211PT800-211$8.00
191Kurt Spherical Segment - D80-9D80-9$6.00
162Kurt Jaw Plate, 8" - D80-7D80-7$100.00
102Kurt Thrust Bearing Washer - D80-42D80-42$5.00
201Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$14.00
81Kurt Screw, SHSS, 1/4-20 X 3/4 - 01-327801-3278$4.00
154Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$4.00
146Kurt Screw, SHCS, #8-32 X 3/4 - 00-119700-1197$2.12
