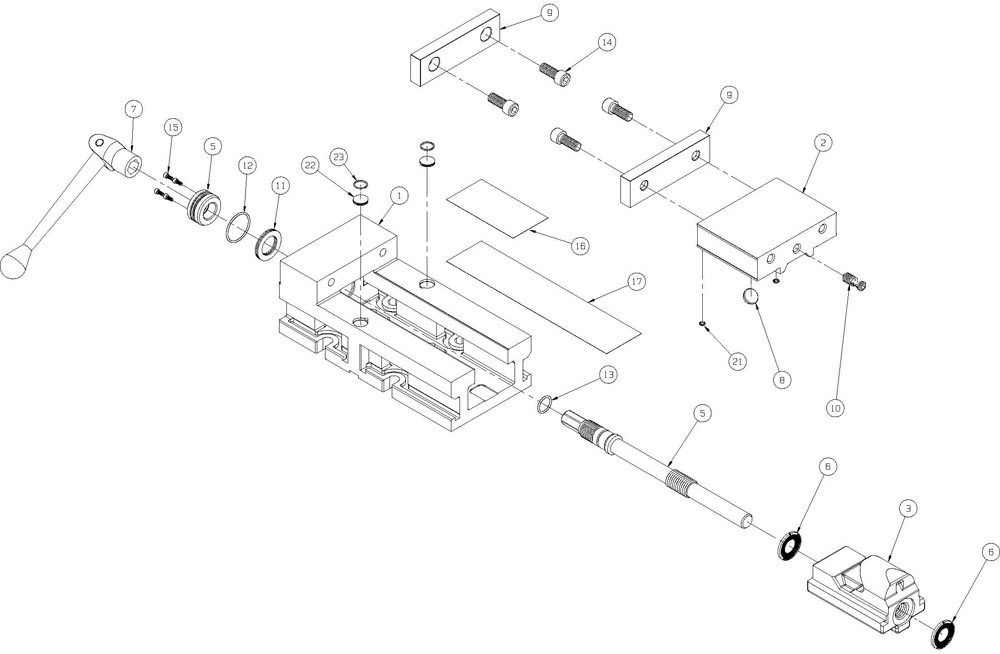

3630V Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
81Kurt Spherical Segment - D60-9D60-9$8.00
92Kurt Jaw Plate, 6" - D60-7D60-7$46.00
71Kurt Handle Assembly - D60I-10-SAD60I-10-SA$38.00
41Kurt Screw, Reverse Short - 3630V-53630V-5$143.00
31Kurt Nut, Reverse w/ Brush Seals - 3610V-33610V-3$116.00
131Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$5.00
111Kurt Thrust Bearing Assembly - 3600V-723600V-72$10.00
171Kurt Chip Guard, Long - 3600V-2493600V-249$8.00
161Kurt Chip Guard, Short - 3600V-2483600V-248$6.00
62Kurt Internal Brush Seal - 3600V-2113600V-211$9.00
21Kurt Movable Jaw - 3600V-23600V-2$246.00
222Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$5.00
121Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$5.00
144Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$5.00
154Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$5.00
