3610H Replacement Parts

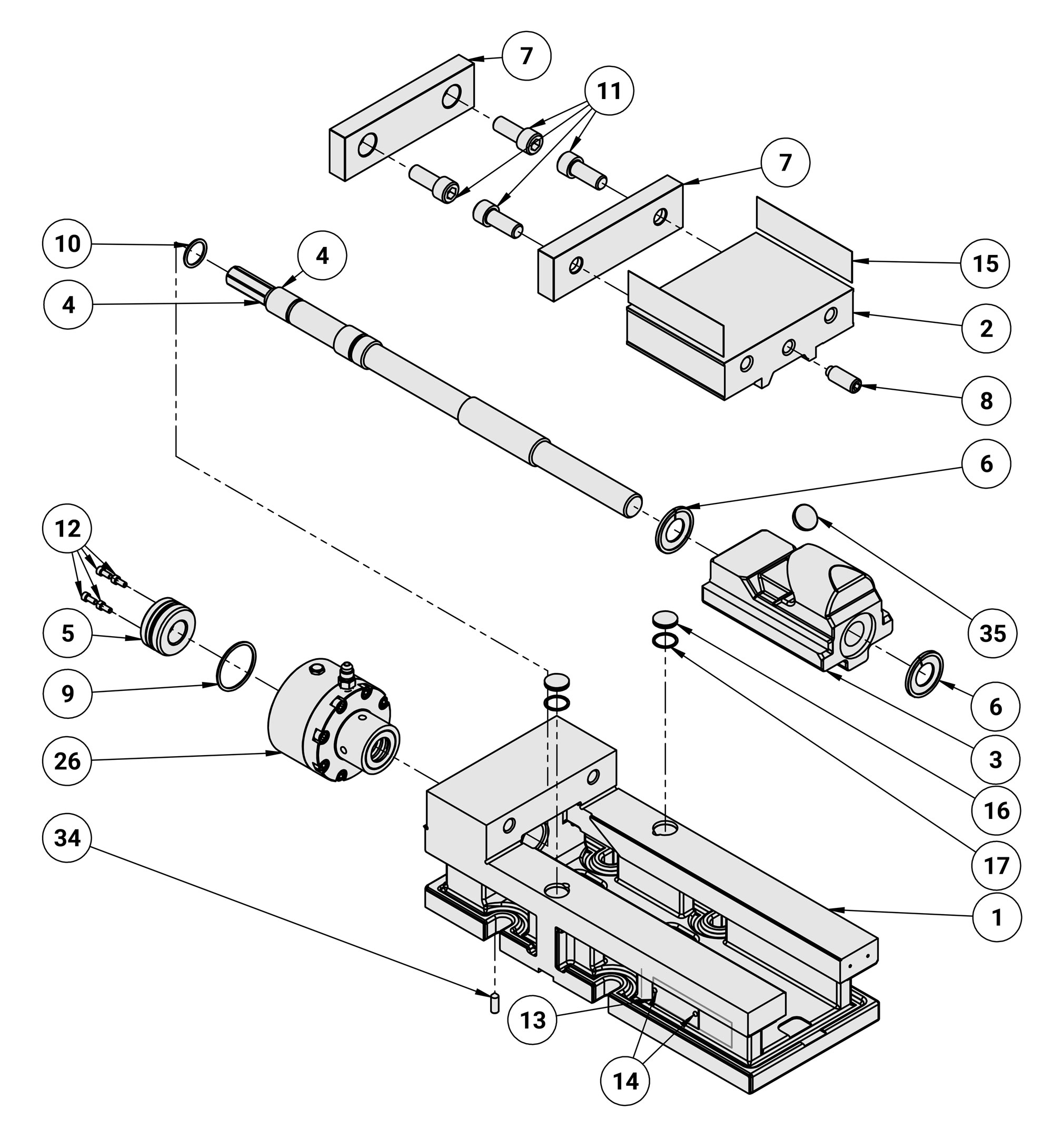

Kurt 3610H Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
1523600V-111 LABEL3600V-111$6.00
142Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$7.00
261Kurt 6" Hydraulic Unit - KHU6KHU6$1,002.00
62Kurt Internal Brush Seal - PT400-211PT400-211$12.00
351Kurt Spherical Segment - D60-9D60-9$11.00
72Kurt Jaw Plate, 6" - D60-7D60-7$56.00
0Kurt Handle Assembly - D50-10A-SAD50-10A-SA$133.00
41Kurt Screw, Reverse, Short - 361HU-5-CP361HU-5-CP$710.00
0Kurt Retaining Nut, 2-Piece (Reverse) - 3610V-83610V-8$63.00
31Kurt Nut, Reverse w/ Brush Seals - 3610V-33610V-3$140.00
101Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$7.00
51Kurt Retaining Nut, 2-Piece - 3600V-8-P3600V-8-P$25.00
0Kurt Chip Guard, Long - 3600V-2493600V-249$11.00
0Kurt Chip Guard, Short - 3600V-2483600V-248$9.00
0Kurt Internal Brush Seal - 3600V-2113600V-211$12.00
21Kurt Movable Jaw - 3600V-23600V-2$295.00
162Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$7.00
91Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$7.00
0Kurt O-Ring, Buna N, 008 - 225-01225-01$7.00
81Kurt Screw, SHSS, 1/2-13 X 1-1/4 - 01-393801-3938$10.00
341Kurt Screw, SHSS, 1/4-20 X 3/4 - 01-327801-3278$9.00
0Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$7.00
114Kurt Screw, 1/2-13NC X 3/4 Long - 00-141400-1414$7.00
124Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$7.00
