3400V Replacement Parts

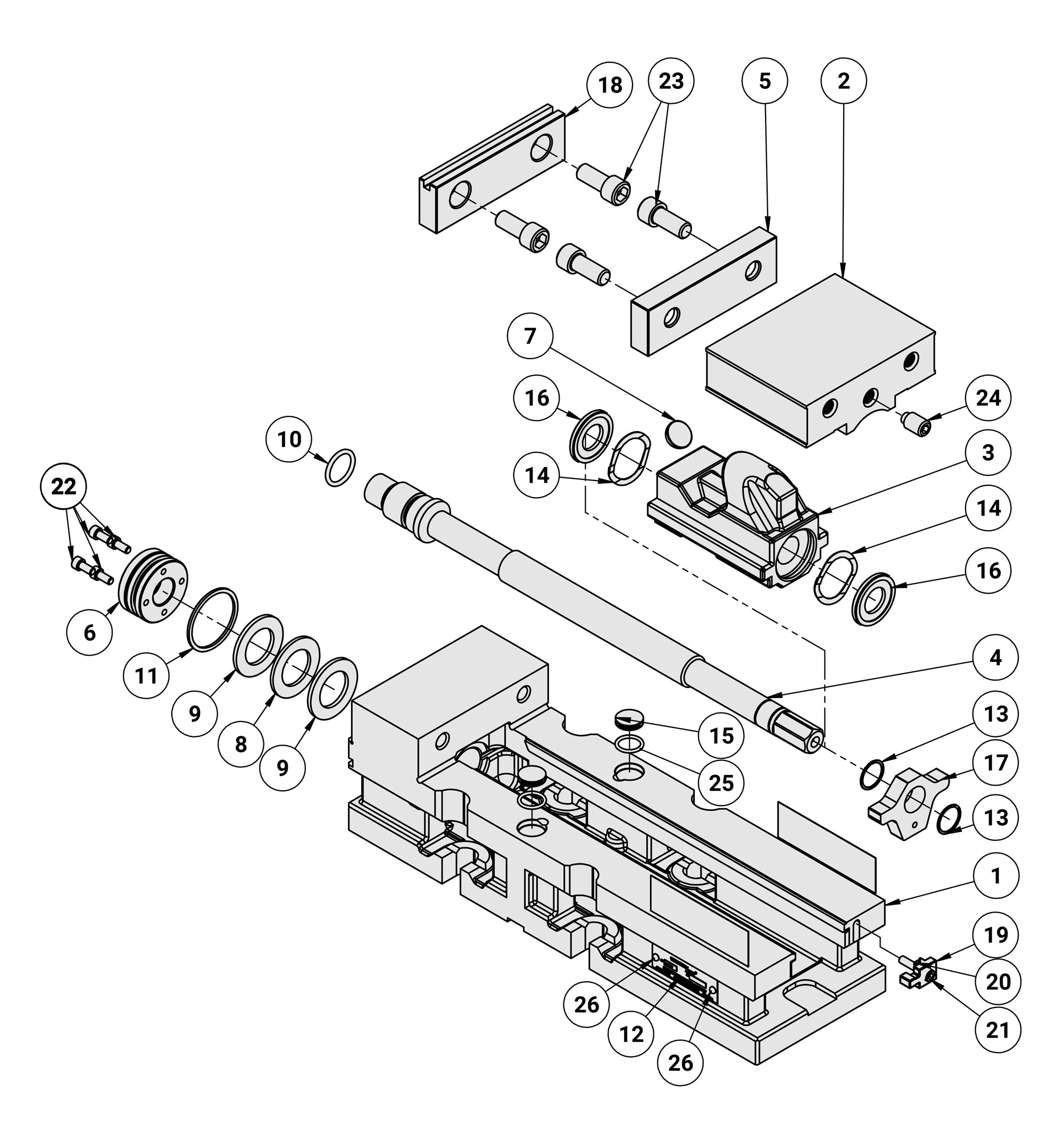

Kurt 3400V Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
272DX4-111 DX4 LABELDX4-111$6.00
1Kurt Repair Kit - 3400V-KIT23400V-KIT2$42.00
1Kurt Repair Kit - 3400V-KIT13400V-KIT1$41.00
81Kurt Thrust Bearing - 3400V-413400V-41$7.00
142Kurt Wave Spring - DX4-169DX4-169$7.00
31Kurt Nut - DX4-3DX4-3$58.00
1Kurt Handle Assembly - D40I-10-SAD40I-10-SA$48.00
92Kurt Thrust Washer - 3400V-423400V-42$7.00
234Kurt Screw, SHCS, 3/8-16 X 7/8 Long - 00-135300-1353$7.00
152Kurt Protective Plug - 3400V-1913400V-191$10.00
132Kurt Spiral Retaining Ring - 3400V-1473400V-147$7.00
241Kurt SHSS HDOG 3/8-16 x 0.625 - 01-390601-3906$24.00
61Kurt Retaining Nut, 2 piece - 3400V-8-CP3400V-8$47.00
41Kurt Screw - 3400V-5A3400V-5A$125.00
171Kurt Screw Support - 3400V-224-CP3400V-224$38.00
111Kurt O-Ring, Buna, #125 - HDHLM4-96HDHLM4-96$7.00
181Kurt Jaw Plate w/ Groove - D40-315D40-315$87.00
191Kurt Workstop Assembly - WSRL46WSRL46$27.00
162Kurt Internal Brush Seal - PT400-211PT400-211$12.00
21Kurt Movable Jaw - DL430-2DL430-2$158.00
1Kurt Chip Guard, Long - DL400-249DL400-249$11.00
1Kurt Chip Guard, Short - DL400-248DL400-248$10.00
71Kurt Spherical Segment - D40-9D40-9$9.00
51Kurt Jaw Plate, 4" - D40-7D40-7$58.00
252Kurt Drawbar O-Ring, Buna N, #014 - 605-02605-02$7.00
101Kurt O-Ring, #115 - 3600AA-683600AA-68$7.00
224Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$7.00
