TL6CS Replacement Parts

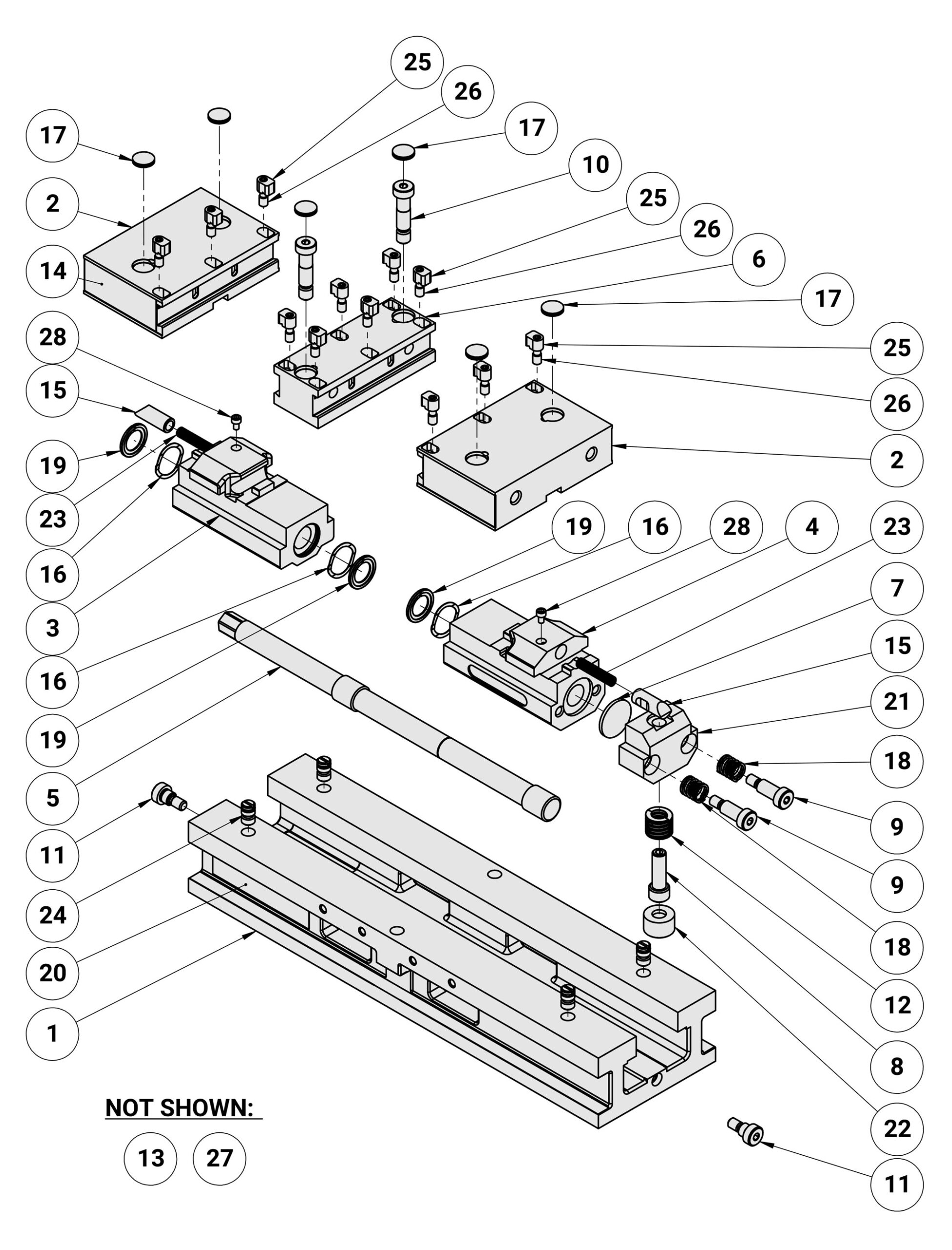

TriLock TL6CS Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
61TL6CS CARVESMART Stationary Jaw Assembly- TL6CS-6-SATL6CS-6-SA$423.00
21TL6CS CARVESMART Movable Jaw Assembly - TL6CS-2-SATL6CS-2-SA$366.00
1TL6 Vise Screw and Nut Assembly - TL6-3-SATL6-3-SA$517.00
2512TL6CS Vise CARVESMART Clamp Nut - 8000780007$16.00
244TL6 Vise Body Plug 1/2 inch - TL6-292TL6-292$7.00
221TL6 Vise Friction Shoe - TL6-225TL6-225$22.00
211TL6 Vise Holding Block - TL6-224TL6-224$49.00
182TL6 Vise Holding Block Preload Spring - TL6-197TL6-197$7.00
121TL6 Vise Friction Shoe Spring - TL6-87TL6-87$29.00
112TL6 Vise Screw Assembly Shoulder Screw - TL6-21TL6-21$7.00
92TL6 Vise Holding Block Preload Shoulder Screw 1/2-13 - TL6-19TL6-19$7.00
102TL6 Vise Stationary Jaw Shoulder Screw 1/2-13 - TL6-20TL6-20$56.00
81TL6 Vise Shoulder Screw 1/2-20 UNF X 1.5 Lg Modified - TL6-18TL6-18$35.00
71TL6 Vise Protecting Plug - TL6-14TL6-14$11.00
61TL6CS CARVESMART Stationary Jaw - TL6CS-6TL6CS-6$183.00
51TL6 Vise Screw - TL6-5TL6-5$92.00
41TL6 Vise Rear Nut - TL6-3RTL6-3R$224.00
31TL6 Vise Front Nut - TL6-3FTL6-3F$221.00
22TL6CS CARVESMART Movable Jaw - TL6CS-2TL6CS-2$239.00
2612Clamp Screw - 4" and 6" jaws - 8000380003$7.00
272Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$7.00
163Kurt Wave Spring - DX6-169DX6-169$7.00
1Kurt Handle Assembly, Long Socket - D60XI-10-SAD60XI-10-SA$52.00
152Kurt Spring Guide, Metric - HDM6-142HDM6-142$14.00
232Kurt Compression Spring - HD6-267HD6-267$10.00
193Kurt Internal Brush Seal - D688-211D688-211$12.00
176Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$7.00
282Kurt Screw, SHCS, M5 X .8 X 6mm LG - 26-008226-0082$7.00
