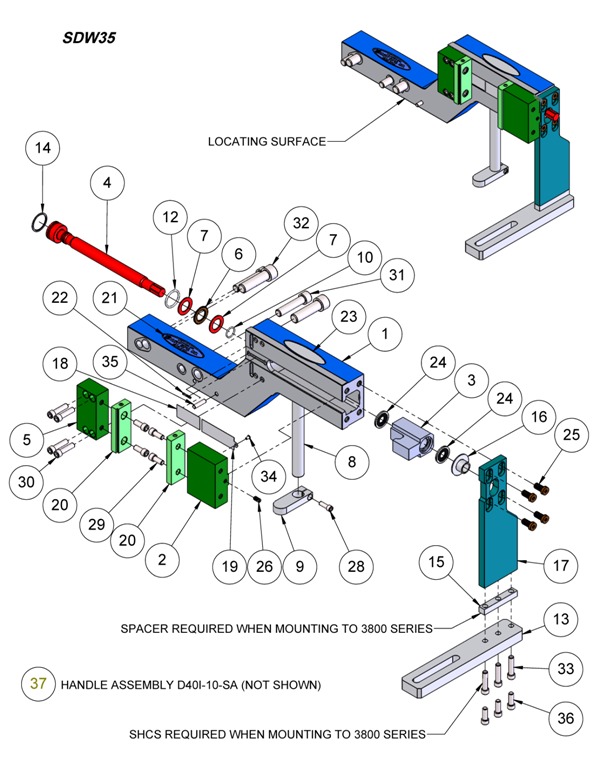

SideWinder™ SDW35

CalloutQty NeededNamePart No.PriceBuy
0Kurt Compression Spring - SDW35-311SDW35-311$8.00
Kurt Handle Assembly - D40I-10-SAD40I-10-SA$41.00
363Kurt 5/16-18 X .875 LG SHCS - 00-132200-1322$6.00
351Kurt 1/4- X 1.00LG DOWEL PIN - 04-004304-0043$6.00
254Kurt 3/8-16 X .75LG. LHCS - 00-335200-3352$6.00
242Kurt Brush seal - MX350-211MX350-211$17.00
181Kurt Chip Guard, Long - SDW35-249SDW35-249$7.00
191Kurt Chip Guard Short - SDW35-248SDW35-248$8.00
171Kurt Retaining Plate - SDW35-227SDW35-227$80.00
161Kurt Screw Support Washer - SDW35-224SDW35-224$9.00
151Kurt Spacer Plate - SDW35-186SDW35-186$44.00
141Kurt Retaining Ring - SDW35-147SDW35-147$6.00
121Kurt O-Ring, Buna-N 90 DUR #021 - SDW35-119SDW35-119$6.00
91Kurt Work Stop - SDW35-85SDW35-85$42.00
81Kurt Rod, workstop - SDW35-58SDW35-58$23.00
51Kurt Stationary Jaw - SDW35-6SDW35-6$205.00
41Kurt Screw - SDW35-5SDW35-5$102.00
31Kurt Nut - SDW35-3SDW35-3$113.00
21Kurt Movable Jaw - SDW35-2SDW35-2$304.00
281Kurt Screw, SHCS,1/4-20 X 3/4 - 00-129000-1290$6.00
202Kurt Jaw Plate, Stepped - ML35-32-CPML35-32-CP$118.00
341Kurt Screw, BHCS, #6-32NC X 1/4 - 03-011003-0110$6.00
322Kurt Screw, SHCS, 5/8-11 X 2-1/4 - 00-148600-1486$7.00
312Kurt Screw, SHCS, 1/2-13 X 2-1/4 - 00-142400-1424$7.00
294Kurt Screw, SHCS, 5/16-18 X 3/4 Long - 00-132100-1321$6.00
