705-00 Head Assembly Replacement Parts - Short Handle

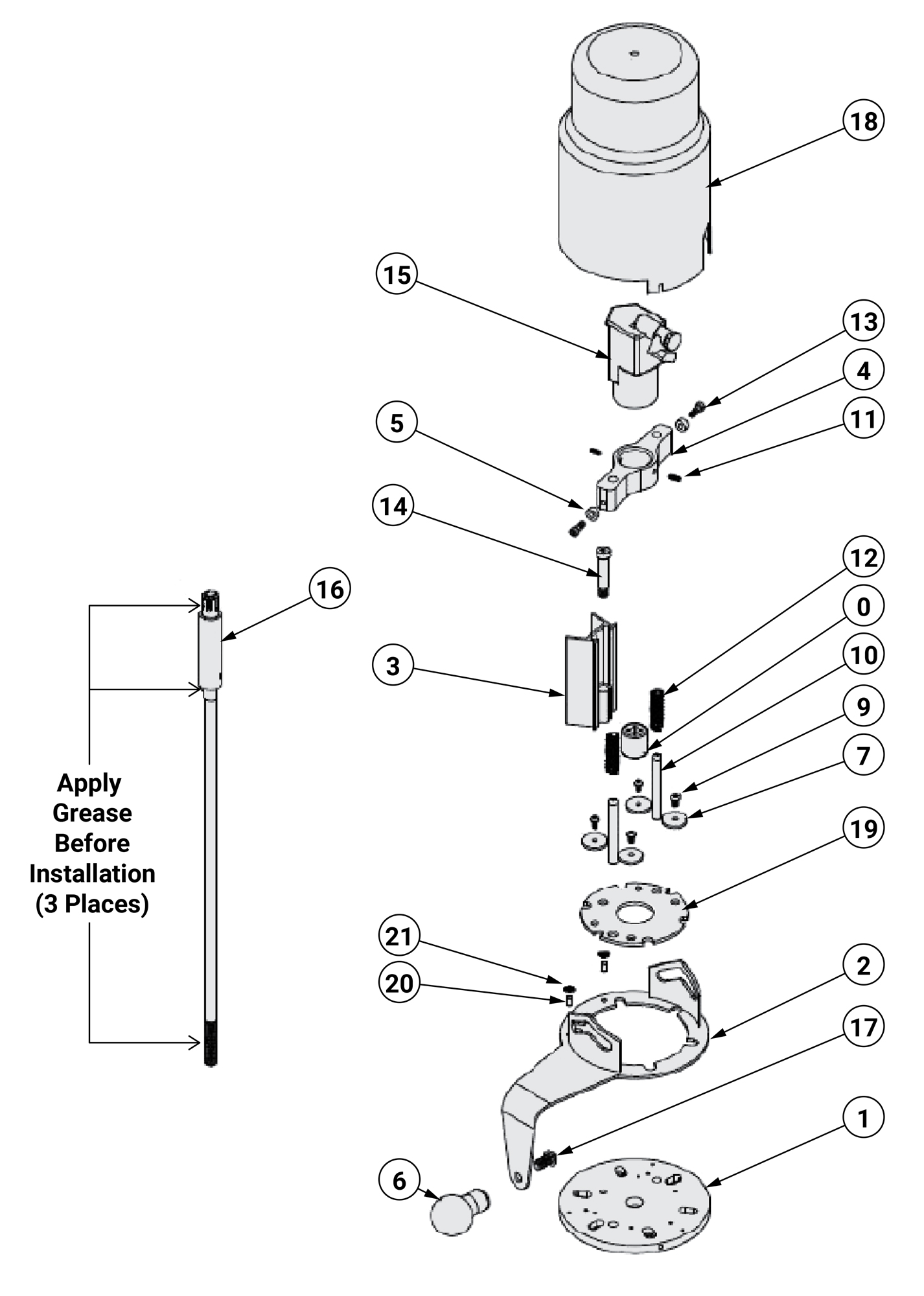

PowerLock Mechanical Drawbar Illustration
CalloutQty NeededNamePart No.PriceBuy
191Kurt Pivot Plate Assembly - 700-32700-32$25.00
11Kurt Base, Assembly,Universal - 700-31700-31$134.00

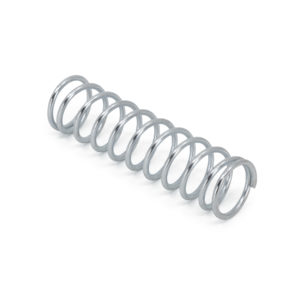

122Kurt Compression Spring - 700-15700-15$9.00
181Kurt Cover - 700-08-SA700-08-SA$86.00

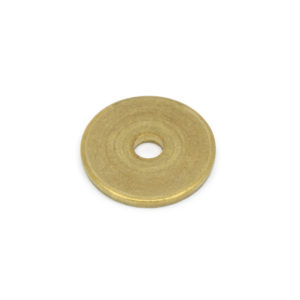

74Kurt Brass Holding Washer - 700-07700-07$9.00
61Kurt Mechanical Drawbar, Knob - 700-06700-06$11.00
52Kurt Roller, Guide - 700-05700-05$12.00

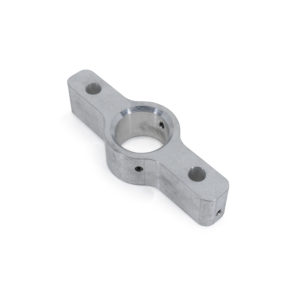

41Kurt Slide - 700-04-2700-04-2$68.00
21Kurt Pivot Plate Assembly - 700-02700-02$83.00
31Kurt Trip Lever - 700-003700-003$38.00
212Kurt O-Ring, Buna N, 008 - 225-01225-01$7.00
151Kurt Impact Wrench, FP-720B, Mechanical - 212-6000212-6000$297.00
81Kurt Socket - 208-00208-00$22.00

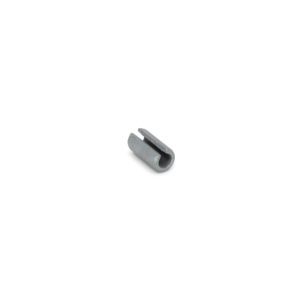

202Kurt Pin, Roll, 3/16 DIA x 3/8 - 04-424204-4242$7.00
102Kurt Pin, Dowel, 3/8 DIA X 3.0 - 04-007704-0077$9.00
141Kurt Screw, SHDLR, 3/8 X 1-1/2 - 03-212503-2125$29.00
138Kurt Screw, SHDLR, 1/4 X 1/4 - 03-210003-2100$9.00
94Kurt Screw, BHCS, 10-24 X 1/2 - 03-052503-0525$7.00
171Kurt Screw, BHCS, 3/8-16 X 3/4 - 03-015003-0150$7.00
