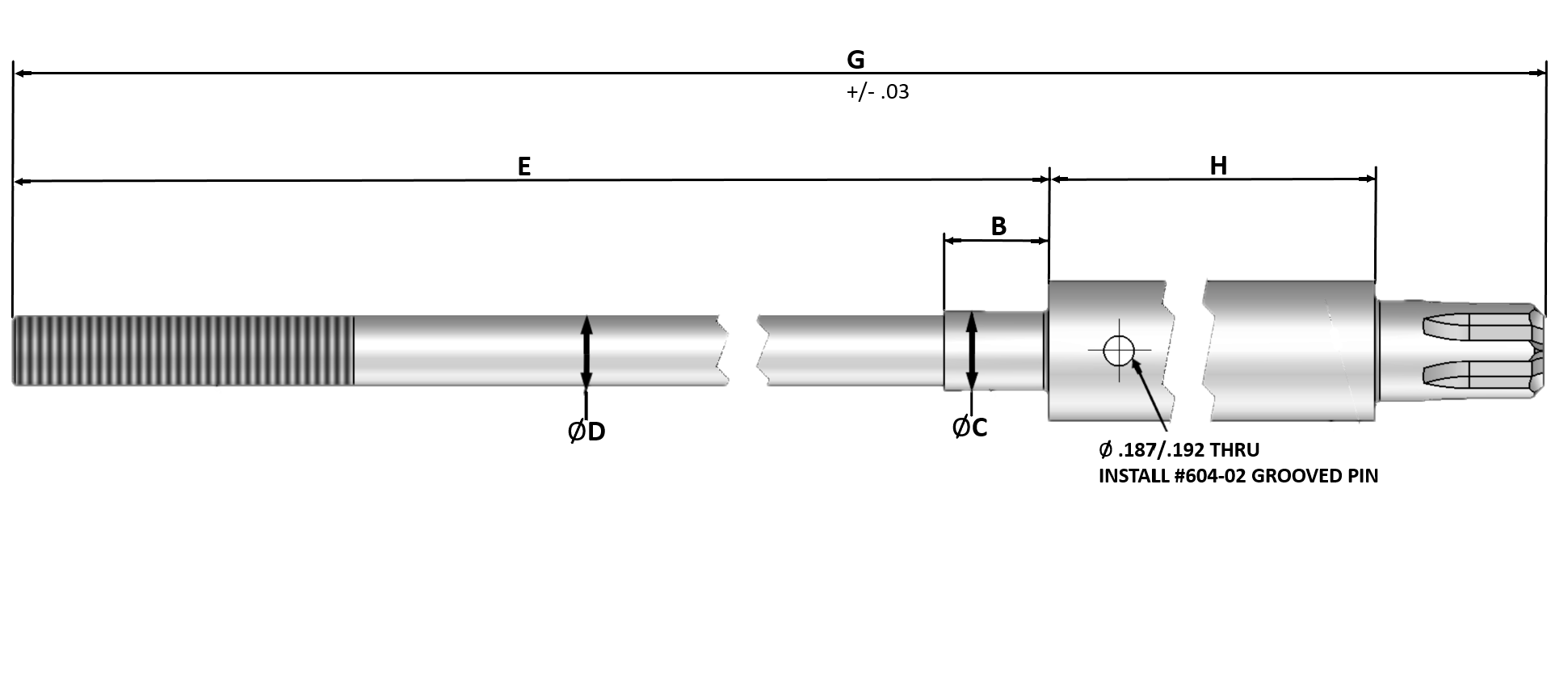

Automatic and Mechanical Drawbar Rods
Assembly |
D21193 Drawbar Head |
D21194 Drawbar Rod |
E |
G |
H |
C |
B |
D |
Automatic Assembly |
Mechanical Assembly |
| 600-01-SA | 601-01 | 602-01 | 18.450 | 22.90 | 3.400 | 0.490 | 0.650 | 7/16 | BR1000, AL1700 | BR6000 |
| 600-08-SA | 601-08 | 602-07 | 18.500 | 23.25 | 3.700 | 0.490 | 0.650 | 7/16 | SM1401 | SM6401 |
| 600-13-SA | 601-13 | 602-13 | 18.800 | 25.80 | 5.950 | 0.578 | 0.800 | 7/16 | RL1100 | RL6100 |
| 600-16-SA | 601-16 | 602-16 | 18.250 | 22.70 | 3.400 | 0.490 | 0.600 | 7/16 | SH1600 | |
| 600-17-SA | 601-17 | 602-16 | 18.250 | 23.70 | 4.400 | 0.490 | 0.600 | 7/16 | SH6600 | |
| 600-45-SA | 601-45 | 602-01 | 18.450 | 23.40 | 3.900 | 0.490 | 0.650 | 7/16 | WE2700 | AR6001 |
| 600-55-SA | 601-55 | 602-55 | 18.750 | 24.10 | 4.300 | 0.520 | 0.440 | 7/16 | CL3400 | CL8400 |
| 600-67-SA | 601-67 | 602-67 | 19.000 | 24.30 | 4.250 | 0.600 | 0.750 | 5/8 | KO2303 |
| Name | Summary | Price | Buy |
|---|---|---|---|
| Kurt Replacement Rod - 600-08-SA | 600-08-SA Replacement Rod | $172.00 | |
| Kurt Replacement Rod - 600-13-SA | 600-13-SA Replacement Rod | $161.00 | |
| Kurt Drawbar Rod - 600-22-SA | 600-22-SA Drawbar Rod | $116.00 | |
| Kurt Replacement Rod - 600-45-SA | 600-45-SA Replacement Rod | $139.00 | |
| Kurt Drawbar Rod - 600-76-SA | 600-76-SA Drawbar Rod | $142.00 | |
| Kurt BR1000, BR6000, AL1700, BR1002 Replacement Rod - 600-01-SA | BR1000, BR6000, AL1700, BR1002 Replacement Rod | $123.00 | |
| Kurt CL3400 and CL8400 Replacement Rod - 600-55-SA | CL3400 and CL8400 Replacement Rod | $167.00 | |
| Kurt CO2601 and CO7601 Replacement Rod - 600-25-SA | CO2601 and CO7601 Replacement Rod | $112.00 | |
| Kurt KO2303 and KO6303 Replacement Rod - 600-67-SA | KO2303 and KO6303 Replacement Rod | $210.00 | |
| Kurt SH1600 Replacement Rod - 600-16-SA | SH1600 Replacement Rod | $173.00 | |
| Kurt SH6600 Replacement Rod - 600-17-SA | SH6600 Replacement Rod | $193.00 | |
| Kurt WE2712 Replacement Rod - 600-79-SA | WE2712 Replacement Rod | $112.00 |
