3610V Replacement Parts

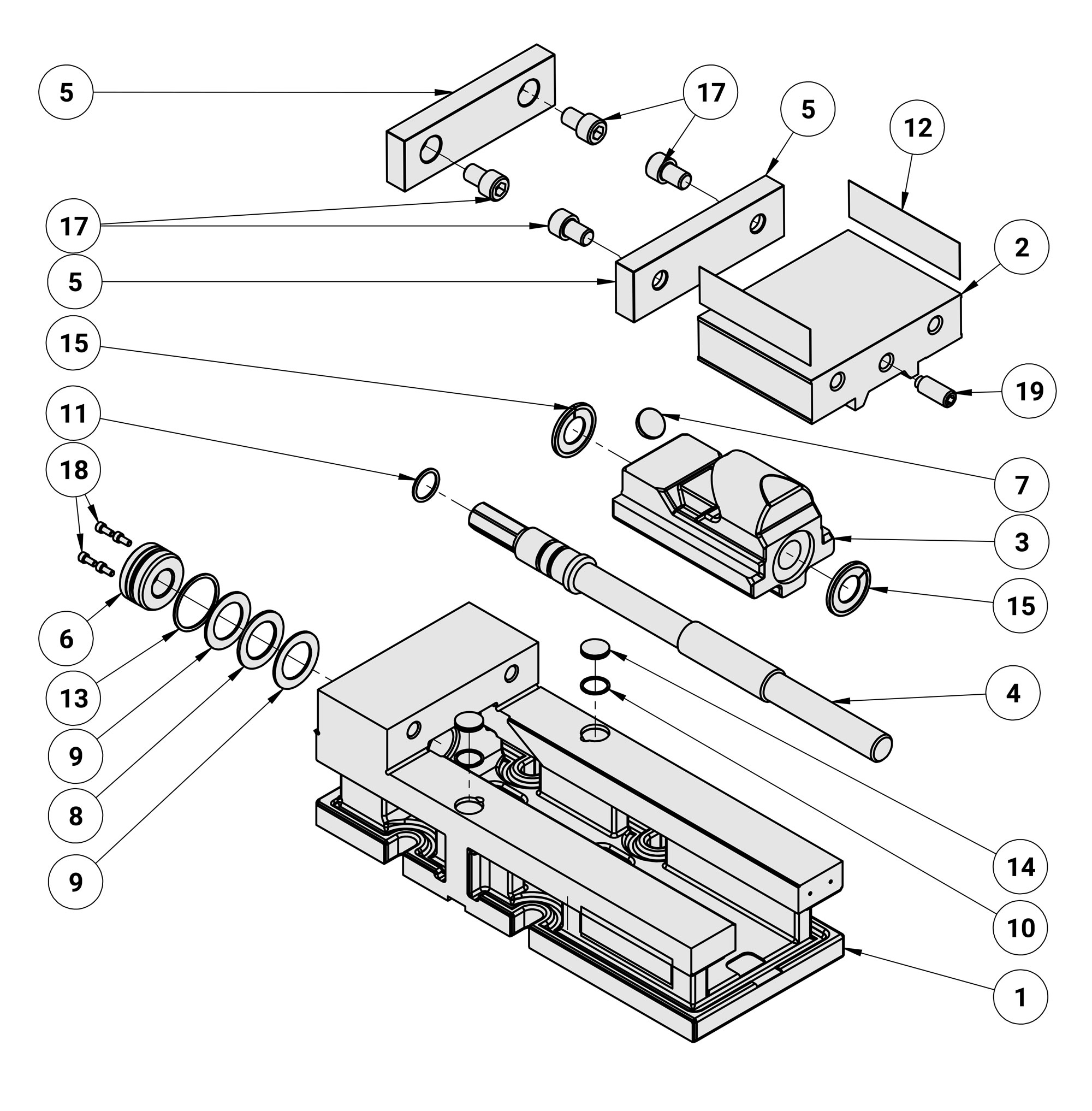

Kurt 3610V Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
1223600V-111 LABEL3600V-111$6.00
0Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$7.00
81Kurt Thrust Bearing - D80-41D80-41$9.00
71Kurt Spherical Segment - D60-9D60-9$11.00
52Kurt Jaw Plate, 6" - D60-7D60-7$56.00
0Kurt Handle Assembly - D60I-10-SAD60I-10-SA$46.00
0Kurt Retaining Nut, 2-Piece (Reverse) - 3610V-83610V-8$63.00
41Kurt Screw, Reverse - 3610V-53610V-5$248.00
31Kurt Nut, Reverse w/ Brush Seals - 3610V-33610V-3$140.00
112Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$7.00
61Kurt Retaining Nut, 2-Piece - 3600V-8-P3600V-8-P$25.00
0Kurt Thrust Bearing Assembly - 3600V-723600V-72$13.00
92Kurt Thrust Washer - 3600V-423600V-42$9.00
0Kurt Chip Guard, Long - 3600V-2493600V-249$11.00
0Kurt Chip Guard, Short - 3600V-2483600V-248$9.00
152Kurt Internal Brush Seal - 3600V-2113600V-211$12.00
21Kurt Movable Jaw - 3600V-23600V-2$295.00
142Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$7.00
131Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$7.00
0Kurt O-Ring, Buna N, 008 - 225-01225-01$7.00
191Kurt Screw, SHSS, 1/2-13 X 1-1/4 - 01-393801-3938$10.00
0Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$7.00
174Kurt Screw, 1/2-13NC X 3/4 Long - 00-141400-1414$7.00
184Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$7.00
