SCD430 Replacement Parts

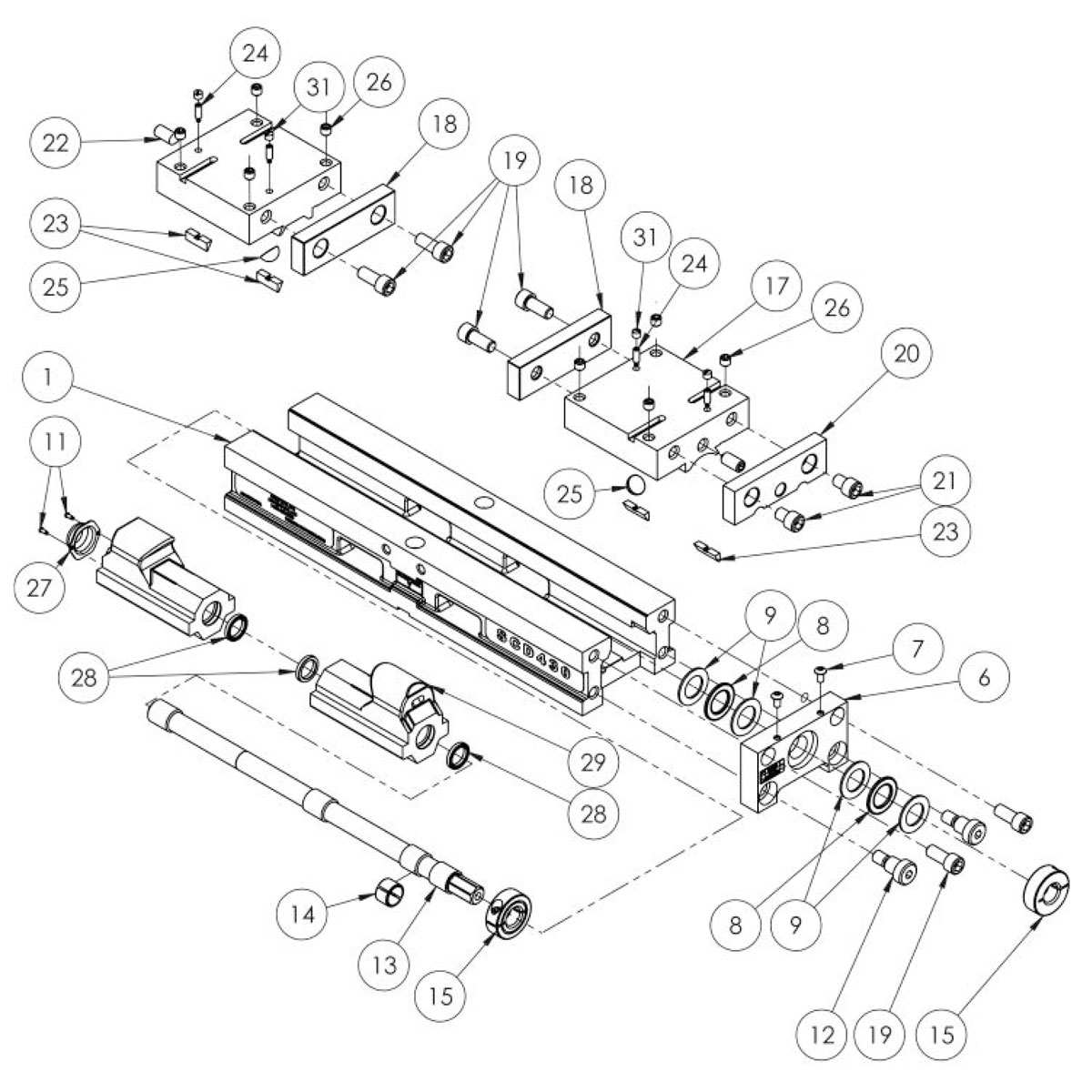

SCD430 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
0Kurt Handle Assembly - D40I-10-SAD40I-10-SA$48.00
41Kurt Rear Nut w/ End Cap - SCD430-3RSCD430-3R$224.00
71Kurt Front Nut - SCD430-3FSCD430-3F$224.00
162Kurt Collar () - SCD400-8SCD400-8$58.00
101Kurt Split Bushing - SCD400-60SCD400-60$48.00
61Kurt Screw () - SCD400-5SCD400-5$89.00
202Kurt Movable Jaw, Special - SCD400-2SSCD400-2S$382.00
181Kurt Retaining Ring - SCD400-227SCD400-227$48.00
111Kurt Holding Block - SCD400-212SCD400-212$219.00
304Kurt Set, Screw, Altered - SCD400-196SCD400-196$27.00
294Kurt Movable Jaw, GIB - SCD430-13SCD430-13$53.00
84Kurt Thrust Bearing Washer, 0.060-0.063 - DL400-42ADL400-42A$10.00
271Kurt Chip Guard, Long - DL400-249DL400-249$11.00
261Kurt Chip Guard, Short - DL400-248DL400-248$10.00
21Kurt End Cap - DL400-218DL400-218$14.00
53Kurt U-Cup Seal - DL400-146DL400-146$7.00
212Kurt Spherical Segment - D40-9D40-9$9.00
222Kurt Jaw Plate, 4" - D40-7D40-7$58.00
92Kurt Thrust Bearing - D40-41D40-41$10.00
132Kurt Screw, SHLDR, .1/2 X 3/8 - 03-203503-2035$10.00
152Kurt Screw, BHCS, #10-24 X 3/8 - 03-012403-0124$7.00
314Kurt Screw, Set, 1/4-20 X 1/4 - 01-607301-6073$7.00
192Kurt Screw, SHSS, 3/8-16 X 7/8 - 01-330801-3308$25.00
142Kurt Screw, SHCS, 3/8-16 X 1 Long - 00-135500-1355$7.00
172Kurt Screw, SHCS, 3/8-16 X 1/2 - 00-134800-1348$7.00
