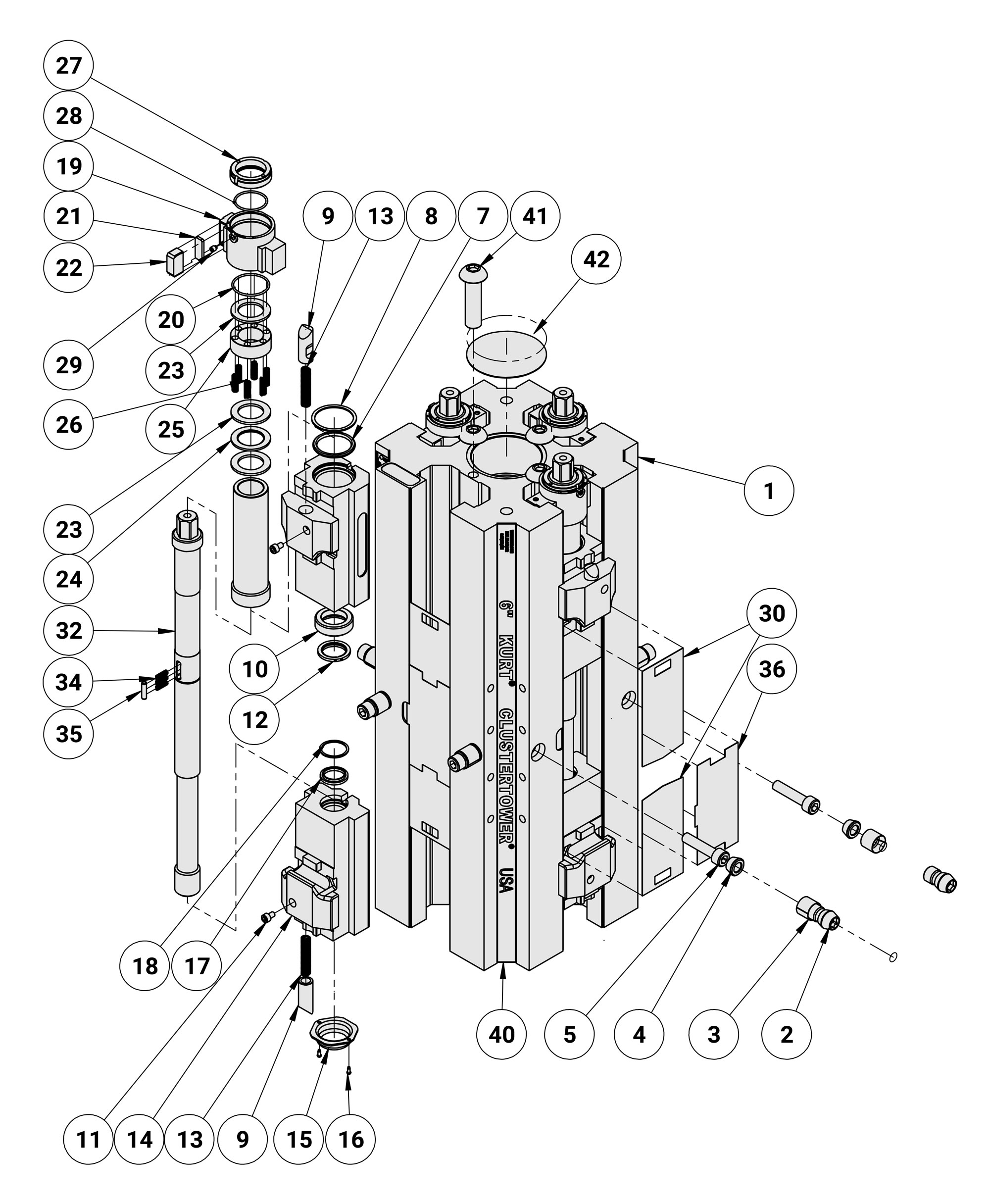

CTHDLM64 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
4Kurt Nut, Machined, Front - HDLM6-3F-SAHDLM6-3F-SA$213.00
24Kurt End Cap - DL600-218DL600-218$9.00
44Kurt Nut, Machined, Rear - HDLM6-3R-SAHDLM6-3R-SA$183.00
54Kurt Wiper Ring - DL640-97DL640-97$6.00
74Kurt Screw - DL640-5BDL640-5B$98.00
84Kurt Spacer, Threaded - DL640-61ADL640-61A$18.00
104Kurt Snap Ring, Trarc, Ext. - DL640-147BDL640-147B$5.00
1312Kurt Thrust Bearing Washer - D60-42D60-42$6.00
134Kurt Clutch - DL640-273B-CPDL640-273B-CP$60.00
144Kurt Thrust Bearing - D60-41D60-41$6.00
144Kurt Wiper Ring - DL430-331DL430-331$6.00
154Kurt O-Ring, Metric - DL640-129DL640-129$5.00
1624Kurt Compression Spring - DL640-197DL640-197$5.00
174Kurt Holding Block, Metric - DLM640-212DLM640-212$84.00
188Kurt Spring, Red, Manual Vise Only - HD6-197HD6-197$5.00
184Kurt O-Ring, 1-3/8 X 1-1/2 - DL640-68DL640-68$5.00
208Kurt Spring Guide, Metric - HDM6-142HDM6-142$11.00
208Kurt Stationary Jaw Locating Pin for use with the HDLM6 Metric v - HDM6-277AHDM6-277A$38.00
218Kurt Clamp Sleeve - HD6-209HD6-209$27.00
224Kurt Collar - DL640-8ADL640-8A$19.00
228Kurt Stationary Jaw Clamp - HD6-35HD6-35$22.00
234Kurt Collar, Threaded - DL640-91-PDL640-91-P$34.00
244Kurt O-Ring, 1-3/16 ID, 1-5/16 - DL640-128DL640-128$5.00
244Kurt Friction Clamp - DL640-225A-PDL640-225A-P$16.00
258Kurt Screw, SHCS, M5 X .8 X 6mm LG - 26-008226-0082$5.00
254Kurt Socket, Set Screw, M5 X .8 - 28-112228-1122$5.00
284Kurt Screw, BHCS, M10 X 1.5 X 12 for use with the HDLM6 Metric v - 29-021829-0218$6.00
3012Kurt Clutch Spring, Stainless - DL640-215DL640-215$5.00
344Kurt Pre-load Spring - DL640-311ADL640-311A$8.00
358Kurt Screw, SHCS, M10 X 1.5 X 45mm LG for use with the HDLM6 Met - 26-023226-0232$5.00
358Kurt Stationary Jaw Locating Pin for use with the HDL6 English v - HD6-277AHD6-277A$35.00
388Kurt Screw, SHCS, 3/8-16 x 1-3/4 for use with the HDL6 English v - 00-136000-1360$5.00
464Kurt Dowel Pin, 3/16 DIA - 04-003004-0030$5.00
464Kurt Retaining Ring - DL640-217DL640-217$5.00
468Kurt Chip Guard, Movable - HDLM6-249HDLM6-249$7.00
474Kurt Chip Guard, Stationary - HDLM6-248HDLM6-248$8.00
494Kurt Retaining Ring - DL640-231DL640-231$5.00
