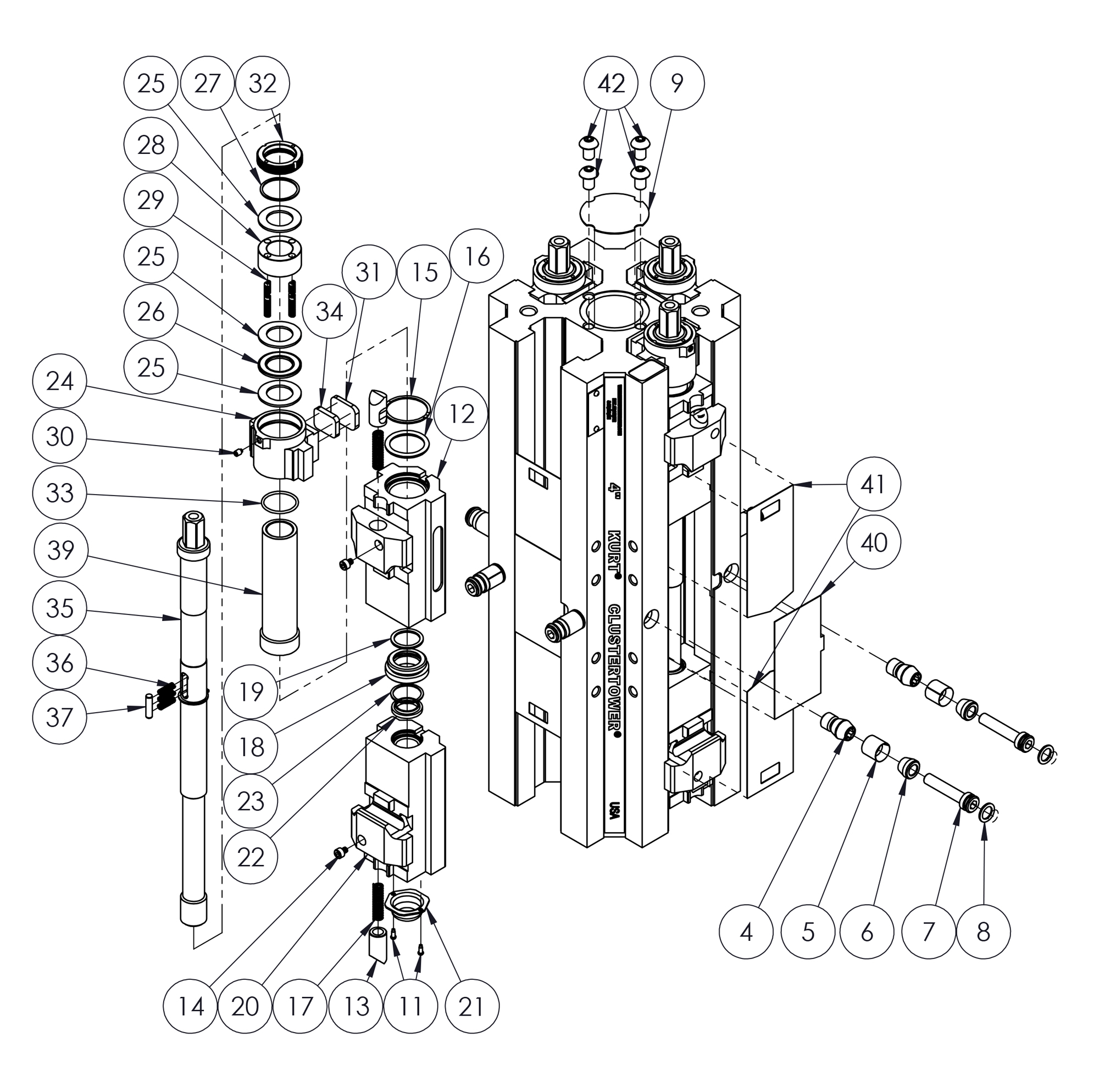

CTHDLM44 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
Kurt Hard Stationary Jaw, J Style (Metric) - HDLM4J-6$139.00
1110Kurt Screw, Drive, #2 X .25 - 07-023007-0230$6.00
48Kurt Locating Pin, Stationary Jaw for use with the HDL4 English - HDL4-277HDL4-277$45.00
78Kurt Screw, Alt. 5/16-18 UNC SHCS for use with the HDL4 English - HDL4-18HDL4-18$10.00
184Kurt Spacer - HDLM4-61HDLM4-61$29.00
354Kurt Screw - HDLM4-5HDLM4-5$87.00
204Kurt Nut, Rear - HDLM4-3R-SAHDLM4-3R-SA$169.00
124Kurt Nut, Front - HDLM4-3F-SAHDLM4-3F-SA$187.00
68Kurt Clamp, Stationary Jaw - HDLM4-35HDLM4-35$29.00
344Kurt Spring, Pre-load - HDLM4-311HDLM4-311$13.00
48Kurt Locating Pin, Stationary Jaw for use with the HDLM4 Metric - HDLM4-277HDLM4-277$45.00
418Kurt Chip Guard, Movable - HDLM4-249HDLM4-249$13.00
404Kurt Chip Guard, Stationary - HDLM4-248HDLM4-248$10.00
314Kurt Clamp, Friction - HDLM4-225HDLM4-225$20.00
244Kurt Holding Block - HDLM4-212AHDLM4-212A$72.00
58Kurt Clamp Sleeve - HDLM4-209HDLM4-209$33.00
78Kurt Screw, Alt. M8x1.25 SHCS for use with the HDLM4 Metric vers - HDLM4-18HDLM4-18$10.00
138Kurt Spring Guide - HDLM4-142HDLM4-142$12.00
178Kurt Spring, Compression - HDLM4-267HDLM4-267$8.00
284Kurt Collar - DL430-8ADL430-8A$20.00
164Kurt O-Ring, 1.0 I.D. X 1.25 O.D. - DL430-129DL430-129$6.00
194Kurt O-Ring, .750 I.D. X .937 O.D. - DL430-127DL430-127$6.00
424Kurt Screw, BHCS M8 X 1.25 X 12MM LG for use with the HDLM4 Metr - 29-016829-0168$6.00
304Kurt Screw, SS, Half Dog Point, M4 X .7 x 6MM Long - 28-109428-1094$6.00
148Kurt Screw, SHCS, M4 X .7 X 50MM Long - 26-005026-0050$6.00
274Kurt O-Ring, Buna N, #022 - DL430-68DL430-68$6.00
384Kurt Retaining Ring - DL430-147ADL430-147A$6.00
334Kurt O-Ring, Buna N, #021 - DL430-128DL430-128$6.00
3612Kurt Clutch Spring, Stainless - DL640-215DL640-215$6.00
224Kurt Wiper Ring - DL430-97DL430-97$7.00
324Kurt Collar, Threaded - DL430-91-PDL430-91-P$35.00
394Kurt Clutch - DL430-273ADL430-273A$50.00
154Kurt Retaining Ring - DL430-231DL430-231$6.00
234Kurt Retaining Ring - DL430-217DL430-217$7.00
2916Kurt Spring - DL430-197DL430-197$6.00
2512Kurt Thrust Bearing Washer, .060-.063 - DL400-42ADL400-42A$8.00
214Kurt End Cap - DL400-218DL400-218$12.00
264Kurt Thrust Bearing - D40-41D40-41$8.00
88Kurt O-Ring, #110 - 360AU-99B360AU-99B$6.00
374Kurt Dowel Pin, 3/16 DIA - 04-003004-0030$6.00
