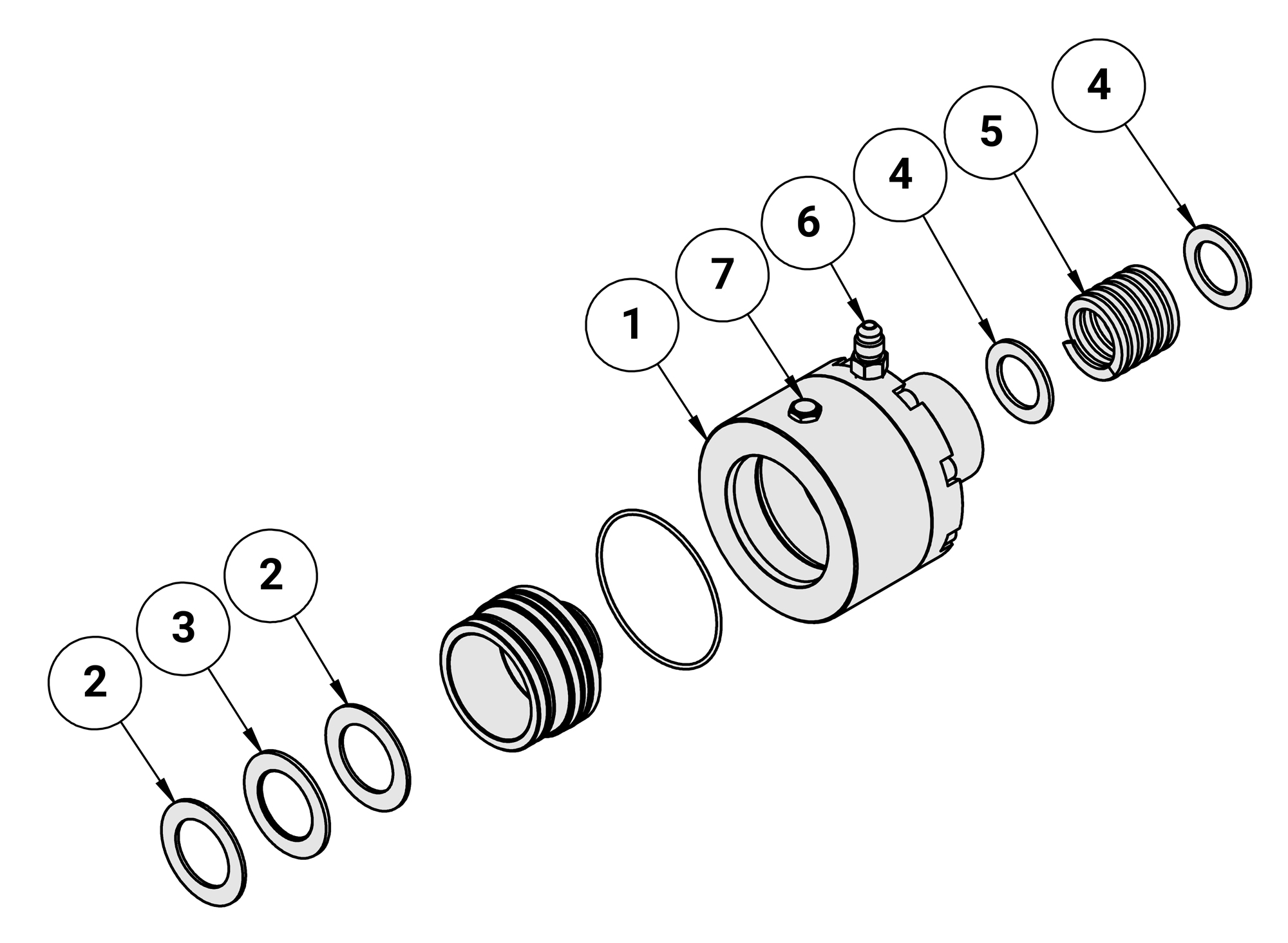

KHU6 Replacement Parts
| Callout | Qty Needed | Name | Part No. | Price | Buy |
|---|---|---|---|---|---|
| 6 | 2 | FITTING, 1/8 MNPT-4MJIC - 2404-04-02 | 2404-04-02 | $7.00 | |
| 7 | 1 | Kurt 1/8 inch Breather Fitting - PCFBR-02 | PCFBR-02 | $7.00 | |
| 0 | Kurt KHU6 Seal Kit - KHU6-KIT | KHU6-KIT | $27.00 | ||
| Kurt 6" Hydraulic Unit - KHU6 | KHU6 | $1,002.00 | |||
| 3 | 1 | Kurt Thrust Bearing - D80-41 | D80-41 | $9.00 | |
| 5 | 1 | Kurt Compression Spring - KHU6-87 | KHU6-87 | $21.00 | |
| 4 | 2 | Kurt Washer - 360HU-230 | 360HU-230 | $24.00 | |
| 2 | 2 | Kurt Thrust Washer - 3600V-42 | 3600V-42 | $9.00 |
