36BHU Replacement Parts

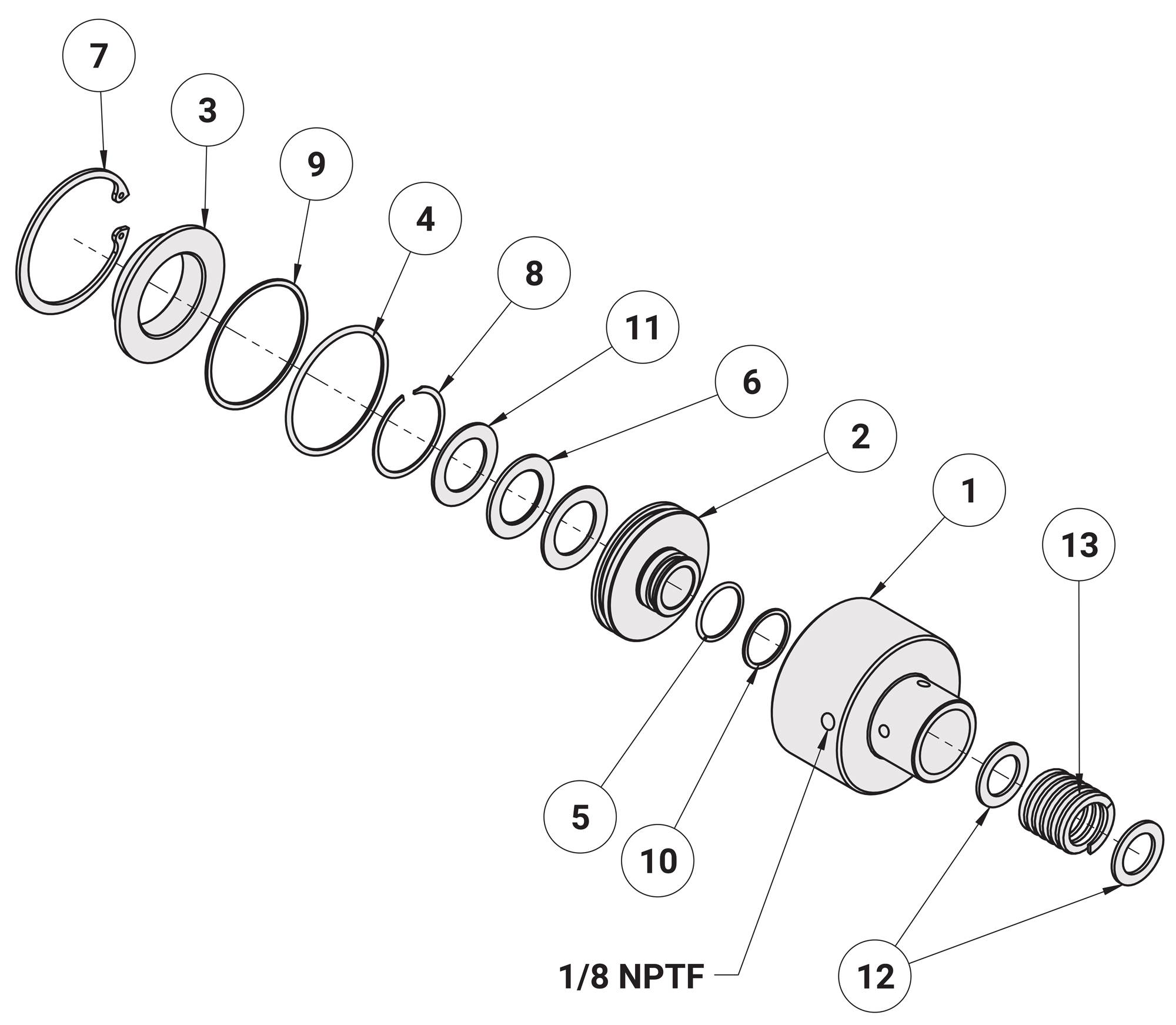

| Callout | Qty Needed | Name | Part No. | Price | Buy |
|---|---|---|---|---|---|
| 2 | 1 | Kurt Piston - 360HU-93 | 360HU-93 | $110.00 | |
| 3 | 1 | Kurt Retainer - 360HU-229 | 360HU-229 | $133.00 | |
| 4 | 1 | Kurt O-Ring, Urethane, #230 - PTH600-96 | PTH600-96 | $14.00 | |
| 9 | 1 | Kurt Back-up Ring - PTH600-188 | PTH600-188 | $9.00 | |
| 5 | 1 | Kurt O-Ring, Urethane #121 - 360HU-98 | 360HU-98 | $11.00 | |
| 7 | 1 | Kurt Retaining Ring - 360HU-232 | 360HU-232 | $10.00 | |
| 8 | 1 | Kurt Retaining Ring - 360HU-231 | 360HU-231 | $7.00 | |
| 10 | 1 | Kurt Backup Ring - 360HU-187 | 360HU-187 | $7.00 | |
| 6 | 1 | Kurt Thrust Bearing - D80-41 | D80-41 | $9.00 | |
| 11 | 2 | Kurt Thrust Washer - 3600V-42 | 3600V-42 | $9.00 |
