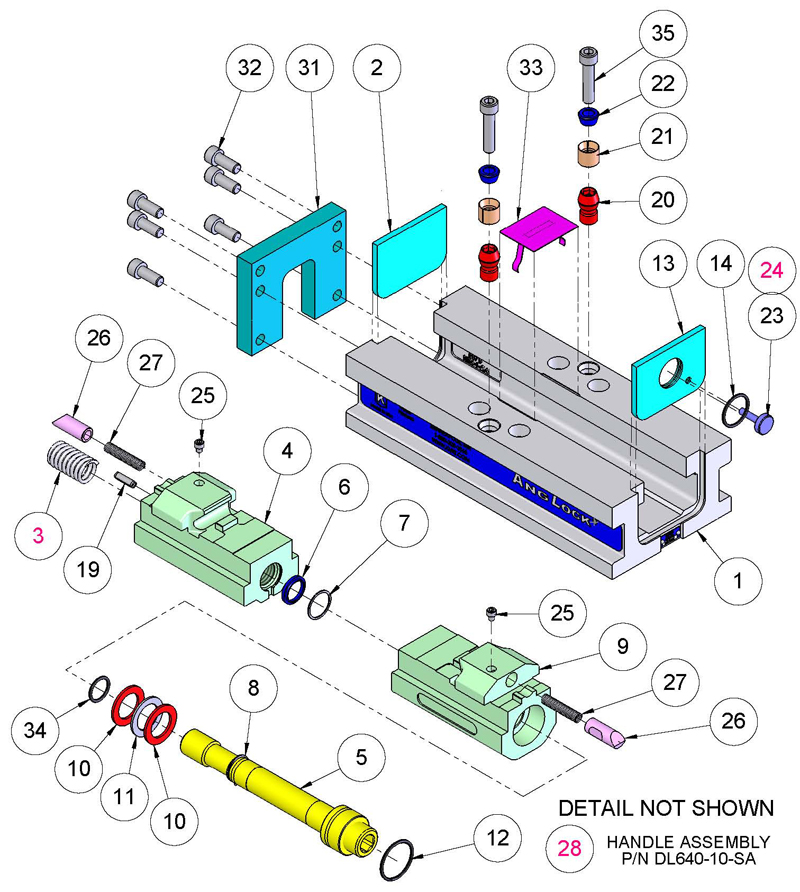

HDM6 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
331Kurt Chip GuardHD6-248$31.00
Kurt Locating PinHDM6-277$48.00
41Kurt Rear NutHDM6-3R$256.00
91Kurt Front NutHDM6-3F$256.00
131Kurt End Plate, Front, MetricHDM6-333$99.00
202Kurt Stationary Jaw Locating Pin for use with the HDLM6 Metric vHDM6-277A$31.00
241Kurt Plastic Thumb Screw KnobHDM6-22$3.00
231Kurt Screw, AdjustingHDM6-18$13.00
262Kurt Spring Guide, MetricHDM6-142$9.00
141Kurt O-Ring, Buna N, #122HD6-96$3.00
121Kurt O-Ring, Buna N, #126HD6-68$3.00
51Kurt ScrewHD6-5$149.00
222Kurt Stationary Jaw ClampHD6-35$19.00
31Kurt Compression SpringHD6-327$13.00
272Kurt Compression SpringHD6-267$5.00
21Kurt Rear End PlateHD6-253$72.00
212Kurt Clamp SleeveHD6-209$22.00
81Kurt Retaining RingD50-30$3.00
61Kurt Wiper RingDL640-97$4.00
71Kurt Retaining RingDL640-217$3.00
281Kurt Handle AssemblyDL640-10-SA$72.00
102Kurt Thrust Bearing WasherD60-42$4.00
111Kurt Thrust BearingD60-41$4.00
341Kurt O-Ring, Buna N, #1173600V-99$3.00
352Kurt Screw, SHCS, M10 X 1.5 X 45mm LG for use with the HDLM6 Met26-0232$3.00
252Kurt Screw, SHCS, M5 X .8 X 6mm LG26-0082$3.00
191Kurt Roll Pin, 1/4 X 7/804-4428$3.00
