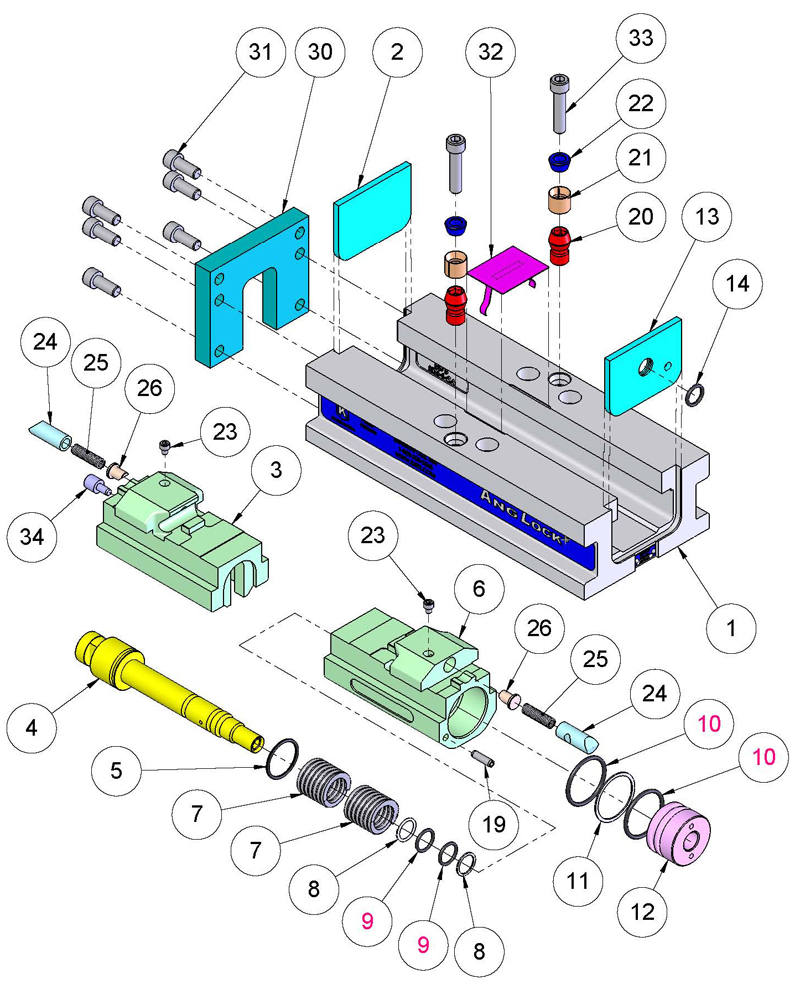

HDHM6 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
341Kurt Carr-lane, Rest ButtonHDHM6-312$8.00
321Kurt Chip GuardHD6-248$31.00
Kurt Spring, Blue, Hydraulic Vise OnlyHDH6-267$6.00
Kurt HDHM6 Repair Kit 1HDHM6-KIT1$8.00
51Kurt O-Ring, Buna N, #125PM43-96$3.00
141Kurt O-Ring, Buna N. #114MLH35-173A$3.00
202Kurt Stationary Jaw Locating Pin for use with the HDLM6 Metric vHDM6-277A$31.00
31Kurt Rear NutHDHM6-3R$264.00
61Kurt Front NutHDHM6-3F$264.00
242Kurt Spring Guide, MetricHDHM6-142$10.00
102Kurt O-Ring, Buna N, #223HDH6-96$3.00
121Kurt Hydraulic PistonHDH6-93$59.00
92Kurt O-Ring, Buna N, #115HDH6-68$3.00
41Kurt ScrewHDH6-5$156.00
262Kurt Pre-load PlungerHDH6-334$9.00
131Kurt Front End PlateHDH6-333$126.00
111Kurt O-Ring, BackerHDH6-188$4.00
82Kurt O-Ring, BackerHDH6-187$3.00
222Kurt Stationary Jaw ClampHD6-35$19.00
252Kurt Compression SpringHD6-267$5.00
21Kurt Rear End PlateHD6-253$72.00
212Kurt Clamp SleeveHD6-209$22.00
72Kurt 360HU-87 Compression Spring360HU-87A$44.00
332Kurt Screw, SHCS, M10 X 1.5 X 45mm LG for use with the HDLM6 Met26-0232$3.00
232Kurt Screw, SHCS, M5 X .8 X 6mm LG26-0082$3.00
191Kurt Roll Pin, 1/4 X 7/804-4428$3.00
