XL6R Replacement Parts

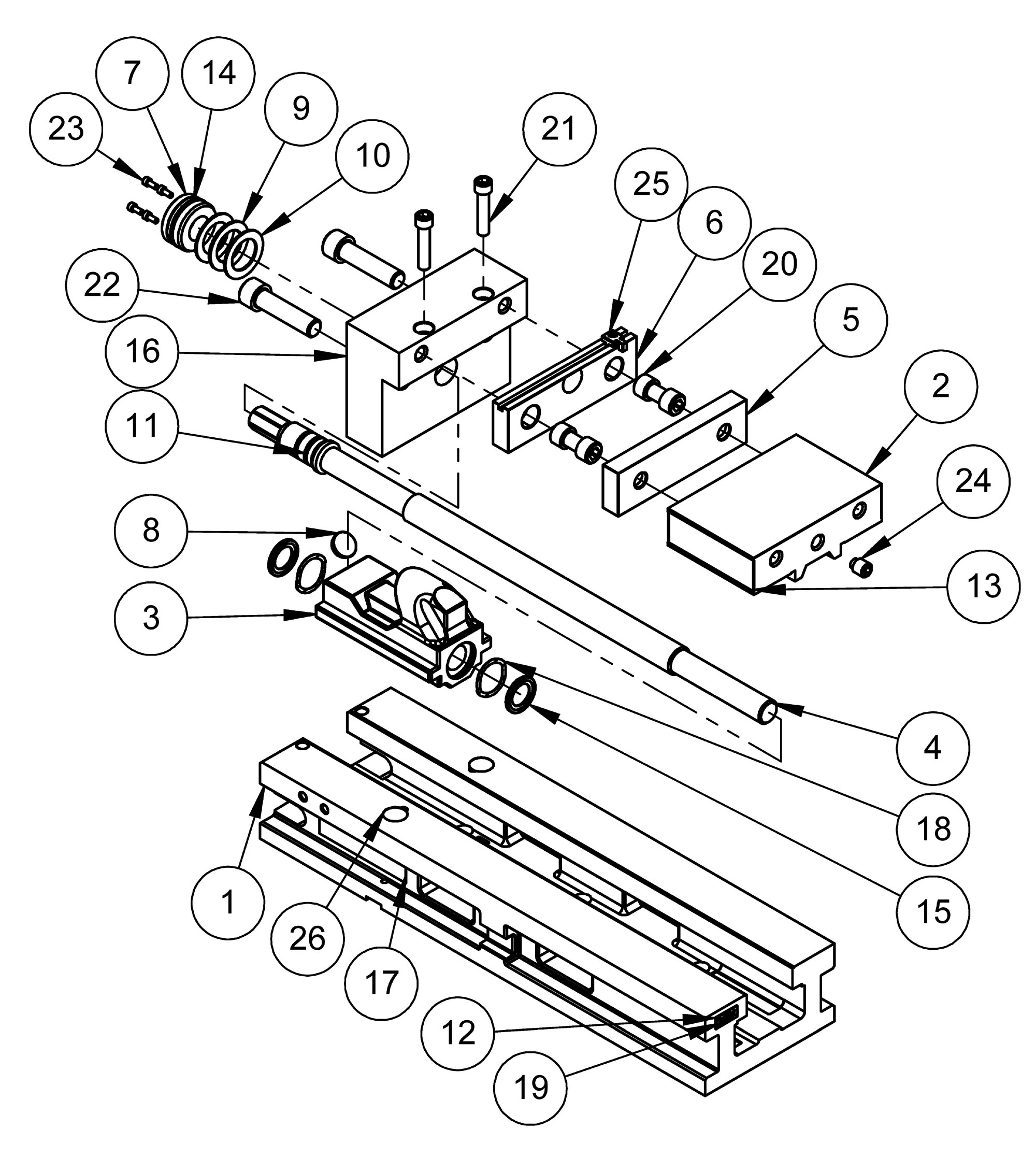

XL6R Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
161XL6 Holding Block - XL6-212XL6-212$600.00
41XL6R-5-CP REVERSE SCREW$335.00
91Kurt Thrust Bearing - 3400V-413400V-41$6.00
192Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
182Kurt Wave Spring - DX6-169DX6-169$6.00
241Kurt Set Screw - 01-313401-3134$7.00
102Kurt Thrust Washer - 3400V-423400V-42$6.00
21Kurt Movable - DX6-2DX6-2$146.00
212Kurt Screw, SHCS, 3/8-16 x 1-3/4 for use with the HDL6 English v - 00-136000-1360$6.00
222Kurt Screw, SHCS, 5/8-11 X 2-1/2 - 00-148700-1487$7.00
141Kurt O-Ring, Buna, #125 - HDHLM4-96HDHLM4-96$6.00
152Kurt Internal Brush Seal - D688-211D688-211$10.00
81Kurt Spherical Segment - D60-9D60-9$9.00
61Kurt GrooveLock 6" Jaw Plate - D60-315-PD60-315-P$52.00
51Kurt Jaw Plate, 4" - D40-7D40-7$50.00
71Kurt Retaining Nut, 2-Piece (Reverse) - 3610V-83610V-8$54.00
262Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
111Kurt O-Ring, #115 - 3600AA-683600AA-68$6.00
204Kurt Screw, 1/2-13NC X 3/4 Long - 00-141400-1414$6.00
234Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
