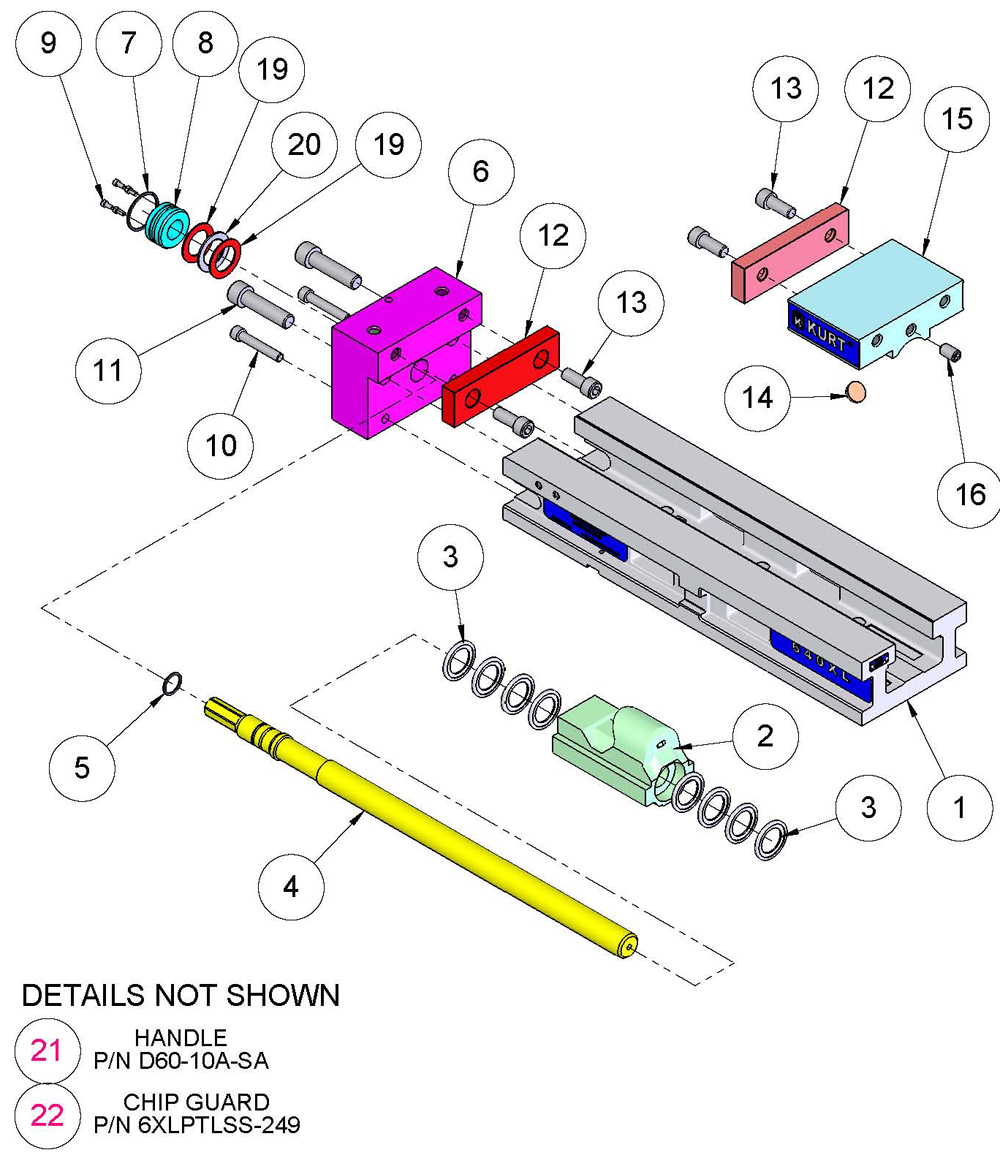

640XLR Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
1Kurt Handle Assembly - D60I-10-SAD60I-10-SA$38.00
21Kurt Rev. Nut, Machined - 640XLR-3640XLR-3$171.00
38Kurt Internal Brush Seal - PT600-211PT600-211$10.00
41Kurt Screw, 6XLPT Vise, Reverse - 6XLPTLSR-5-CP6XLPTLSR-5-CP$371.00
62Kurt Jaw Plate, 6" - D60-7D60-7$46.00
61Kurt Holding Block, Reverse 6XLPT Vise - 6XLPTLSAR-2126XLPTLSAR-212$656.00
81Kurt Spherical Segment - D60-9D60-9$8.00
91Kurt Thrust Bearing - D80-41D80-41$6.00
104Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$5.00
102Kurt Screw, SHCS, 3/8-16 X 2-1/4 Long - 00-136200-1362$5.00
102Kurt Thrust Washer - 3600V-423600V-42$6.00
112Kurt Screw, SHCS,5/8-11 X 2-1/2 - 00-148700-1487$6.00
131Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$5.00
161Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$5.00
241Kurt Chip Guard - 6XLPTLSS-2496XLPTLSS-249$15.00
271Kurt Screw, SHSS, 1/2-13 X 1 LG - 01-333401-3334$21.00
281Kurt Movable Jaw - DL640-2DL640-2$219.00
544Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$5.00
