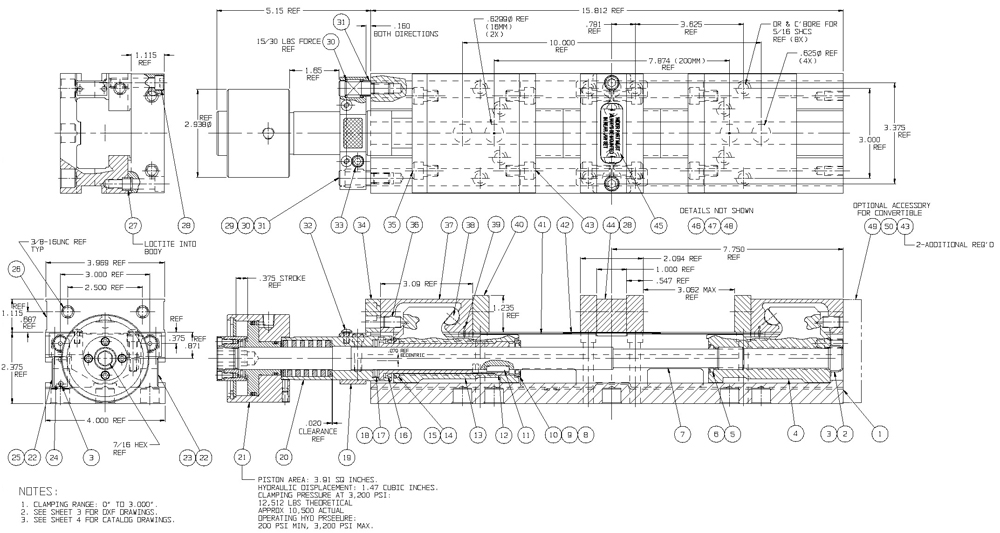

DLH430

CalloutQty NeededNamePart No.PriceBuy
111Kurt Key - DLH600-290-RMDLH600-290-RM$23.00
471Kurt Handle Assembly - DLH600-10-SADLH600-10-SA$265.00
91Kurt Wiper Ring Seal - DLH430-97DLH430-97$6.00
81Kurt Spacer, Knurled - DLH430-61DLH430-61$39.00
71Kurt Screw - DLH430-5DLH430-5$310.00
101Kurt Spiral Retaining Ring - DLH430-217DLH430-217$3.00
121Kurt Threaded Sleeve - DLH430-209DLH430-209$252.00
161Kurt U-Cup Seal - DLH400-79DLH400-79$8.00
201Kurt Connector - DLH400-56DLH400-56$81.00
51Kurt Wiper Ring - DL430-97DL430-97$4.00
441Kurt Stationary Jaw - DL430-6-WIPDL430-6-WIP$101.00
41Kurt Nut, Rear - DL430-3R-SADL430-3R-SA$132.00
131Kurt Nut, Front - DL430-3FDL430-3F$174.00
141Kurt Wiper Ring - DL430-331DL430-331$4.00
271Kurt Locator - DL430-278DL430-278$8.00
412Kurt Chip Guard, Long, Movable - DL430-249DL430-249$12.00
481Kurt Chip Guard, Short, Stationary - DL430-248DL430-248$9.00
151Kurt Retaining Ring - DL430-231DL430-231$3.00
61Kurt Retaining Ring - DL430-217DL430-217$4.00
372Kurt Movable Jaw - DL430-2DL430-2$110.00
172Kurt Thrust Bearing Washer, .060-.063 - DL400-42ADL400-42A$5.00
421Kurt Chip Guard, Short - DL400-248DL400-248$5.00
302Kurt Compressions Spring - DL400-197DL400-197$5.00
382Kurt Spherical Segment - D40-9D40-9$4.00
404Kurt Jaw Plate, 4" - D40-7D40-7$40.00
181Kurt Thrust Bearing - D40-41D40-41$5.00
211Kurt Hydraulic Unit Assembly - 4THU4THU$1,205.00
391Kurt SLT Spring Pin .062 X 5/16 - 04-400804-4008$3.00
322Kurt Screw, BHCS, #10-24 X 3/8 - 03-012403-0124$2.12
21Kurt Screw, Set, 1/4-20 X 1/4 - 01-607301-6073$2.12
438Kurt Screw, SHCS, 3/8-16 X 5/8 - 00-135000-1350$2.12
352Kurt Screw, SHCS, 3/8-16 X 1/2 - 00-134800-1348$2.12
282Kurt Screw, SHCS, 5/16-18 X 1-1/2 - 00-132800-1328$3.00
331Kurt Screw, SHCS, 1/4-20 X 1.00 Long - 00-129300-1293$3.00
