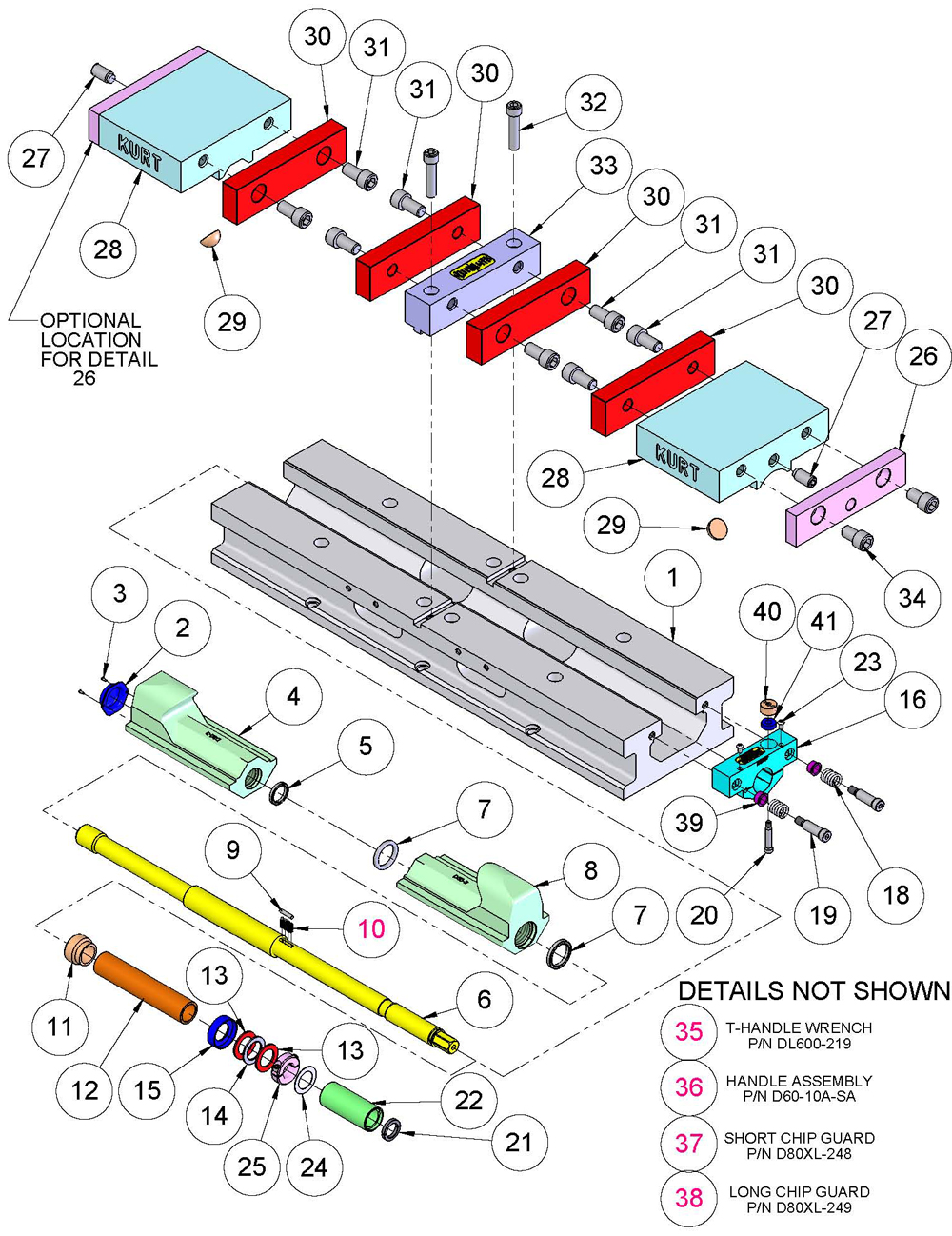

DL800 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
182Kurt Spring, CompressionDL800-197A$7.00
Kurt Spiral Retaining RingDL600-217A$5.00
Kurt SleeveDL600-209A$34.00
241Kurt Thrust Bearing WasherTRA-1625$4.00
331Kurt Stationary JawDL800-6$326.00
61Kurt ScrewDL800-5A$343.00
41Kurt Rear NutDL800-3R$257.00
81Kurt Front NutDL800-3F$257.00
411Kurt Pre-load SpringDL800-311$8.00
401Kurt Spanner NutDL800-291$30.00
121Kurt Clutch SpacerDL800-274$34.00
151Kurt Thrust Washer CollarDL800-272$63.00
261Kurt Retaining PlateDL800-227$63.00
161Kurt Holding BlockDL800-212A$194.00
221Kurt SleeveDL800-209A$62.00
282Kurt Movable JawDL800-2$399.00
192Kurt Altered Shoulder BoltDL800-176$20.00
251Kurt Double Split CollarDL600-8$40.00
111Kurt ClutchDL600-273$86.00
21Kurt End CapDL600-218$7.00
104Kurt Clutch SpringDL600-215A$3.00
392Kurt Bushing, SpringDL600-213B$16.00
72Kurt U-Cup Seal, Front NutDL600-180$4.00
51Kurt U-Cup Seal, Rear NutDL600-146$3.00
211Kurt Split CollarDL600-122$44.00
381Kurt Chip Guard, LongD80XL-249$14.00
372Kurt Chip GuardD80XL-248$8.00
292Kurt Spherical SegmentD80-9$6.00
304Kurt Jaw Plate, 8"D80-7$100.00
132Kurt Thrust Bearing WasherD60-42$4.00
141Kurt Thrust BearingD60-41$4.00
361Kurt Handle AssemblyD60I-10-SA$31.00
91Kurt Dowel Pin, 3/16 x 7/804-0031$3.00
201Kurt Screw, SHLDR, 5/16 X 1-1/403-2014$3.18
232Kurt Screw, BHCS, #10-24 X 3/803-0124$2.12
272Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/401-3953$14.00
318Kurt Screw, SHCS, 5/8-11 X 1-1/400-1481$4.00
342Kurt Screw, SHCS, 5/8-11 X 1 Long00-1479$4.00
322Kurt Screw, SHCS, 1/2-13 X 2-1/400-1424$4.00
