DL640 Replacement Parts

For repair kits and replacement nut & screw assemblies look at the bottom of the parts list. You will need the vise serial number.

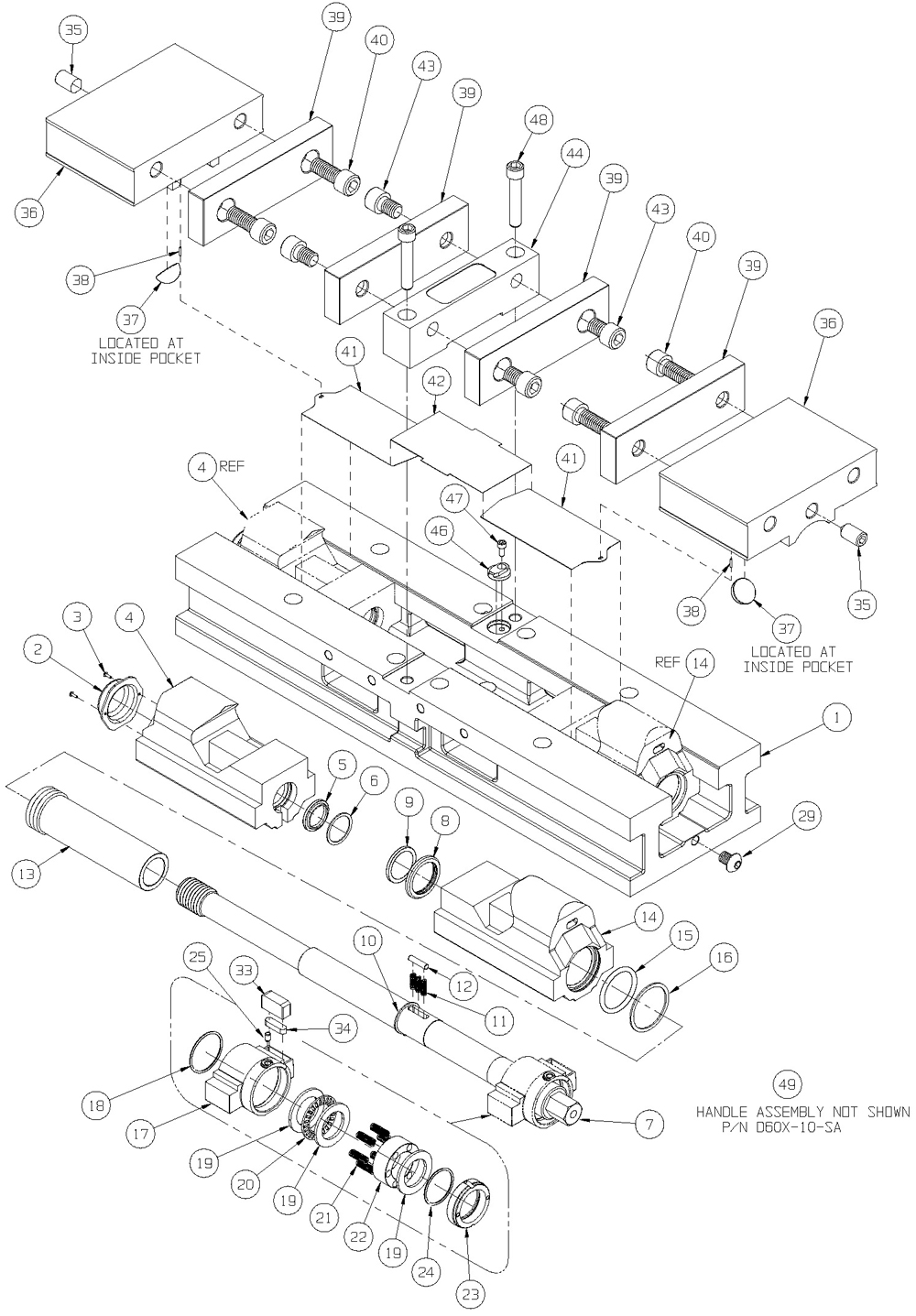

CalloutQty NeededNamePart No.PriceBuy
00Kurt Collar Assembly - DL640-8-SADL640-8-SA$51.00
00Kurt Screw - DL640-5ADL640-5A$189.00
00Kurt Spring Cover - DL640-53A-PDL640-53A-P$15.00
00Kurt Retaining Ring - DL640-147ADL640-147A$5.00
491Kurt Handle Assembly, Long Socket - D60XI-10-SAD60XI-10-SA$43.00
00Kurt DL640 Repair Kit (Serial Numbers 5001 and Greater) - DL640-KIT3DL640-KIT3$20.00
00Kurt DL640 Repair Kit (Serial Numbers 3735 - 4999) - DL640-KIT2DL640-KIT2$24.00
00Kurt DL640 Repair Kit (Serial Numbers 1000 - 3734) - DL640-KIT1DL640-KIT1$29.00
51Kurt Wiper Ring - DL640-97DL640-97$6.00
231Kurt Collar, Threaded - DL640-91-PDL640-91-P$34.00
221Kurt Collar - DL640-8ADL640-8A$19.00
181Kurt O-Ring, 1-3/8 X 1-1/2 - DL640-68DL640-68$5.00
81Kurt Spacer, Threaded - DL640-61ADL640-61A$18.00
441Kurt Stationary Jaw - DL640-6-WIPDL640-6-WIP$181.00
71Kurt Screw - DL640-5BDL640-5B$98.00
41Kurt Rear Nut - DL640-3RA-SADL640-3RA-SA$158.00
141Kurt Front Nut - DL640-3FA-SADL640-3FA-SA$166.00
00Kurt Nut & Screw w/ Assembly - DL640-3A-SADL640-3A-SA$654.00
341Kurt Pre-load Spring - DL640-311ADL640-311A$8.00
461Kurt Locator - DL640-278DL640-278$34.00
131Kurt Clutch - DL640-273BDL640-273B$60.00
412Kurt Chip Guard, Long - DL640-249DL640-249$12.00
421Kurt Chip Guard, Short - DL640-248DL640-248$8.00
161Kurt Retaining Ring - DL640-231DL640-231$5.00
331Kurt Friction Clamp - DL640-225A-PDL640-225A-P$16.00
61Kurt Retaining Ring - DL640-217DL640-217$5.00
113Kurt Clutch Spring, Stainless - DL640-215DL640-215$5.00
171Kurt Holding Block - DL640-212DL640-212$72.00
362Kurt Movable Jaw - DL640-2DL640-2$219.00
218Kurt Compression Spring - DL640-197DL640-197$5.00
101Kurt Snap Ring, Trarc, Ext. - DL640-147BDL640-147B$5.00
151Kurt O-Ring, Metric - DL640-129DL640-129$5.00
241Kurt O-Ring, 1-3/16 ID, 1-5/16 - DL640-128DL640-128$5.00
21Kurt End Cap - DL600-218DL600-218$9.00
91Kurt Wiper Ring - DL430-331DL430-331$6.00
372Kurt Spherical Segment - D60-9D60-9$8.00
394Kurt Jaw Plate, 6" - D60-7D60-7$46.00
193Kurt Thrust Bearing Washer - D60-42D60-42$6.00
201Kurt Thrust Bearing - D60-41D60-41$6.00
382Kurt SLT Spring Pin .062 X 5/16 - 04-400804-4008$5.00
121Kurt Dowel Pin, 3/16 DIA - 04-003004-0030$5.00
291Kurt Screw, BHCS, 3/8-16 X 1/2 - 03-014803-0148$5.00
352Kurt Screw, SHSS, 1/2-13 X 1 LG - 01-333401-3334$21.00
251Kurt Screw, SHSS, #10-32 X 1/4 - 01-086101-0861$5.00
404Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$5.00
434Kurt Screw, 1/2-13NC X 3/4 Long - 00-141400-1414$5.00
482Kurt Screw, SHCS, 3/8-16 X 2 Long - 00-136100-1361$5.00
471Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$5.00
