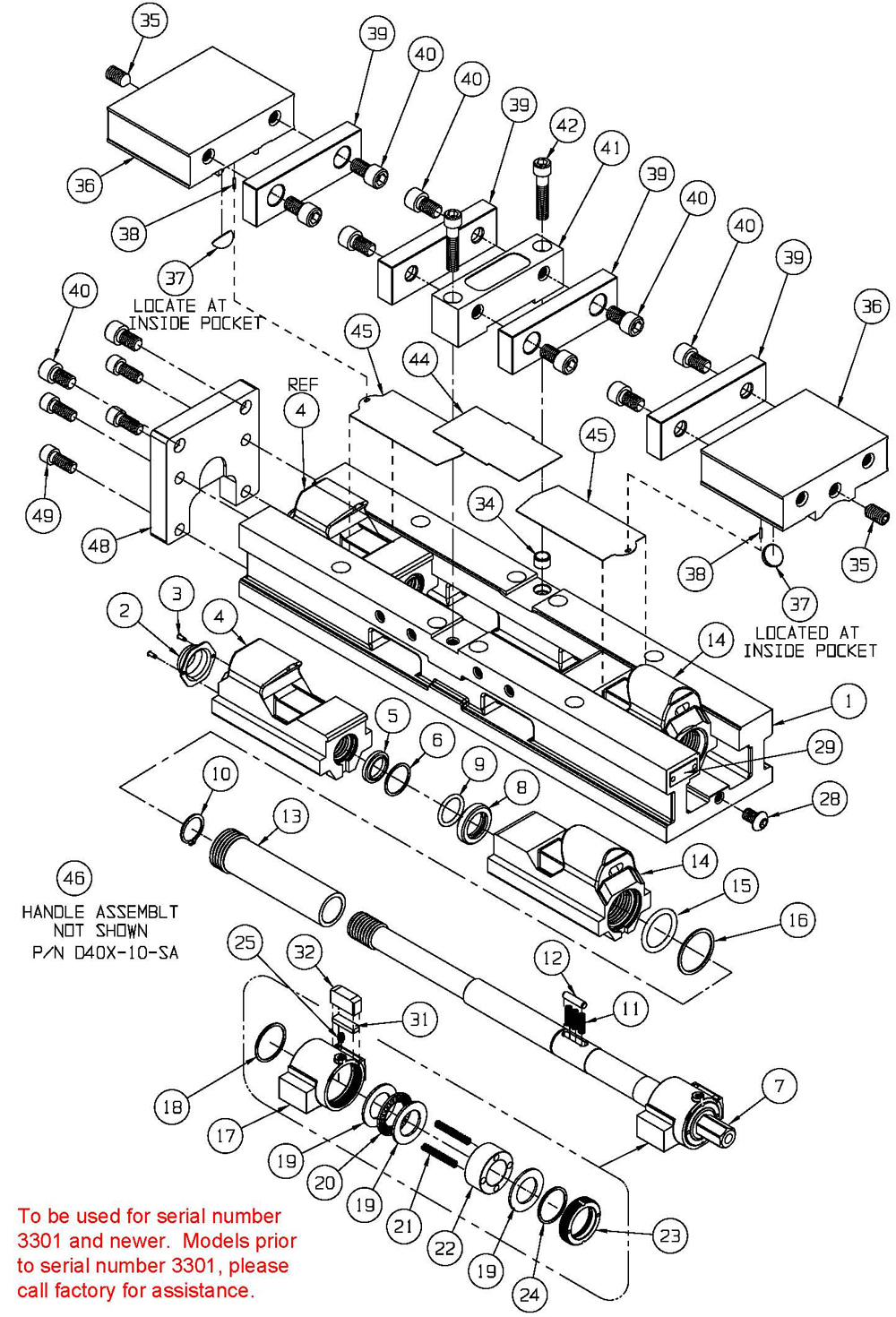

DL430 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
Kurt Handle Assembly - DL430-10-SADL430-10-SA$98.00
1Kurt Handle Assembly - D40XI-10-SAD40XI-10-SA$43.00
Kurt Screw - DL430-5A-CPDL430-5A-CP$133.00
Kurt DL430 Repair Kit - DL430-KIT2 (Serial Numbers 3301 and Greater)DL430-KIT2$47.00
Kurt Nut & Screw Assembly - DL430-3A-SADL430-3A-SA$701.00
Kurt - DL430 Repair Kit - KIT1 (Serial Numbers 1 - 3300)DL430-KIT1$46.00
41Kurt Nut, Rear - DL430-3R-SADL430-3R-SA$158.00
51Kurt Wiper Ring - DL430-97DL430-97$6.00
61Kurt Retaining Ring - DL430-217DL430-217$6.00
73Kurt Thrust Bearing Washer, .060-.063 - DL400-42ADL400-42A$7.00
71Kurt Screw - DL430-5BDL430-5B$111.00
81Kurt Thrust Bearing - D40-41D40-41$7.00
81Kurt O-Ring, Threaded Spacer - DL430-61DL430-61$34.00
111Kurt O-Ring, Buna N, #021 - DL430-128DL430-128$5.00
141Kurt Machined, Nut, Front - DL430-3FA-SADL430-3FA-SA$181.00
151Kurt Retaining Ring - DL430-231DL430-231$5.00
164Kurt Screw, Drive, #2 X .25 - 07-023007-0230$5.00
171Kurt Holding Block - DL430-212DL430-212$57.00
181Kurt O-Ring, Buna N, #022 - DL430-68DL430-68$5.00
201Kurt End Cap - DL400-218DL400-218$11.00
251Kurt Screw, Set - 01-185101-1851$5.00
271Kurt Locator - DL430-278DL430-278$10.00
282Kurt Screw, SHCS, 5/16-18 X 1-1/2 - 00-132800-1328$5.00
281Kurt O-Ring, .750 I.D. X .937 O.D. - DL430-127DL430-127$5.00
291Kurt Spiral Retaining Ring - DL430-147ADL430-147A$5.00
301Kurt Screw, BHCS, 5/16-18 X 1/2 - 03-014103-0141$5.00
303Kurt Clutch Spring, Stainless - DL640-215DL640-215$5.00
311Kurt Spring, Polyeurathane, #90A - DL430-311ADL430-311A$9.00
311Kurt SLT Spring Pin .062 X 5/16 - 04-400804-4008$5.00
311Kurt Clutch - DL430-273ADL430-273A$48.00
321Kurt Friction Clamp - DL430-225A-PDL430-225A-P$16.00
331Kurt O-Ring, 1.0 I.D. X 1.25 O.D. - DL430-129DL430-129$5.00
372Kurt Movable Jaw - DL430-2DL430-2$131.00
382Kurt Spherical Segment - D40-9D40-9$6.00
404Kurt Jaw Plate, 4" - D40-7D40-7$48.00
401Kurt Collar, Threaded - DL430-91-PDL430-91-P$33.00
412Kurt Chip Guard, Long, Movable - DL430-249DL430-249$16.00
421Kurt Collar - DL430-8ADL430-8A$19.00
438Kurt Screw, SHCS, 3/8-16 X 5/8 - 00-135000-1350$5.00
434Kurt Spring - DL430-197DL430-197$5.00
441Kurt Stationary Jaw - DL430-6-WIPDL430-6-WIP$121.00
461Kurt Dowel Pin, 3/16 DIA - 04-003004-0030$5.00
481Kurt Chip Guard, Short, Stationary - DL430-248DL430-248$11.00
