DX8R Replacement Parts

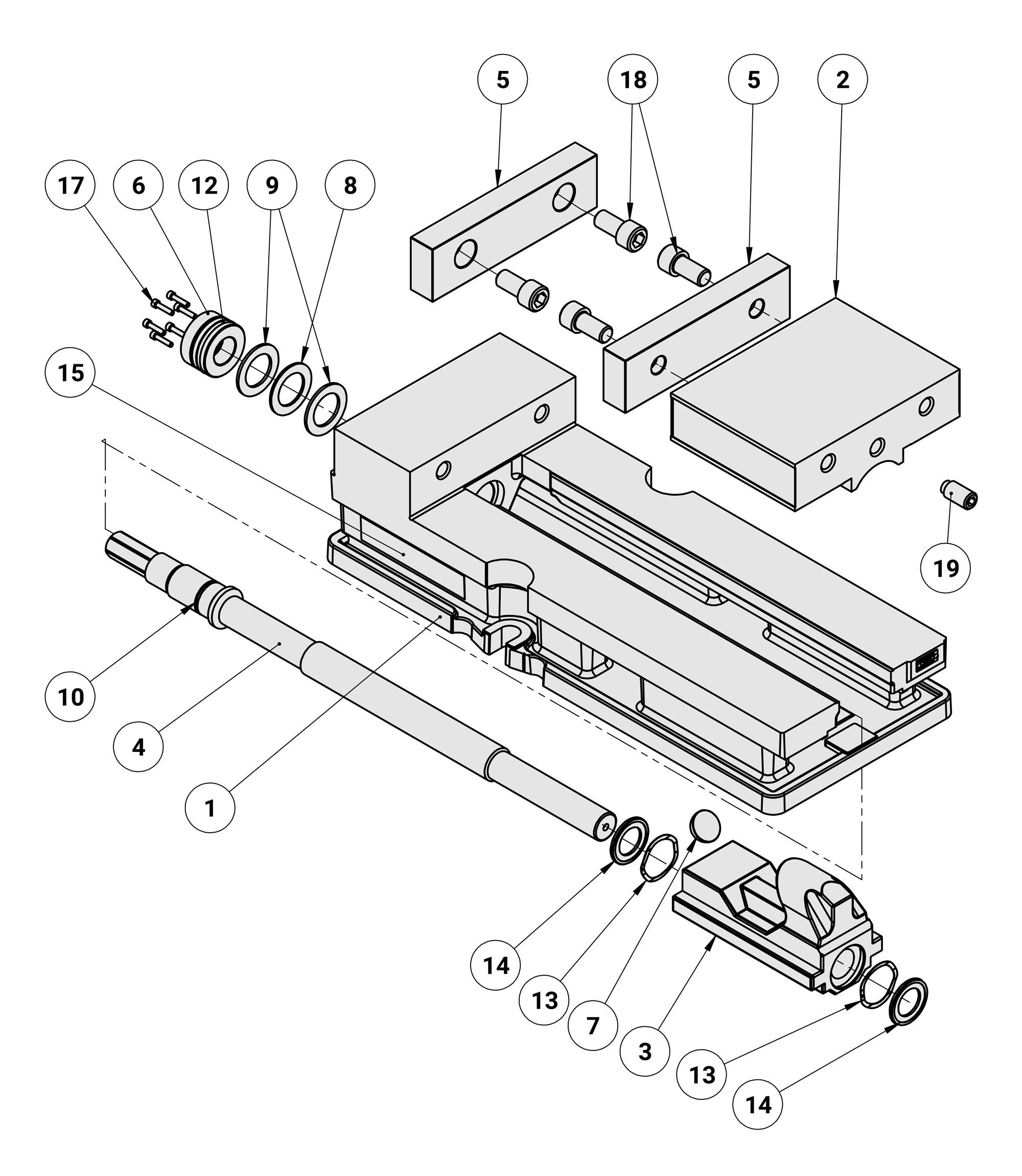

Kurt DX8R Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
1Kurt DX8 Repair Kit - DX8-KITDX8-KIT$30.00
132Kurt Wave Spring - DX8-169DX8-169$7.00
31Kurt Nut with Internal Brush Seal - DX8R-3DX8R-3$150.00
92Kurt Thrust Bearing Washer - 3800V-423800V-42$15.00
81Kurt Thrust Bearing - 3800V-413800V-41$13.00
21Kurt Movable Jaw - DX8-2DX8-2$372.00
212Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$7.00
41Kurt Screw - 3810V-5A-CP3810V-5A-CP$394.00
61Kurt Retaining Nut, 2 piece - 3800V-83800V-8$73.00
101Kurt O-Ring, #121 - 3800V-993800V-99$7.00
121Kurt O-Ring, #224 - 3800V-1283800V-128$7.00
142Kurt Internal Brush Seal - PT800-211PT800-211$13.00
221Kurt Chip Guard - D80XL-248D80XL-248$13.00
71Kurt Spherical Segment - D80-9D80-9$11.00
51Kurt Jaw Plate, 8" - D80-7D80-7$143.00
231Kurt Handle Assembly - D80I-10-SAD80I-10-SA$102.00
201Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$22.00
194Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$9.00
186Kurt Screw, SHCS, #8-32 X 3/4 - 00-119700-1197$7.00
