DX8HR Replacement Parts

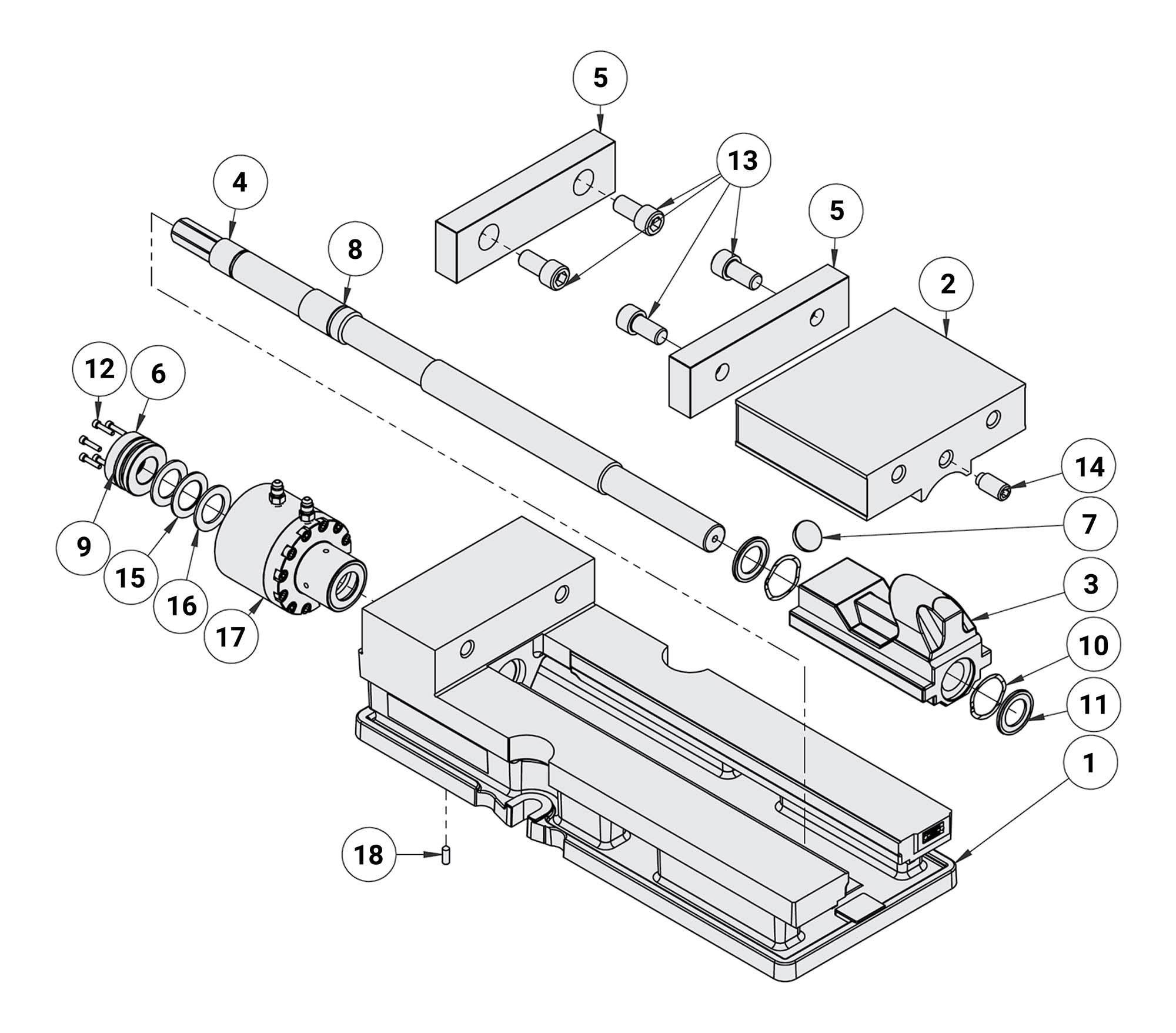

Kurt DX8HR Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
102Kurt Wave Spring - DX8-169DX8-169$7.00
31Kurt Nut with Internal Brush Seal - DX8R-3DX8R-3$150.00
171Kurt Hydraulic Clamping Unit - KHU8KHU8$1,378.00
21Kurt Movable Jaw - DX8-2DX8-2$372.00
41Kurt Screw - 3810H-5-CP3810H-5-CP$595.00
61Kurt Retaining Nut, 2 piece - 3800V-83800V-8$73.00
81Kurt O-Ring, #121 - 3800V-993800V-99$7.00
91Kurt O-Ring, #224 - 3800V-1283800V-128$7.00
112Kurt Internal Brush Seal - PT800-211PT800-211$13.00
71Kurt Spherical Segment - D80-9D80-9$11.00
52Kurt Jaw Plate, 8" - D80-7D80-7$143.00
162Kurt Thrust Bearing Washer - D80-42D80-42$10.00
151Kurt Thrust Bearing - D80-41D80-41$9.00
141Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$22.00
181Kurt Screw, SHSS, 1/4-20 X 3/4 - 01-327801-3278$9.00
134Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$9.00
126Kurt Screw, SHCS, #8-32 X 3/4 - 00-119700-1197$7.00
