DX6R Replacement Parts

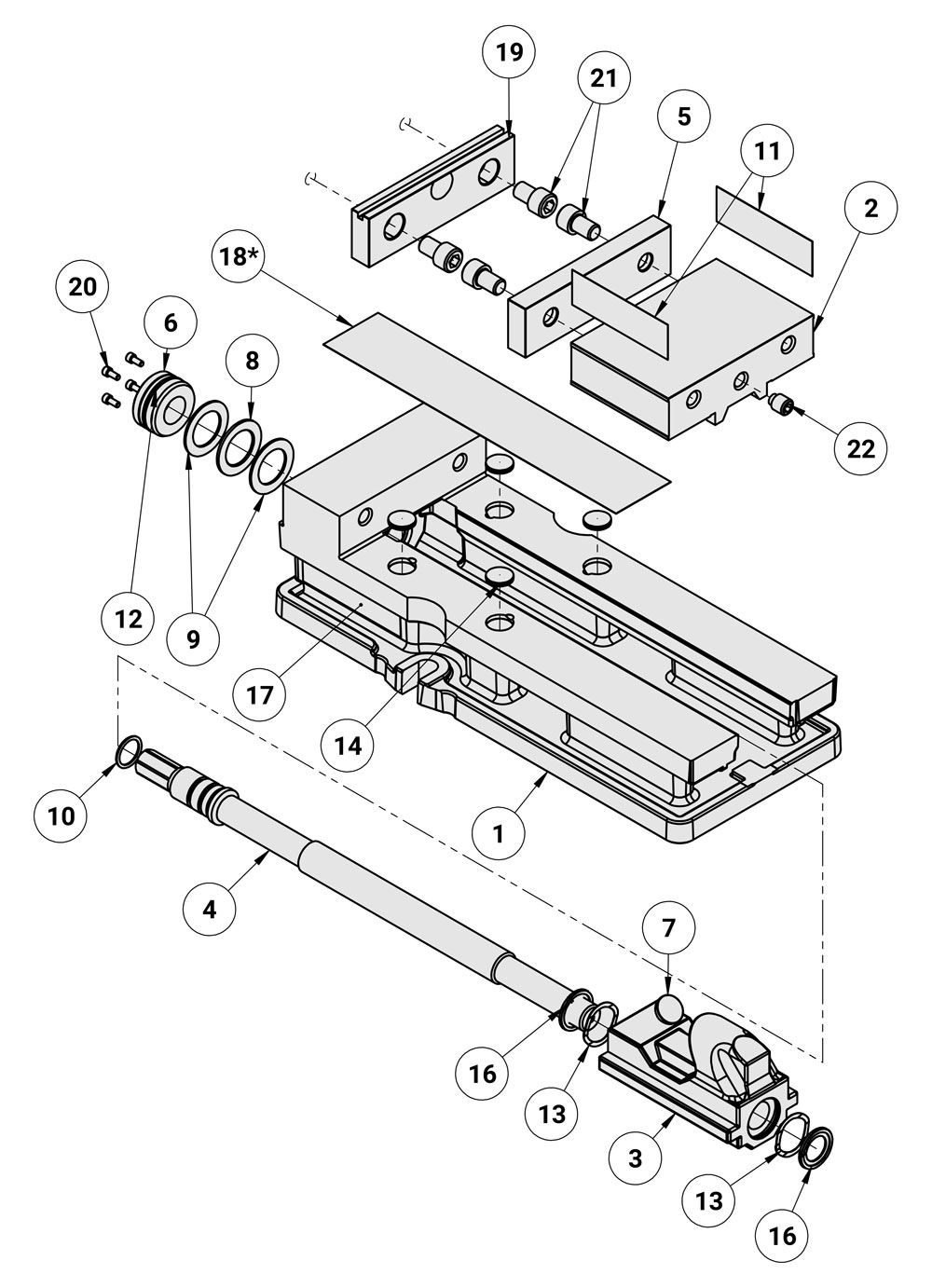

<img src="https://www.kurtworkholding.com/wp-content/uploads/2025/07/Kurt_DX6R_Replacement-Parts-Diagram.jpg" alt="Kurt DX6R Replacement Parts Diagram" width="1000" height="1382" class="alignnone size-full wp-image-28088" />

CalloutQty NeededNamePart No.PriceBuy
0NUT, MACHINED REVERSED - DX6R-3DX6R-3$85.00
0DX6R-5 REVERSE SCREWDX6R-5$78.00
0Kurt Wave Spring - DX6-169DX6-169$6.00
0Kurt Set Screw - 01-313401-3134$7.00
0Kurt Movable - DX6-2DX6-2$146.00
0Kurt Workstop Assembly - WSRL46WSRL46$23.00
0Kurt Thrust Bearing - D80-41D80-41$7.00
0Kurt Internal Brush Seal - D688-211D688-211$10.00
0Kurt Spherical Segment - D60-9D60-9$9.00
0Kurt Jaw Plate, 6" - D60-7D60-7$48.00
0Kurt GrooveLock 6" Jaw Plate - D60-315-PD60-315-P$52.00
0Kurt Retaining Nut, 2-Piece (Reverse) - 3610V-83610V-8$54.00
0Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$6.00
0Kurt Thrust Washer - 3600V-423600V-42$7.00
0Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$6.00
0Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$6.00
0Kurt Screw, SHSS, 1/4-20 X 3/4 - 01-327801-3278$7.00
0Kurt Screw, 1/2-13NC X 3/4 Long - 00-141400-1414$6.00
0Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
