DX6H Replacement Parts

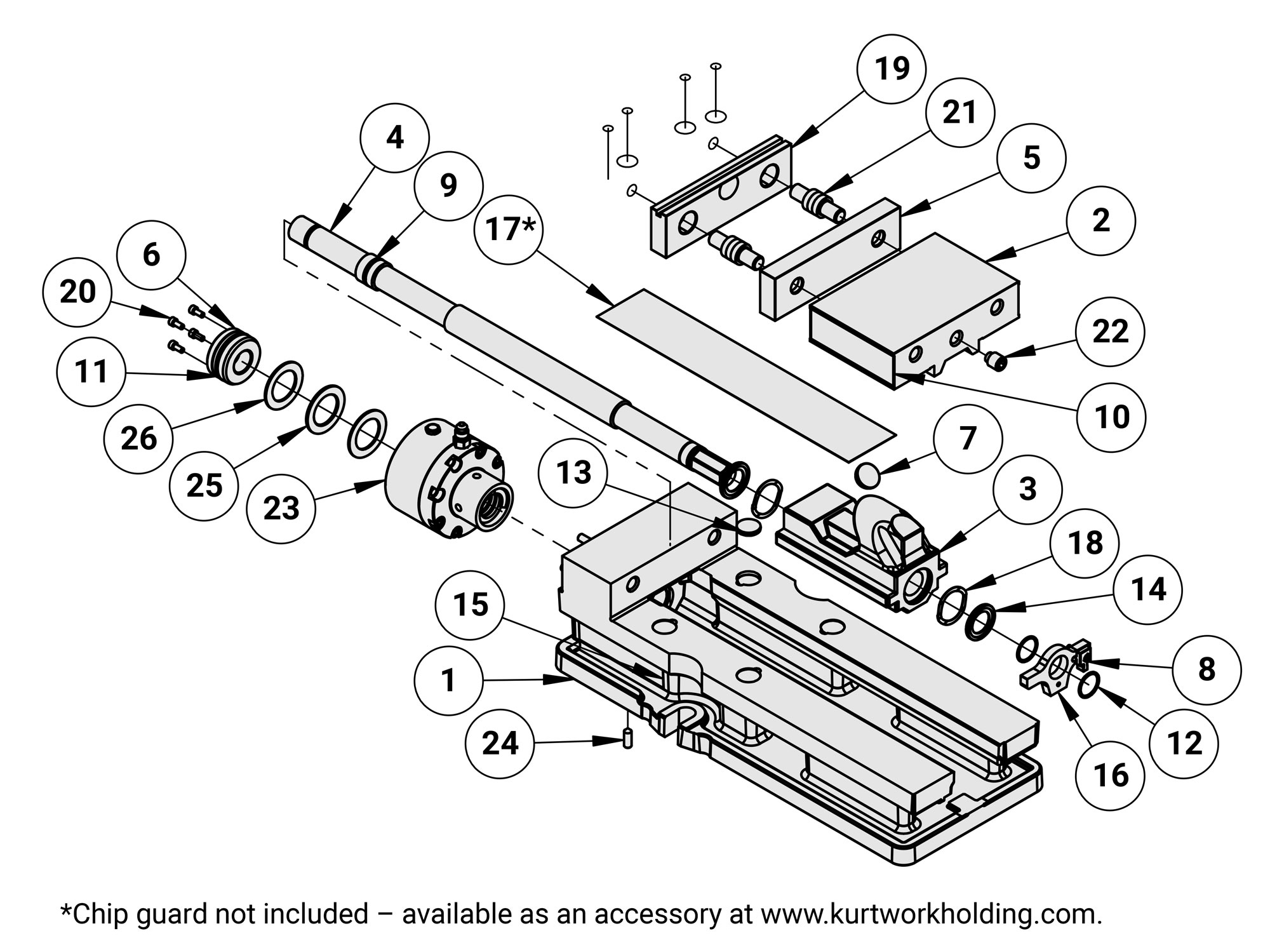

Kurt DX6H Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
102DX6-111 DX6 LABELDX6-111$7.00
41Kurt Screw - DX6H-5-CPDX6H-5-CP$310.00
231Kurt 6" Hydraulic Unit - KHU6KHU6$1,002.00
182Kurt Wave Spring - DX6-169DX6-169$7.00
221Kurt Set Screw - 01-313401-3134$9.00
161Kurt Screw Support - DX6-224-CPDX6-224-CP$34.00
31Kurt Nut - DX6-3DX6-3$98.00
21Kurt Movable - DX6-2DX6-2$168.00
81Kurt Workstop Assembly - WSRL46WSRL46$27.00
251Kurt Thrust Bearing - D80-41D80-41$9.00
142Kurt Internal Brush Seal - D688-211D688-211$12.00
71Kurt Spherical Segment - D60-9D60-9$11.00
51Kurt Jaw Plate, 6" - D60-7D60-7$56.00
191Kurt GrooveLock 6" Jaw Plate - D60-315-PD60-315-P$60.00
91Kurt O-Ring, Buna N, #117 - 3600V-993600V-99$7.00
61Kurt Retaining Nut, 2-Piece - 3600V-8-P3600V-8-P$25.00
262Kurt Thrust Washer - 3600V-423600V-42$9.00
134Kurt Protective Plug Assembly - 3600V-191-SA3600V-191-SA$7.00
122Kurt Spiral Retaining Ring - 3600V-1473600V-147$7.00
111Kurt O-Ring, Buna N #129 - 3600V-1283600V-128$7.00
241Kurt Screw, SHSS, 1/4-20 X 3/4 - 01-327801-3278$9.00
214Kurt Screw, 1/2-13NC X 3/4 Long - 00-141400-1414$7.00
204Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$7.00
