DX4H Replacement Parts

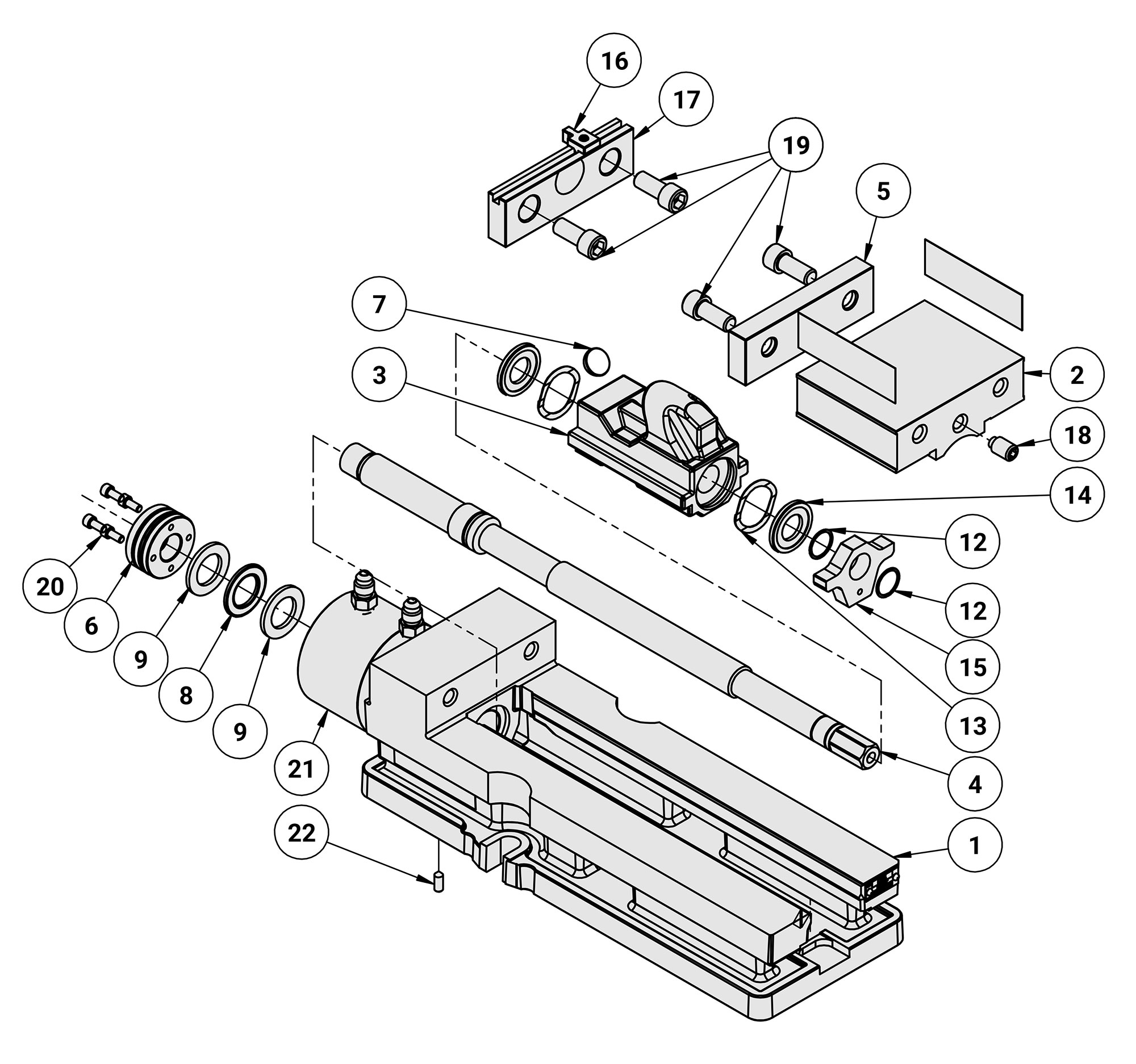

Kurt DX4H Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
0Kurt 4" Hydraulic Unit - KHU4-PKHU4-P$1,432.00
21DX4 MOVABLE JAW - DX4-2DX4-2$170.00
0Kurt Nut, Reverse - DX4R-3DX4R-3$52.00
132Kurt Wave Spring - DX4-169DX4-169$7.00
31Kurt Nut - DX4-3DX4-3$58.00
221Kurt SHSS 10-24 x .625 - 01-326501-3265$13.00
194Kurt Screw, SHCS, 3/8-16 X 7/8 Long - 00-135300-1353$7.00
41Kurt Screw - 3400H-53400H-5$144.00
122Kurt Spiral Retaining Ring - 3400V-1473400V-147$7.00
181Kurt SHSS HDOG 3/8-16 x 0.625 - 01-390601-3906$24.00
61Kurt Retaining Nut, 2 piece - 3400V-8-CP3400V-8$47.00
151Kurt Screw Support - 3400V-224-CP3400V-224$38.00
111Kurt O-Ring, Buna, #125 - HDHLM4-96HDHLM4-96$7.00
92Kurt Thrust Bearing Washer - D40-42D40-42$10.00
171Kurt Jaw Plate w/ Groove - D40-315D40-315$87.00
161Kurt Workstop Assembly - WSRL46WSRL46$27.00
142Kurt Internal Brush Seal - PT400-211PT400-211$12.00
71Kurt Spherical Segment - D40-9D40-9$9.00
51Kurt Jaw Plate, 4" - D40-7D40-7$58.00
81Kurt Thrust Bearing - D40-41D40-41$10.00
211Kurt Hydraulic Unit Assembly - KHU4KHU4$1,786.00
101Kurt O-Ring, #115 - 3600AA-683600AA-68$7.00
204Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$7.00
