DX4 Replacement Parts

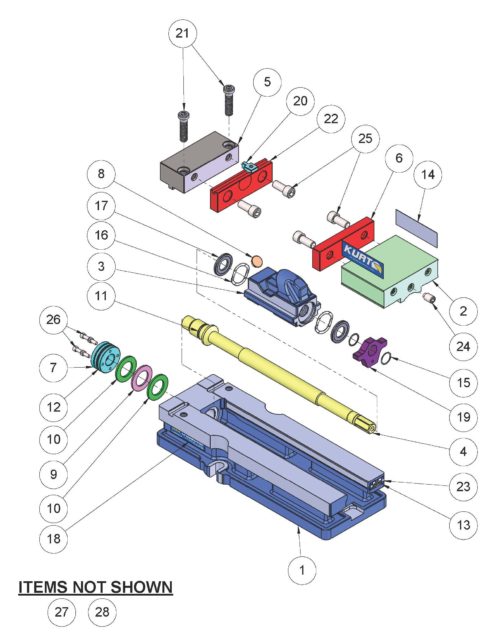

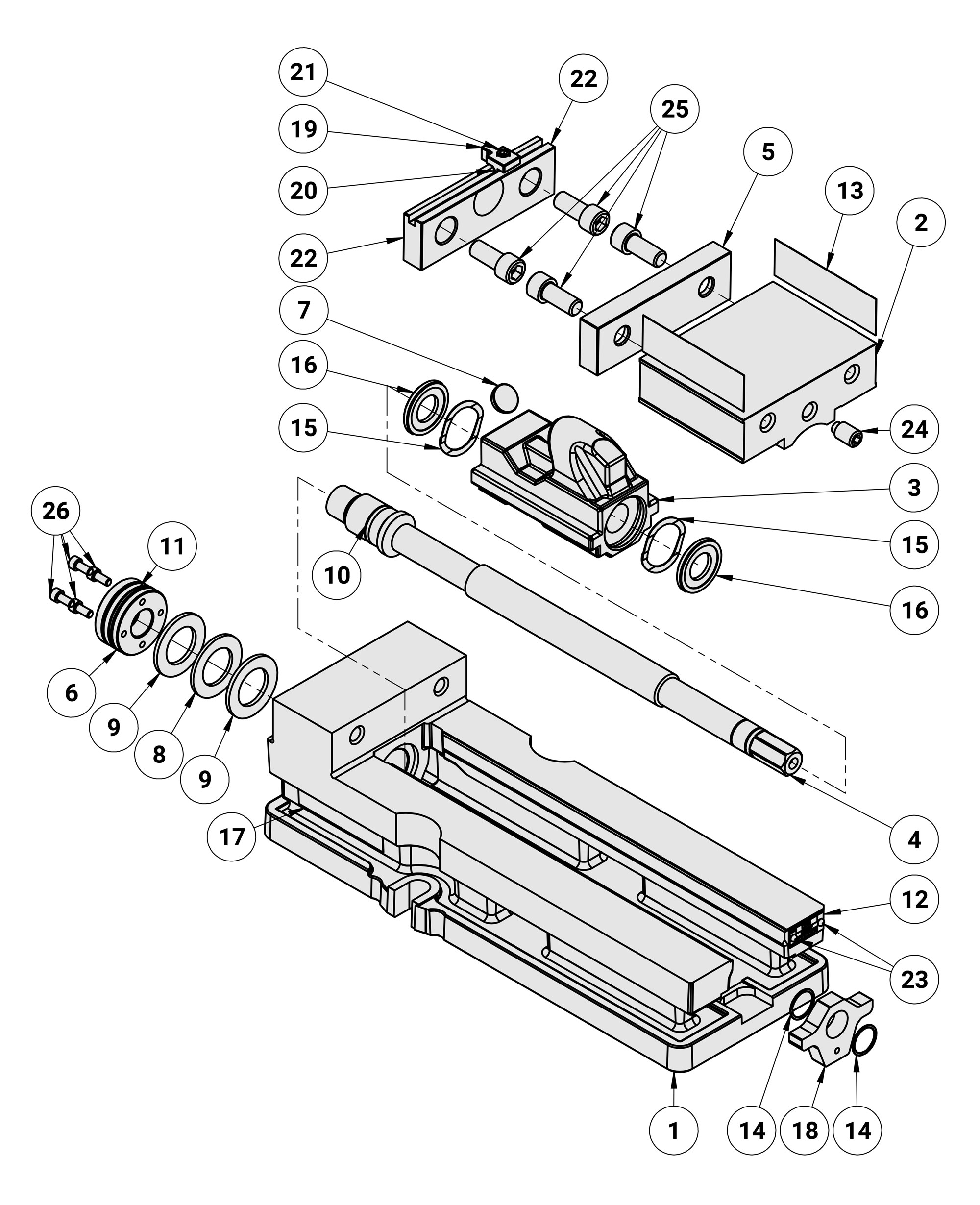

Kurt DX4 Replacement Parts Diagram

CalloutQty NeededNamePart No.PriceBuy
132DX4-111 DX4 LABELDX4-111$6.00
21DX4 MOVABLE JAW - DX4-2DX4-2$130.00
0Kurt DX4 Repair Kit - DX4-KITDX4-KIT$21.00
0Kurt LHSHCS 3/8-16 X 1.50 LG - 00-335900-3359$6.00
81Kurt Thrust Bearing - 3400V-413400V-41$6.00
152Kurt Wave Spring - DX4-169DX4-169$6.00
31Kurt Nut - DX4-3DX4-3$50.00
0Kurt Rear Stationary - DX4-6DX4-6$147.00
0Kurt SHSS HDOG 3/8-16 x .625 - 3400V-113400V-11$12.00
271Kurt Handle Assembly - D40I-10-SAD40I-10-SA$41.00
232Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
92Kurt Thrust Washer - 3400V-423400V-42$6.00
254Kurt Screw, SHCS, 3/8-16 X 7/8 Long - 00-135300-1353$6.00
142Kurt Spiral Retaining Ring - 3400V-1473400V-147$6.00
241Kurt SHSS HDOG 3/8-16 x 0.625 - 01-390601-3906$24.00
61Kurt Retaining Nut, 2 piece - 3400V-8-CP3400V-8$47.00
41Kurt Screw - 3400V-5A3400V-5A$108.00
181Kurt Screw Support - 3400V-224-CP3400V-224$38.00
111Kurt O-Ring, Buna, #125 - HDHLM4-96HDHLM4-96$6.00
201Kurt Replacement Clamp Assembly - WSRL46-86-SAWSRL46-86-SA$18.00
221Kurt Jaw Plate w/ Groove - D40-315D40-315$75.00
191Kurt Workstop Assembly - WSRL46WSRL46$23.00
161Kurt Internal Brush Seal - PT400-211PT400-211$10.00
21Kurt Movable Jaw - DL430-2DL430-2$137.00
281Kurt Chip Guard, Long - DL400-249DL400-249$9.00
71Kurt Spherical Segment - D40-9D40-9$7.00
51Kurt Jaw Plate, 4" - D40-7D40-7$50.00
101Kurt O-Ring, #115 - 3600AA-683600AA-68$6.00
211Kurt Screw, SHCS, #8-32 X 3/4 - 00-119700-1197$6.00
264Kurt Screw, SHCS, #8-32 X 3/8 - 00-119100-1191$6.00
