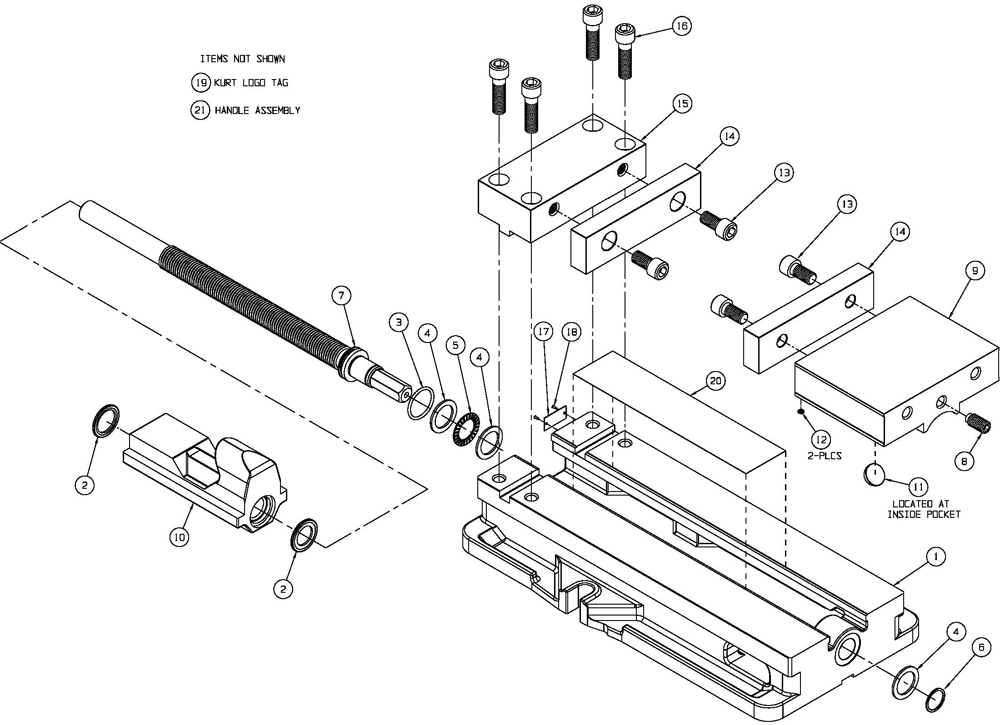

D810 Replacement Parts

Note: Vise Models prior to serial number 9500, please call Factory for assistance

CalloutQty NeededNamePart No.PriceBuy
0Kurt Nut & Screw Subassembly - D810-3A-SAD810-3A-SA$295.00
182Kurt Screw, Drive, #2 X 0.25 - 07-023007-0230$6.00
Kurt Nut with Internal Brush Seal - DX8-3DX8-3$100.00
31Kurt O-Ring, #221 - D810-68D810-68$6.00
61Kurt Spiral Retaining Ring - D810-217D810-217$7.00
22Kurt Internal Brush Seal - PT800-211PT800-211$11.00
0Kurt D810 Repair Kit - D810-KITD810-KIT$36.00
151Kurt Stationary Jaw - D810-6AD810-6A$342.00
71Kurt Screw - D810-5AD810-5A$130.00
101Kurt Nut - D810-3A OBSOLETE (replacement order: DX8-3)D810-3A
91Kurt Movable Jaw - D810-2D810-2$346.00
201Kurt Chip Guard - D80XL-248D80XL-248$11.00
111Kurt Spherical Segment - D80-9D80-9$9.00
142Kurt Jaw Plate, 8" - D80-7D80-7$124.00
43Kurt Thrust Bearing Washer - D80-42D80-42$8.00
51Kurt Thrust Bearing - D80-41D80-41$7.00
211Kurt Handle Assembly - D80I-10-SAD80I-10-SA$88.00
122Kurt O-Ring, Buna N, 008 - 225-01225-01$6.00
81Kurt Screw, SHSS, 5/8-11 UNRC X 1-1/4 - 01-395301-3953$19.00
164Kurt Screw, SHCS, 5/8-11 X 2-1/4 - 00-148600-1486$7.00
134Kurt Screw, SHCS, 5/8-11 X 1-1/4 - 00-148100-1481$7.00
