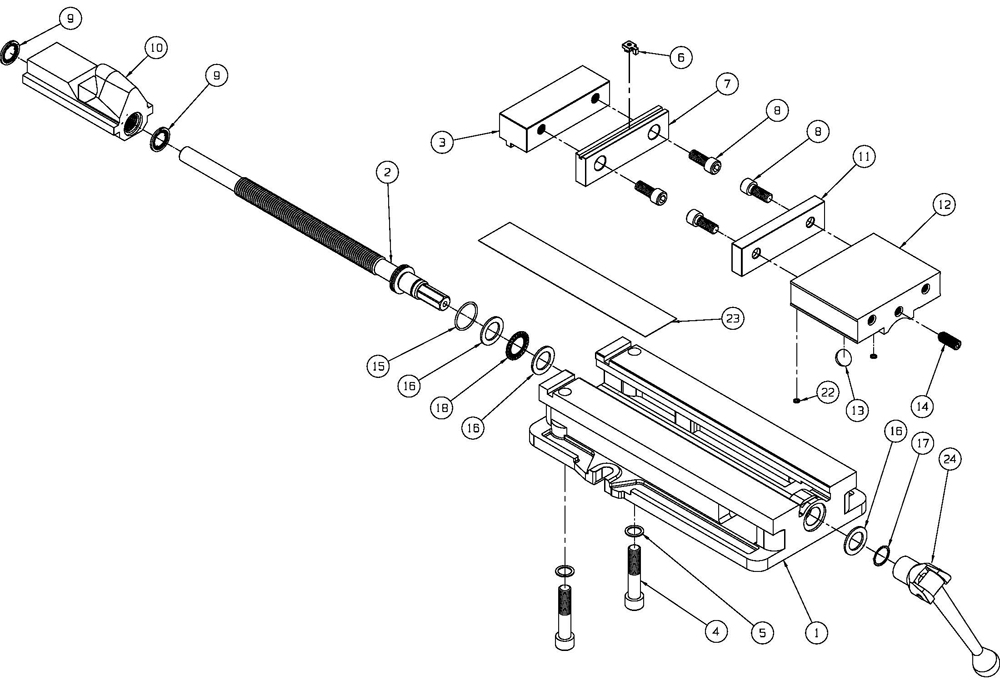

D688 Replacement Parts

CalloutQty NeededNamePart No.PriceBuy
1Kurt Handle Assembly - D60I-10-SAD60I-10-SA$38.00
0Kurt D688 Repair Kit - D688-KITD688-KIT$27.00
21Kurt Screw - D688-5D688-5$101.00
31Kurt Stationary Jaw - D675-6BD675-6B$154.00
42Kurt Screw, SHCS, 5/8-11 X 3 Long - 00-148900-1489$6.00
52Kurt Lock Washer, .699 X .051 - 06-301606-3016$5.00
52Kurt O-Ring, Buna N, 008 - 225-01225-01$5.00
61Kurt Jaw Plate, 6" - D60-7D60-7$46.00
81Kurt Spherical Segment - D60-9D60-9$8.00
101Kurt Nut - D688-3D688-3$81.00
111Kurt Workstop Assembly - WSRL46WSRL46$22.00
121Kurt Movable Jaw - D675-2D675-2$197.00
133Kurt Thrust Bearing Washer - D60-42D60-42$6.00
141Kurt Thrust Bearing - D60-41D60-41$6.00
141Kurt Screw, SHSS, 1/2-13 X 1-1/4 - 01-393801-3938$7.00
151Kurt O-Ring, Buna N, #124 - D675-68D675-68$5.00
162Kurt Screw, Drive, #2 X .25 - 07-023007-0230$5.00
171Kurt Spiral Retaining Ring - D675-217AD675-217A$6.00
192Kurt Internal Brush Seal - D688-211D688-211$9.00
241Kurt GrooveLock 6" Jaw Plate - D60-315-PD60-315-P$50.00
544Kurt Screw, SHCS, 1/2-13 X 1-1/4 - 00-141900-1419$5.00
